TSB
13-3-8
  • 4X4 - REAR OF VEHICLE SITS LOWER THAN EXPECTED UNDER LIGHT LOADS
Publication Date: March 13, 2013

FORD:
2011-2013 F-250

ISSUE:

Some 2011-2013 F-250 Super Duty 4X4 vehicles may exhibit a customer concern of lower than expected rear suspension height under light loads.

ACTION:

Follow the Service Procedure steps to correct the concern.

SERVICE PROCEDURE

Rear ride height may be increased by adding a 10 cm (4") spacer block, along with additional components. Raising rear ride height could affect fifth wheel trailer compatibility.

  1. Lower the rear axle and remove the original 5 cm (2") rear spring spacers. Discard spacer, U-bolts, and nuts. Refer to Workshop Manual (WSM), Section 204-02.
    1. Refer to parts list chart for the correct part and vehicle application(s).
  2. Install 10 cm (4") rear spring spacers, using new U-bolts and nuts.
  3. Raise rear axle and torque U-bolt nuts in proper sequence. Refer to WSM, Section 204-02.
  4. Replace the rear shock absorbers. Refer WSM, Section 204-02.
  5. If the vehicle is equipped with a two-piece driveshaft, replace the driveshaft and center bearing bracket. Refer to WSM, Section 205-01 and proceed to Step 7.
    1. Check driveline angles, if required. Refer to WSM, Section 205-00.
    2. Failure to update the center bearing bracket, if required, may result in driveline shudder.
  6. If the vehicle is equipped with a one-piece driveshaft, replace the driveshaft. Refer WSM Section 204-02 and proceed to Step 7.
  7. If the vehicle is equipped with a camper package with rear suspension stabilizer bar, replace both rear stabilizer bar links. Refer WSM, Section 204-02 and proceed to Step 8.
  8. Adjust headlamp aim. Refer to WSM, Section 417-01.

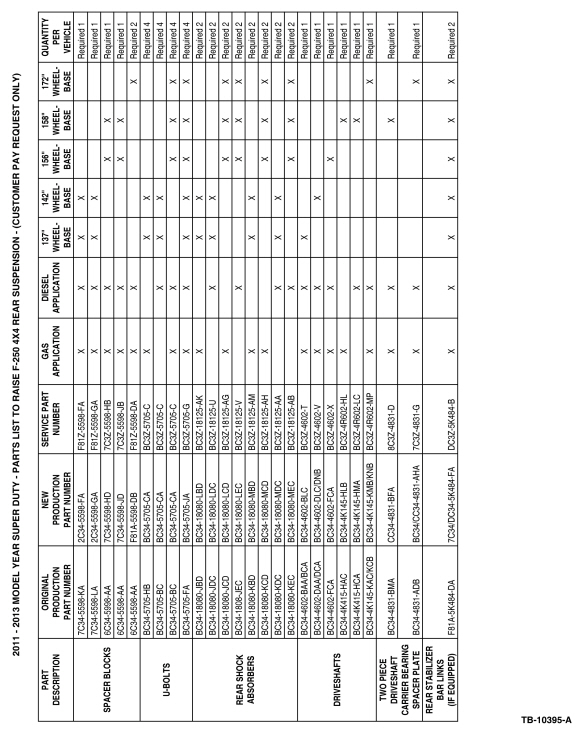

    NOTE:SEE APPLICATION CHART LOCATED AT THE END OF THE ARTICLE.


PART NUMBER PART NAME
F81Z-5598-FA Spacer Block (RH)
F81Z-5598-GA Spacer Block (LH)
7C3Z-5598-HB Spacer Block
7C3Z-5598-JB Spacer Block
F81Z-5598-DA Spacer Block
BC3Z-5705-C U-Bolts
BC3Z-5705-G U-Bolts
BC3Z-18125-AK Rear Shock
BC3Z-18125-U Rear Shock
BC3Z-18125-AG Rear Shock
BC3Z-18125-V Rear Shock
BC3Z-18125-AM Rear Shock
BC3Z-18125-AH Rear Shock
BC3Z-18125-AA Rear Shock
BC3Z-18125-AB Rear Shock
BC3Z-4602-T Driveshaft
BC3Z-4602-V Driveshaft
BC3Z-4602-X Driveshaft
BC3Z-4R602-HL Driveshaft
BC3Z-4R602-LC Driveshaft
BC3Z-4R602-MP Driveshaft
8C3Z-4831-D Carrier Plate
7C3Z-4831-G Carrier Plate
DC3Z-5K484-B Bar Links

WARRANTY STATUS:

Information Only




Figure 1 - Article 13-3-8
