Capacities and Specifications - 1.5L EcoBoost™
Use oil and fluid that meets the defined specification and viscosity grade.
If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in:- Component damage that your vehicle warranty does not cover.
- Longer engine cranking periods.
- Increased emission levels.
- Reduced engine performance.
- Reduced fuel economy.
- Reduced brake performance.
Air Conditioning System
WARNING:
The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury. |
Capacities
| Variant | Refrigerant | Refrigerant Oil |
|---|---|---|
| All. | 18 oz (0.51 kg) | 5.24 fl oz (155 ml) |
Materials
| Name | Specification |
|---|---|
| R-1234yf Refrigerant YN-33-A | WSS-M17B21-A |
| Motorcraft® R-1234yf Refrigerant PAG Oil YN-35 | WSS-M2C300-A2 |
Automatic Transmission
Note:
Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid.The use of any other fluid could cause transmission damage.
Capacities
| Variant | Quantity |
|---|---|
| All. | 9.0 qt (8.5 L)1 |
1 Approximate dry fill capacity. Actual amount could vary during fluid changes.
Materials
| Name | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC | WSS-M2C938-A |
Engine Coolant
Capacities
| Variant | Quantity |
|---|---|
| All. | 10.9 qt (10.3 L) |
Materials
| Name | Specification |
|---|---|
| Motorcraft® Yellow Prediluted Antifreeze/Coolant VC-13DL-G | WSS-M97B57-A2 |
Engine Oil

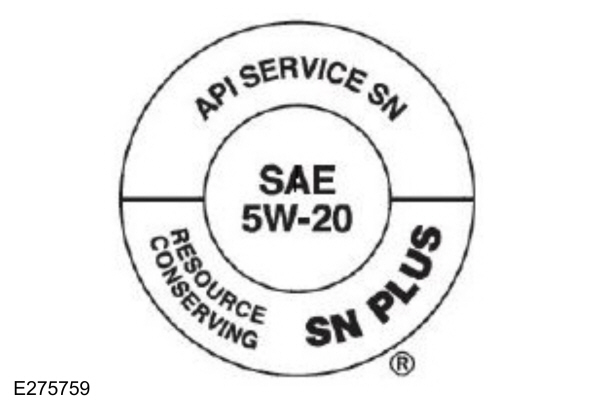

An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN PLUS requirements and display the API Certification Mark for gasoline engines.
Capacities
| Variant | Including the Oil Filter |
|---|---|
| All. | 4.3 qt (4.05 L) |
Materials
| Name | Specification |
|---|---|
| Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil XO-5W20-Q1SP | WSS-M2C945-B1 |

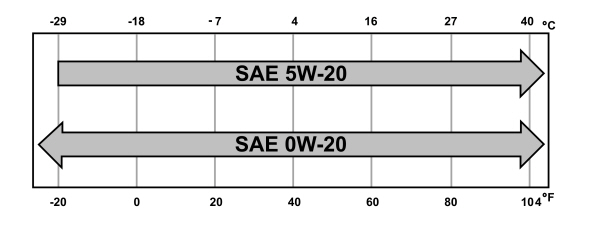

Alternative Engine Oil for Extremely Cold Climates
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches
-22.0 °F (-30 °C) or below.
Materials
| Name | Specification |
|---|---|
| Engine Oil - SAE 0W-20 - Synthetic Blend Motor Oil XO-0W20-Q1SP | WSS-M2C947-B1 |
Fuel Tank
Capacities
| Variant | Quantity |
|---|---|
| All. | 16.5 gal (62.5 L) |
Grease
Materials
| Name | Specification |
|---|---|
| Motorcraft® Multi-Purpose Grease Spray XL-5-A | ESB-M1C93-B |
Hydraulic Brake System
Note:
We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid could cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials could result in brake system damage and possible failure.
Materials
| Name | Specification |
|---|---|
| Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20 | WSS-M6C65-A2 |
Locks
Materials
| Name | Specification |
|---|---|
| Motorcraft® Penetrating and Lock Lubricant XL-1 | - |
Washer Reservoir
Capacities
| Variant | Quantity |
|---|---|
| All. | Fill as required. |
Materials
| Name | Specification |
|---|---|
| Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 | WSS-M14P19-A |
