Fuse Box Locations

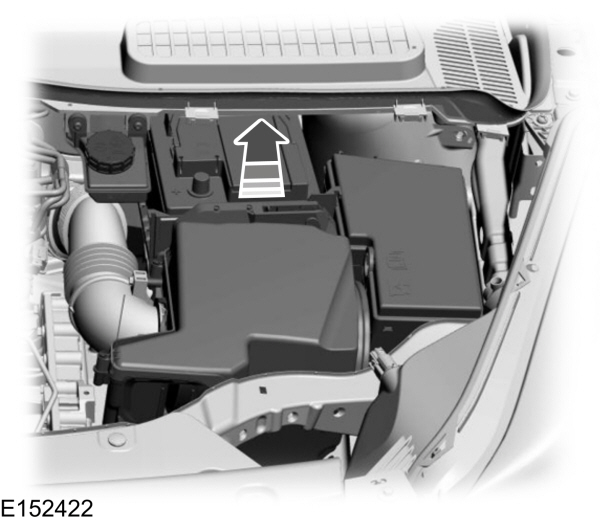

Pre-Fuse Box
Your vehicle has a pre-fuse box located in the engine compartment attached to the positive battery post. This box contains several high current fuses. If replacement of these high current fuses is required, see an authorized dealer.
Engine Compartment Fuse Box
WARNING:
Always disconnect the battery before servicing high current fuses.
WARNING:
To reduce risk of electrical shock, always replace the cover to the engine compartment fuse box before reconnecting the battery or refilling fluid reservoirs. |
The engine compartment fuse box has high-current fuses that protect your vehicle's main electrical systems from overloads.
When you disconnect and reconnect the battery, you will need to reset some features. See
Changing the 12V Battery.
Lift the release lever at the rear of the cover to remove it.

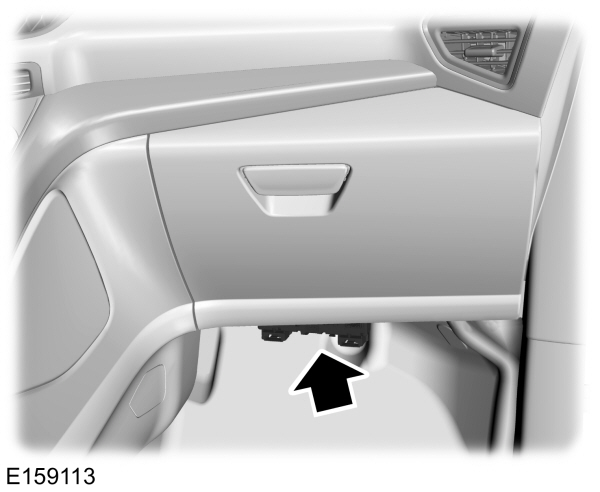

Passenger Compartment Fuse Box
The fuse box is located below the glove box.

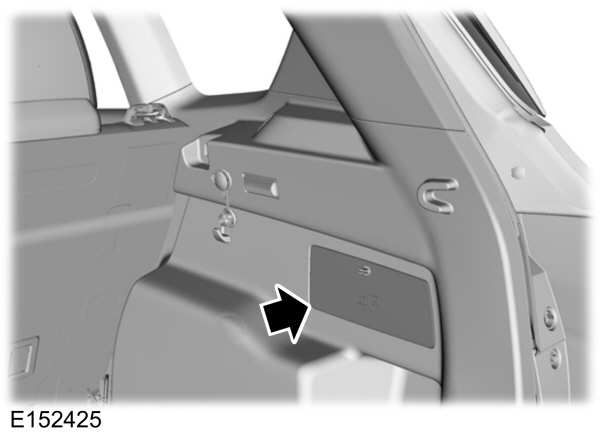

Luggage Compartment Fuse Box
The fuse box is located in the luggage compartment behind the passenger side wheel well. Remove the fuse panel cover to gain access to the fuses.
