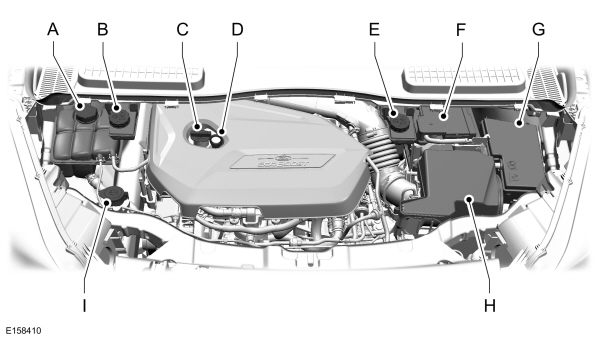

Under Hood Overview - 1.5L EcoBoost™
A Engine coolant reservoir*. See
Engine Coolant Check.
B Brake fluid reservoir (right-hand drive)*. See
Brake Fluid Check.
C Engine oil filler cap*. See
Engine Oil Check.
D Engine oil dipstick*. See
Engine Oil Check.
E Brake fluid reservoir (left-hand drive)*. See
Brake Fluid Check.
F Battery. See
Changing the 12V Battery.
G Engine compartment fuse box. See
Fuses.
H Air cleaner.I Windshield and rear window washer fluid reservoir. See
Washer Fluid Check.
* The filler caps and the engine oil dipstick are colored for easy identification. |
