WARNING   WARNING:  Fully adjust the head restraint before you sit in or operate your vehicle. This will help minimize the risk of neck injury in the event of a collision. Do not adjust the head restraint when your vehicle is moving.
WARNING   WARNING:  The head restraint is a safety device. Whenever possible it should be installed and properly adjusted when the seat is occupied.
WARNING   WARNING:  Install the head restraint properly to help minimize the risk of neck injury in the event of a collision.

Front seat head restraint
Rear Seat Headrest

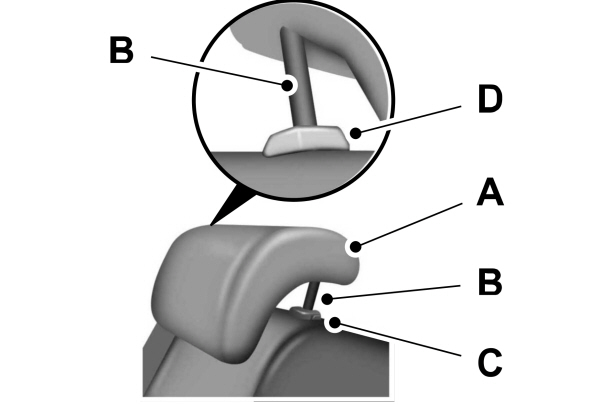

Rear head restraints
Adjust the Seat Head Restraint

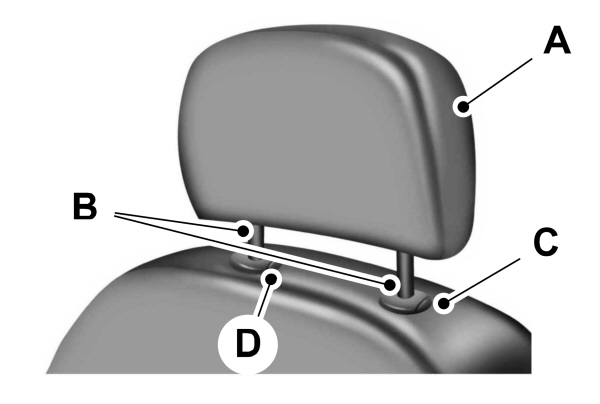

The head restraints consist of:
Aan energy absorbing head restraint
Btwo steel stems
Cguide sleeve adjust and unlock button
Dguide sleeve unlock and remove button
Note:   Adjust the seat back to an upright driving position before adjusting the head restraint. Adjust the head restraint so that the top of it is level with the top of your head and as far forward as possible. Make sure that you remain comfortable. If you are extremely tall, adjust the head restraint to its highest position.
Adjusting the Head Restraint
Raising the Head Restraint
Pull the head restraint up.
Lowering the Head Restraint
  1. Press and hold button C.
  2. Push the head restraint down.
Removing the Head Restraint
  1. Pull the head restraint up until it reaches its highest position.
  2. Press and hold buttons C and D.
  3. Pull the head restraint up.
Installing the Head Restraint
Align the steel stems into the guide sleeves and push the head restraint down until it locks.

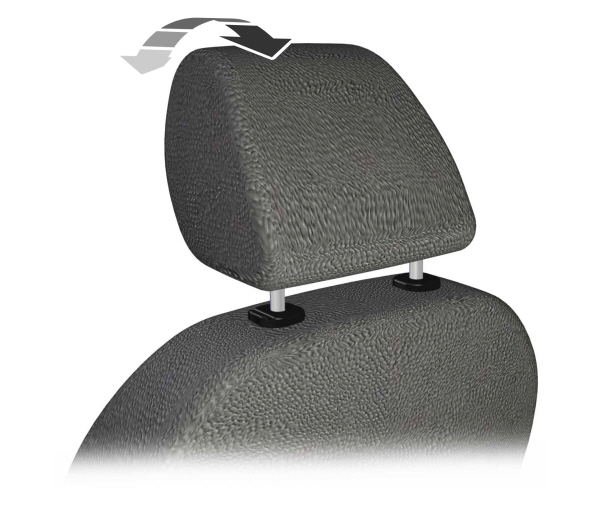

Tilting the Head Restraint
The front head restraints may have a tilting feature for extra comfort. To tilt the head restraint, do the following:
Tilting Head Restraint
  1. Adjust the seat back to an upright driving or riding position.
  1. Pivot the head restraint forward toward your head to the desired position.
After the head restraint reaches the forward-most tilt position, pivot it forward again to release it to the rearward, un-tilted position.
