Gauges

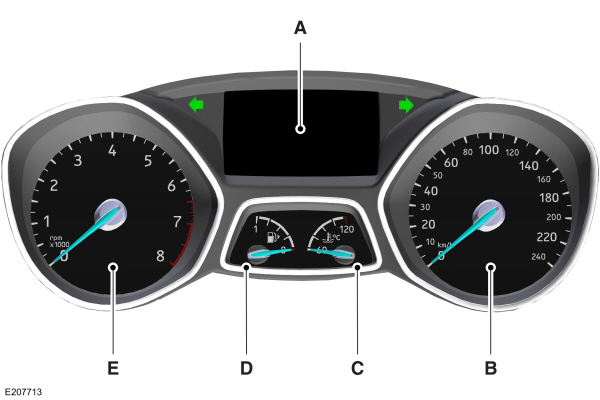

A Information display B SpeedometerC Engine coolant temperature gaugeD Fuel gaugeE Tachometer |
Information Display
Odometer
Located in the bottom of the information display, it registers the accumulated distance your vehicle has traveled.
Outside Air Temperature
Shows the outside air temperature.
Trip Computer
See
Trip Computer.
Vehicle Settings and Personalization
See
General Information.
Engine Coolant Temperature Gauge
WARNING:
Never remove the coolant reservoir cap when the engine is running or hot. |
At normal operating temperature, the needle remains in the center section.
Note:
Do not restart the engine until the cause of overheating has been resolved.
If the needle enters the red section, the engine is overheating. Stop the engine, switch the ignition off and determine the cause once the engine has cooled down. See
Engine Coolant Check.
Fuel Gauge
Switch the ignition on. The fuel gauge will indicate approximately how much fuel is left in the fuel tank. The fuel gauge may vary slightly when your vehicle is moving or on a gradient. The arrow adjacent to the fuel pump symbol indicates on which side of the vehicle the fuel filler door is located.
