Headlamp Leveling (If Equipped)

Note: Vehicles with Xenon headlamps have automatic headlamp leveling.

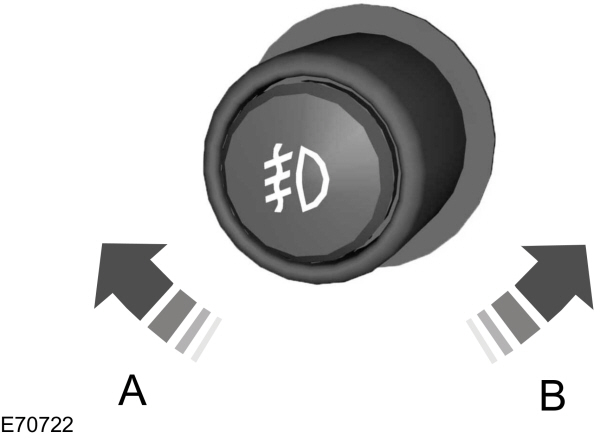

Raised headlamp beams
B

Lowered headlamp beams

You can adjust the level of the headlamp beams according to your vehicle load.

Recommended Headlamp Leveling Switch Positions

Load		Load in luggage compartment^*	Switch position
Front seats	Second row seats	Load in luggage compartment^*	Switch position
1-2	-	-	0
1-2	3	-	2
1-2	3	Max	2.5
1	-	Max	4

^* See Vehicle Identification Plate.
