Manual Climate Control (If Equipped)

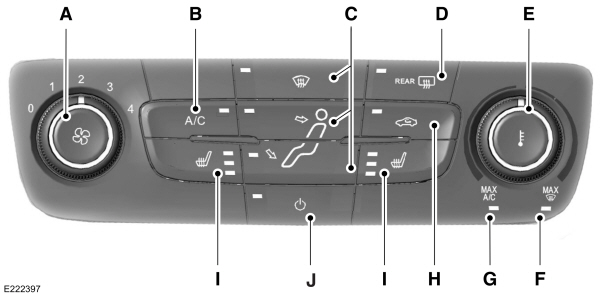

A Fan speed control: Adjusts the volume of air circulated in the vehicle.B A/C: Press to switch the air conditioning on or off. Use A/C with recirculated air to improve cooling performance and efficiency.C Air distribution control: Press to switch air flow from the windshield, instrument panel, or footwell vents on or off. You can distribute air through any combination of these vents.Note: At least one of these buttons illuminates on when the system is on. D Heated rear window: Press to switch the heated rear window on and off. See
Heated Windows and Mirrors.
E Temperature control: Adjusts the temperature of the air circulated in your vehicle.F MAX Defrost: Turn to the right to switch on defrost. Air flows through the windshield vents and the fan adjusts to the highest speed. You can also use this setting to defog and clear the windshield of a thin covering of ice. The heated rear window also turns on when you select maximum defrost.Note: To prevent window fogging, you cannot select recirculated air when maximum defrost is on.G MAX A/C: Turn to the left for maximum cooling. Recirculated air flows through the instrument panel vents and the air conditioning turns on.Note: In certain conditions (for example, maximum defrost), the air conditioning compressor may continue to operate even though you switch off the air conditioning.H Recirculated air: Press to switch between outside air and recirculated air. The air currently in the passenger compartment recirculates. This may reduce the time needed to cool the interior (when used with A/C) and reduce unwanted odors from entering your vehicle.Note: Recirculated air may turn off (or prevent you from switching on) in all air flow modes except MAX A/C to reduce the risk of fogging. Recirculation may also turn on and off in Panel or Panel/Floor air flow modes during hot weather in order to improve cooling efficiency.I Heated seats: Press to switch the heated seats on and off. See
Heated Seats.
J Power: Press to switch the system on and off. When the system is off, it prevents outside air from entering the vehicle. |
