WARNING   WARNING:  Switch the lamps and the ignition off. Failure to follow this warning could result in serious personal injury.
WARNING   WARNING:  Bulbs can become hot. Let the bulb cool down before removing it. Failure to do so could result in personal injury.

Note:   HID headlamps are not serviceable. Have your vehicle checked as soon as possible.
Note:   Only fit bulbs of the correct specification.
Note:   The following instructions describe how to remove the bulbs. Fit replacements in the reverse order unless otherwise stated.
Headlamp
Type 1
Image Shown Without Description
ALow beam headlamp.
BHigh beam and daytime running lamp.
Headlamp High Beam

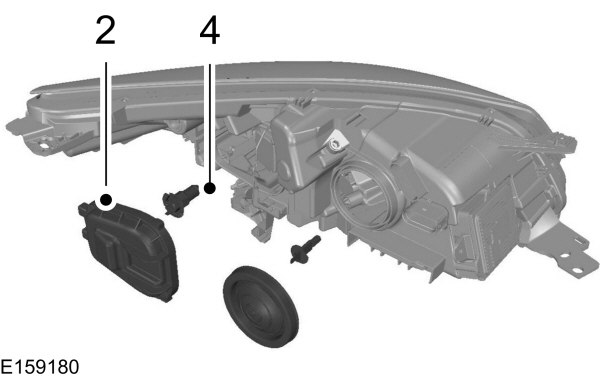

Image Shown Without Description

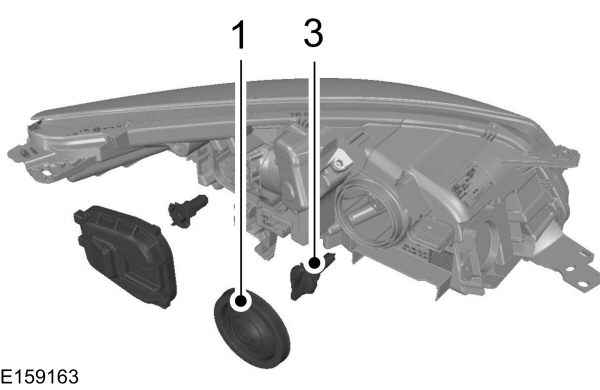

  1. Remove the cover.
  1. Disconnect the electrical connector.
  1. Turn the bulb counterclockwise and pull it straight out to remove it.
Note:   Do not touch the glass of the bulb.
Headlamp Low Beam
Image Shown Without Description

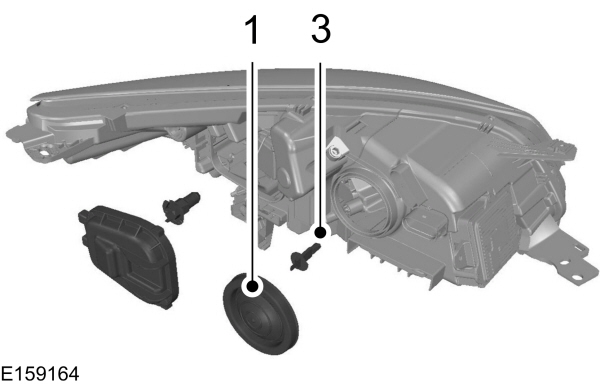

  1. Release the metal retaining clip.
  1. Remove the cover.
  1. Disconnect the electrical connector.
  1. Remove the bulb.
Note:   Do not touch the glass of the bulb.
Type 2
Image Shown Without Description

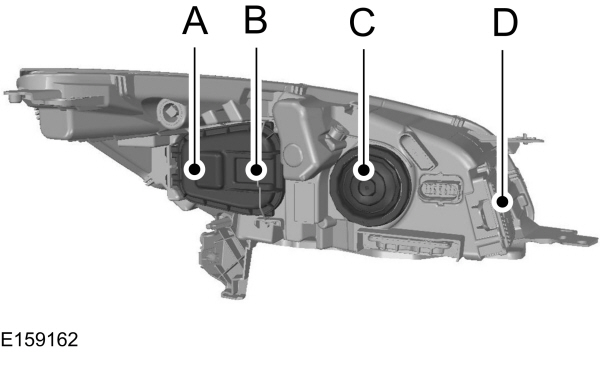

ALow beam headlamp.
BHigh beam headlamp.
CFixed bending light.
DDaytime running lamp and park position.
Headlamp High Beam
Image Shown Without Description

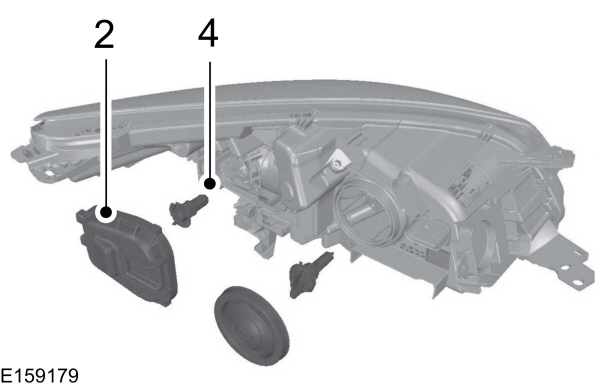

  1. Release the metal retaining clip.
  1. Remove the cover.
  1. Disconnect the electrical connector.
  1. Remove the bulb.
Note:   Do not touch the glass of the bulb.
Headlamp Fixed Bending Light Bulb
Image Shown Without Description
  1. Remove the cover.
  1. Disconnect the electrical connector.
  1. Turn the bulb counterclockwise and pull it straight out to remove it.
Note:   Do not touch the glass of the bulb.
Direction Indicator and Front Fog Lamp
Note:   The position and direction indicator bulbs are not serviceable items. Have your vehicle checked as soon as possible.
Direction Indicator and Front Fog Lamp Bulb

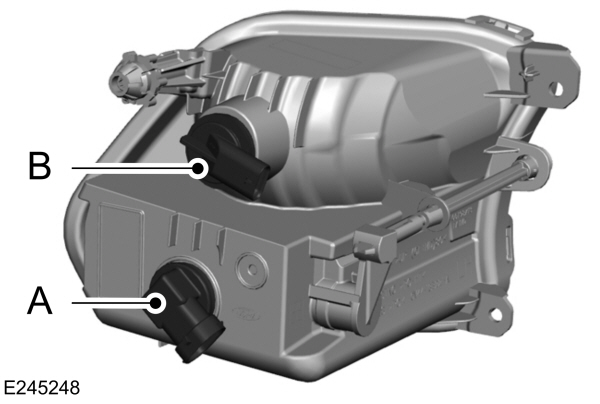

AFog lamp.
BDirection indicator lamp.
Fog Lamp Bulb Shield
  1. Turn the steering wheel to full lock.

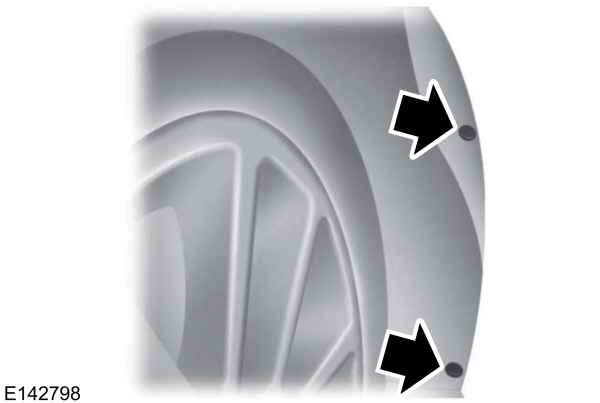

  1. Remove the retaining clips from the front wheel splash shield to gain access to the lamp assembly.

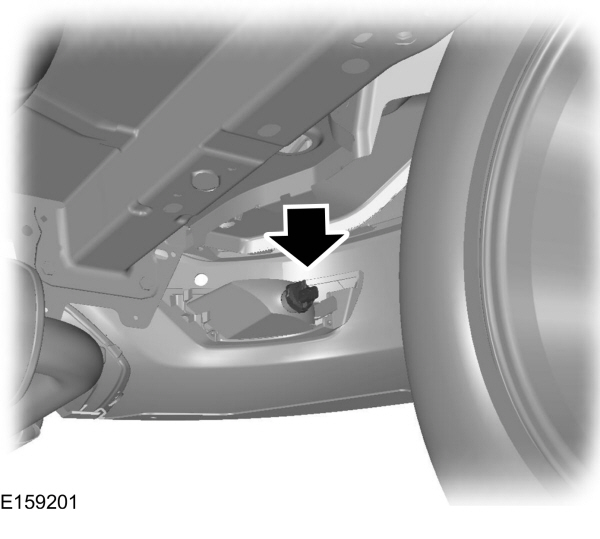

Fog Bulb Removal

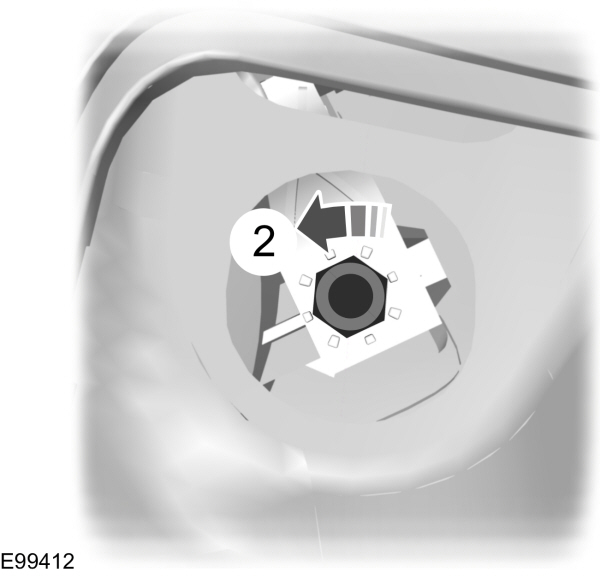

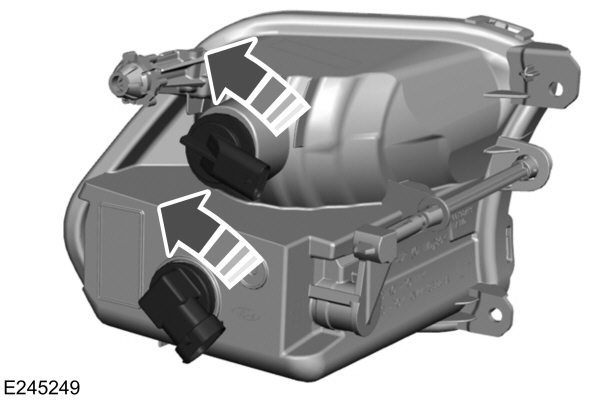

  1. Remove the bulb holder from the lamp assembly by turning it counterclockwise.
  1. Disconnect the electrical connector.
  1. Remove the bulb from the bulb holder by pulling it straight out.
Side Repeater
Image Shown Without Description
  1. Carefully remove the side repeater.
Image Shown Without Description

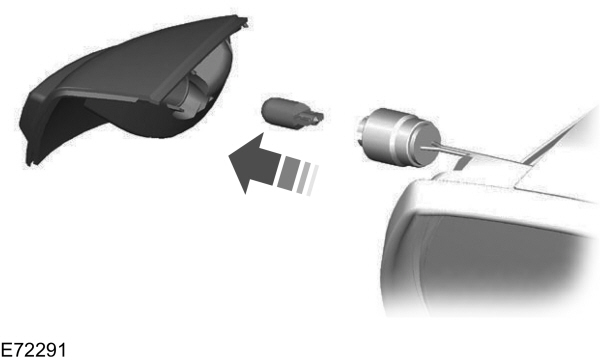

  1. Remove the bulb holder.
  1. Remove the bulb.
Approach Lamp
Note:   Position the mirror glass as far inward as possible.
Image Shown Without Description

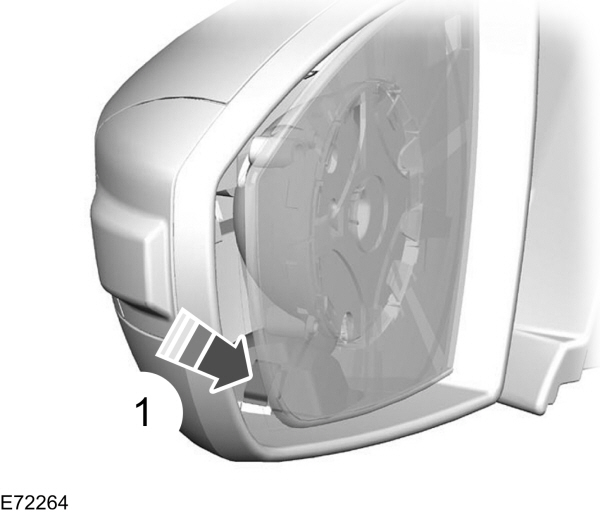

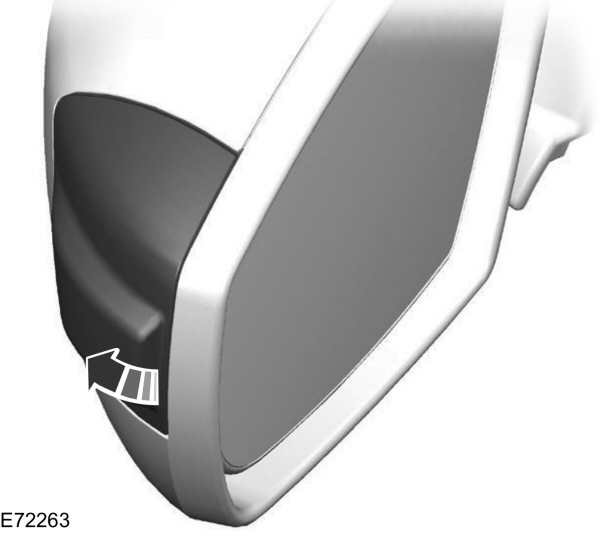

  1. Insert a screwdriver into the gap between the mirror housing and the mirror glass and release the metal retaining clip.
Image Shown Without Description

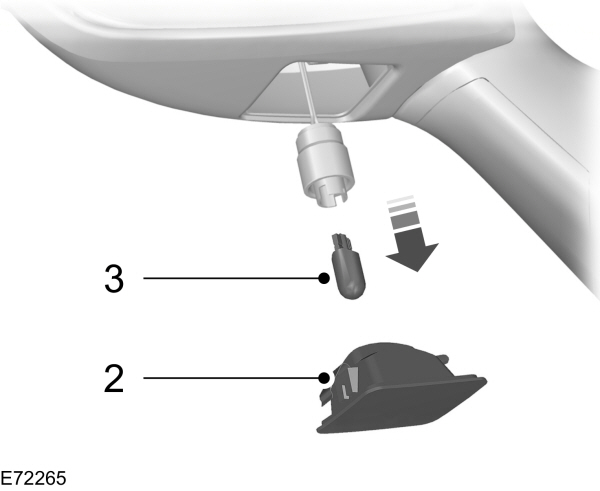

  1. Remove the lamp.
  1. Remove the bulb.
Rear Lamps
Direction Indicator, Tail and Brake Lamp
Remove the Brake Lamp Bolts

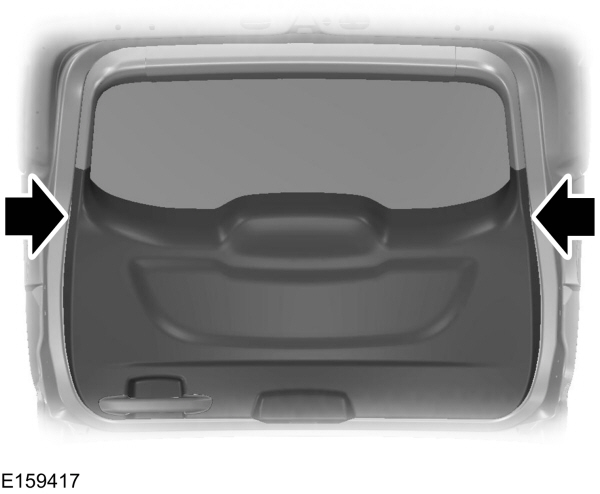

  1. Make sure the lighting control is in the off position and open the liftgate.

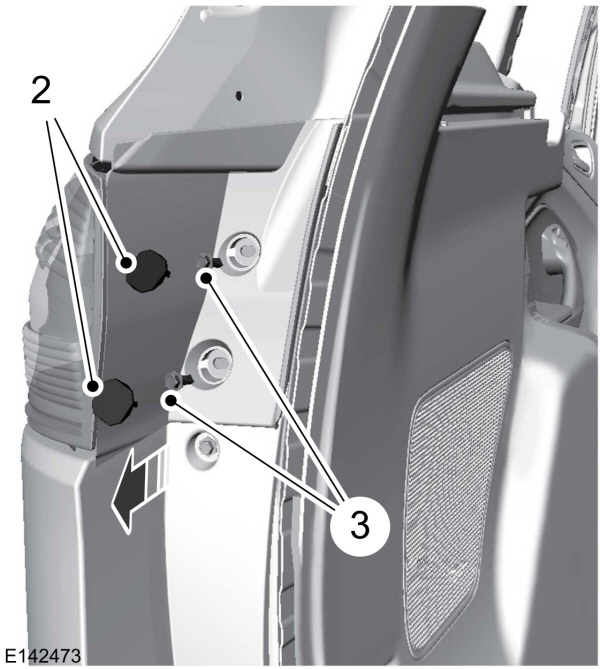

  1. Remove the two bolt covers using a standard flat tip screwdriver.
  1. Remove the two bolts from the lamp assembly.
  1. Gently pull the lamp assembly away from your vehicle.

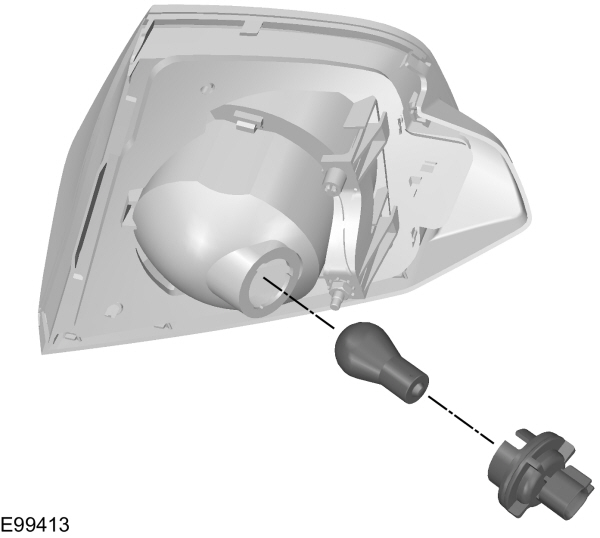

Direction Indicator
Follow the same procedure as Type 1 to remove the direction indicator bulb.
Note:   The tail and brake lamp bulbs are not serviceable items. Have your vehicle checked as soon as possible.
Reversing Lamp
Image Shown Without Description
  1. Insert a suitable object to pry open the trim panel.
Image Shown Without Description
  1. Remove the nut from the lamp assembly.
  1. Gently pull the lamp assembly away from your vehicle.
Image Shown Without Description
  1. Gently press the bulb into the bulb holder, turn it counterclockwise and remove it.
Rear Fog Lamp
Image Shown Without Description
  1. Disconnect the electrical connector.
  1. Turn the bulb counterclockwise and pull it straight out to remove it.
Central High Mounted Brake Lamp
These are not serviceable items. Have your vehicle checked as soon as possible.
License Plate Lamp
Number Plate Lamp Bulb Replace
  1. Carefully release the spring clip.
  1. Remove the lamp.
  1. Turn the bulb counterclockwise and remove it.
Interior lamp
Interior Lamps
  1. Carefully remove the lamp.
  1. Turn the bulb holder counterclockwise and remove it.
  1. Remove the bulb.
Reading lamps
Reading Lamps
  1. Carefully remove the lamp.
  1. Turn the bulb holder counterclockwise and remove it.
  1. Remove the bulb.
Luggage Compartment Lamp, Footwell Lamp and Liftgate Lamp
Luggage Compartment Lamp
  1. Carefully prize out the lamp.
  1. Remove the bulb.
