Audio Unit - Vehicles With: AM/FM/CD
WARNING:
Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving. |
Note:
Depending on your vehicle option package, your system may look different from what you see here.

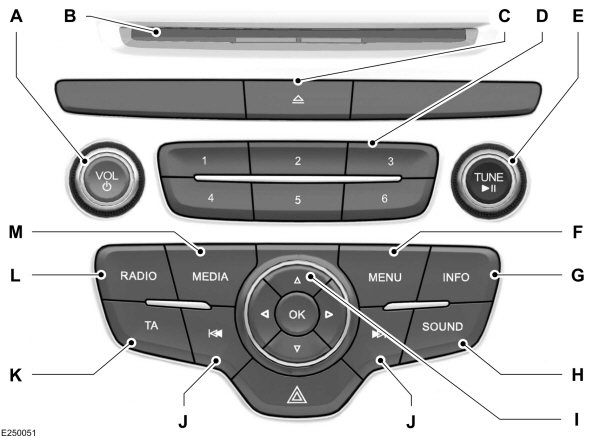

A VOL and Power: Press to switch the system on and off. Turn the control to adjust the volume.B CD slot: Insert a CD.C Eject: Press to eject a CD.D Memory presets: Store your favorite radio stations. To store a radio station, tune to the station, then press and hold a preset button until sound returns.E TUNE and Play or Pause: In radio mode, turn to search the frequency band in individual increments. Press to mute the station. In media mode, turn to select a new track. Press to either play or pause a track. This button also mutes the radio sources.F MENU: Press to access different audio system features. See Menu Structure.G INFO: Press to access any available radio or CD information.H SOUND: Press to access settings for Treble, Midrange, Bass, Fade and Balance. Use the up and down arrow buttons to select the various settings. When you make your selection, press the left and right arrow buttons to change the settings. Press OK to set or press MENU to exit. Sound settings can be set for each audio source independently.I OK and cursor arrows: Press the up and down arrow buttons to select the various settings. When you make your selection, press the left and right arrow buttons to change the settings. Press OK to set, or press MENU to exit.J Seek, Fast Forward and Reverse: In radio mode, select a frequency band and press either button. The system stops at the first station it finds in that direction. In CD mode, press to select the next or previous track. Press and hold to move quickly forward or backward through the current track.K TA: Press to switch the traffic announcements on or off and cancel any active announcements.Note: Traffic announcements may not be available in all areas. L RADIO: Press to listen to the radio or change radio stations. Press the function buttons below the radio screen to select different radio functions.M MEDIA: Press to open the media source menu. You can press this multiple times to change to CD or to a SYNC-Media device or scroll through the media sources using the arrow buttons. Press OK to select a source. |
Menu Structure
Note:
Depending on your system, some options may appear slightly different.
Press MENU.
Press the up and down arrow buttons to scroll through the options.
Press the right arrow to enter a menu. Press the left arrow to exit a menu.
Press OK to confirm a selection.
| Radio | ||
|---|---|---|
Scan | Select for a brief sampling of all available channels. | |
AST | Select to store the six strongest local stations on the AM-AST and FM-AST frequency bands. | |
Radio Text | * | Select to display extra information such as artist name. |
*Extra information may not always be available.
| Audio Settings | ||
|---|---|---|
Alternate Frequency | With the alternate frequency option active, the system re-tunes to a different frequency with better reception for the same station. | |
| Regional Mode | Regional mode controls the behavior of alternative frequencies, switching between regionally related networks. | |
News announcement | With the news announcement option active, the system interrupts the active audio source to provide incoming news announcements, if the currently tuned station (or last tuned station in case of other active media) supports news. | |
Service Linking | * | With Service Linking active, the system automatically switches from DAB to FM, in case DAB becomes unavailable. |
Adaptive volume | Automatically adjusts the volume to compensate for speed and wind noise. You can set the system between 0 and +7. | |
Sound | Select to adjust settings for Treble, Midrange, Bass, Fade or Balance. | |
Occupancy Mode | Select to optimize sound quality for the chosen seating position. | |
DSP | Choose between the stereo modes. Only works with the external sound systems. | |
* Only within DAB variants.
| CD Settings | |
|---|---|
| Scan All | Select to scan all disc selections. |
| Scan Folder | Select to scan all music in the current MP3 folder. |
| Clock Settings | |
|---|---|
Set Date and Time | Select to set the time and calendar date. |
24 Hour | Select to view clock time in a 12-hour mode or 24-hour mode. |
| Display Settings | |
|---|---|
Brightness | Select to change display brightness. |
Language | Select to display the language in English, French or Spanish. |
| Temp. Setting | Select to display the outside temperature in Fahrenheit or Celsius. |
