Audio Unit - Vehicles With: AM/FM/CD/SYNC
WARNING:
Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving. |
Note:
Depending on your vehicle option package, your system may look different from what you see here.

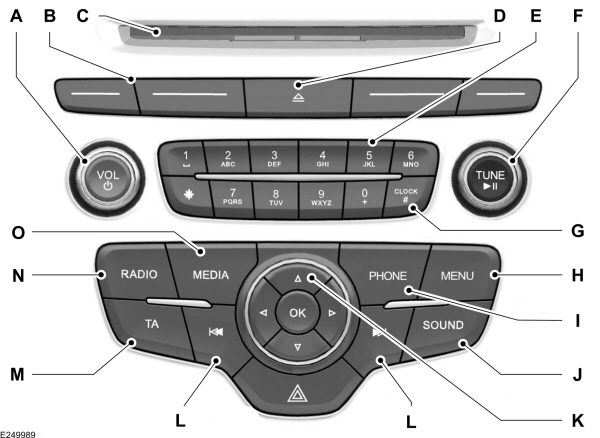

A Vol and Power: Turn to adjust the volume. Press to switch the system on and off.B Function buttons: Select different functions of the audio system depending on which mode you are in (such as Radio mode or CD mode).C CD slot: Insert a CD.D Eject: Press to eject a CD.E Number block: In radio mode, store and recall your favorite radio stations. To store a radio station, tune to the station, then press and hold a preset button until sound returns. In CD mode, select a track. In phone mode, enter a phone number.F TUNE and Play or Pause: In radio mode, turn to search the frequency band in individual increments. Press to mute the station. In media mode, turn to select a new track. Press to either play or pause a track. This button also mutes the radio sources.G Clock: Press to access the clock setting. Use the center arrow controls to change the hours and minutes. You can also set the clock by pressing MENU and scrolling to Clock Settings. If not in phone mode, press to display the clock.H MENU: Press to access different audio system features. See Menu Structure.I PHONE: Press to access the phone features of the SYNC system. See your SYNC information.J SOUND: Press to access settings for Treble, Midrange, Bass, Fade and Balance. Use the up and down arrow buttons to select the various settings. When you make your selection, press the left and right arrow buttons to change the settings. Press OK to set or press MENU to exit. Sound settings can be set for each audio source independently.K OK and cursor arrows: Press the up and down arrow buttons to select the various settings. When you make your selection, press the left and right arrow buttons to change the settings. Press OK to set, or press MENU to exit.L Seek, Fast Forward and Reverse: In radio mode, select a frequency band and press either button. The system stops at the first station it finds in that direction. In CD mode, press to select the next or previous track. Press and hold to move quickly forward or backward through the current track.M TA: Press to switch the traffic announcements on or off and cancel any active announcements. Note: Traffic announcements may not be available in all areas. N RADIO: Press to listen to the radio or change radio stations. Press the function buttons below the radio screen to select different radio functions.O MEDIA: Press to open the media source menu. You can press this multiple times to change to CD or to a SYNC-Media device or scroll through the media sources using the arrow buttons. Press OK to select a source. |
