The system does not relieve you of your responsibility to drive with due care and attention. You may need to override the system if it does not turn the high beams on or off.|
The system turns on high beams if it is dark enough and no other traffic is present. If it detects an approaching vehicle’s headlamps or tail lamps, or street lighting ahead, the system turns off high beams before they can distract other road users. Low beams remain on.
The system may not operate properly if the sensor is blocked. Keep the windshield free from obstruction or damage.
The system may not operate properly in cold or inclement conditions. You can switch on the high beams by overriding the system.
If the system detects a blockage, for example bird droppings, bug splatter, snow or ice, the system goes into low beam mode until you clear the blockage. A message may appear in the information display if the camera is blocked.
Using much larger tires or equipping vehicle accessories such as snowplows can modify your vehicle's ride height and degrade automatic high beam control performance.
A camera sensor, centrally mounted behind the windshield of your vehicle, continuously monitors conditions to turn the high beams on and off.
Once the system is active, the high beams turn on if:
- The ambient light level is low enough.
- There is no traffic in front of your vehicle.
- The vehicle speed is greater than approximately
25 mph (40 km/h).
The system turns the high beams turn off if:
- The ambient light level is high enough that high beams are not required.
- The system detects an approaching vehicle's headlamps or tail lamps.
- The vehicle speed falls below approximately
20 mph (30 km/h).
- The system detects severe rain, snow or fog.
- The camera is blocked.
Switching the System On and Off
The system may take a short time to turn on after switching the ignition on. The high beam does not turn on during this time.

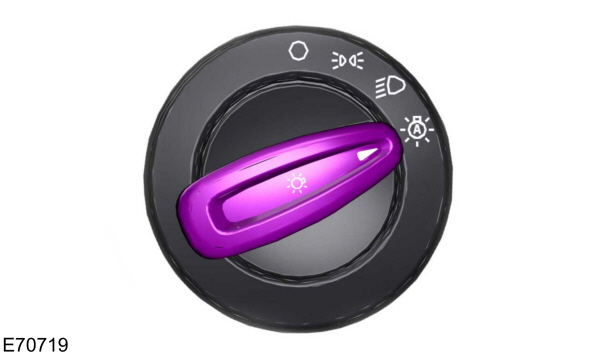

Switch the lighting control to the autolamps position. See
Overriding the System
Push the lever away from you to switch between high beam and low beam.
Automatic High Beam Indicator (If Equipped)
The indicator lamp illuminates to confirm when the system is ready to assist.|
