WARNING   WARNING:  Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

 You can control various systems on your vehicle using the information display controls on the steering wheel.The information display shows the corresponding information.
Information Display Controls

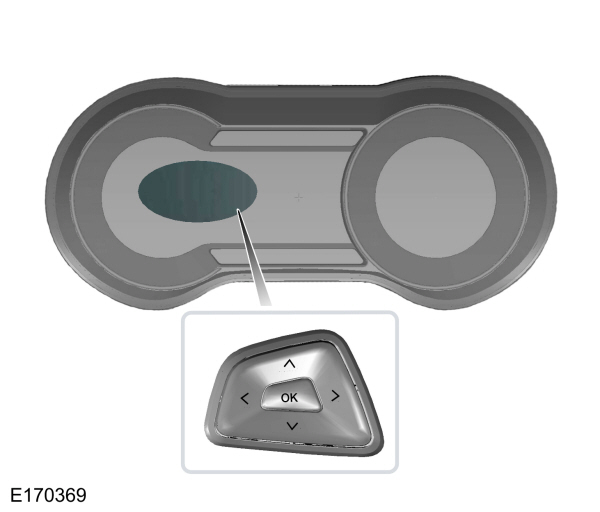

Instrument Cluster and Steering Switch
  • Press the up and down arrow buttons to scroll through and highlight the options within a menu.
  • Press the right arrow button to enter a sub-menu.
  • Press the left arrow button to exit a menu.
  • Press and hold the left arrow button at any time to return to the main menu display (escape button).
  • Press the OK button to choose and confirm settings or messages.
Check Box Icon  This icon gives you the ability to switch a feature on or off. A check in the box indicates the feature is enabled, and unchecked indicates the feature is disabled.
Trip 1 & 2
Choose between the standard or enhanced trip display.
Note:   Some items are optional and may not appear.

Trip 1 & 2
Distance to E   Normal or Towing
Average fuel economy
Trip timer
Press and hold OK to reset the currently displayed trip information.

  • Trip odometer — shows the accumulated trip distance.
  • Trip Timer— when you switch your vehicle off the timer stops and then restarts when you restart your vehicle.
  • Average fuel economy — shows the average fuel economy for a given trip.
Fuel Economy
Use the left or right arrow buttons to choose the desired fuel economy display.

Fuel Economy
Instantaneous Fuel Economy
Auto StartStop

  • Instantaneous Fuel Economy: This display shows a visual graph of your instantaneous fuel economy.
  • Auto StartStop - Available Auto Start-Stop messaging will provide details about what is happening with your system.   See   Information Messages
Driver Assist
Use the up or down arrow buttons to choose between the following display options.

Driver Assist
Traction Control
Collision Warning
Cross Traffic
Cruise Control
Adaptive or Normal
Driver Alert
On or Display
Intelligent AWD
Lane Keeping Sys
Front Park Aid
Rear Park Aid
Tire Monitor
Tire Pressure on demand screen

In this mode, you can configure different driver setting choices.
Note:   Some items are optional and may not appear.
Note:   Some MyKey items will only appear if a MyKey is set.

Drive Control
DTE Calculation
Easy Entry/Exit
Auto Engine Off
Oil Life
Power Liftgate
Enable or Disable
Remote Start
Create MyKey
911 Assist
Do Not Disturb
Traction Control
Max Speed
Speed Minder
Volume Limiter
Clear MyKeys
Distance Unit
Temperature Unit
Tire Pressure
Speedo in km/h
