Changing a Bulb
WARNING:
Switch all of the lamps and the ignition off. Failure to follow this warning could result in serious personal injury.
WARNING:
Bulbs can become hot. Let the bulb cool down before removing it. Failure to do so could result in personal injury. |
Install in the reverse order unless otherwise stated.
High Intensity Discharge Headlamp (If Equipped)
These lamps operate at a high voltage. See an authorized dealer if they fail.

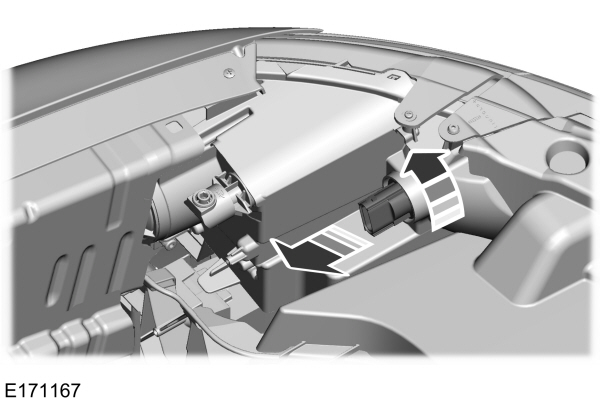

Front Direction Indicator
- Remove the headlamp. See Removing a Headlamp.
- Turn the bulb holder counterclockwise and remove it.
- Remove the bulb by pulling it straight out.
LED Lamps
LED lamps are not serviceable items. See an authorized dealer if they fail.
The following lamps are LED:- Side direction indicators.
- Approach lamp.
- Brake and rear lamps.
- Rear direction indicators.
- Reversing lamps.
- Central high mounted brake lamp.
License Plate Lamp
- Use a suitable tool, for example a screwdriver, to carefully remove the lamp.
- Remove the lamp.
- Turn the bulb holder counterclockwise and remove it.
- Remove the bulb by pulling it straight out.
