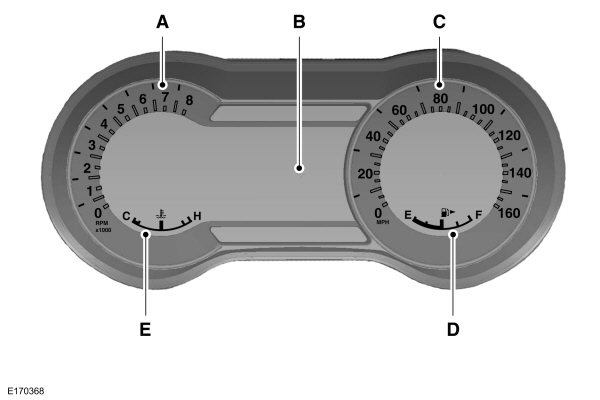

Instrument Cluster
BInformation display
DFuel gauge
EEngine coolant temperature gauge
Information Display
Vehicle Settings and Personalization
Fuel Gauge
Note:   The fuel gauge may vary slightly when your vehicle is moving or on a gradient.
Switch the ignition on. The fuel gauge will indicate approximately how much fuel is left in the fuel tank. The arrow adjacent to the fuel pump symbol indicates on which side of your vehicle the fuel filler door is located.
The needle should move toward F when you refuel your vehicle. If the needle points to E after adding fuel, this indicates your vehicle needs service soon.
After refueling some variability in needle position is normal:
  • It may take a short time for the needle to reach full after leaving the gas station. This is normal and depends upon the slope of pavement at the gas station.
  • The fuel amount dispensed into the tank is a little less or more than the gauge indicated. This is normal and depends upon the slope of pavement at the gas station.
  • If the gas station nozzle shuts off before the tank is full, try a different gas pump nozzle.
Low Fuel Level Reminder
A low fuel level reminder displays and sounds when the distance to empty reaches 50 mi (80 km) to empty for MyKey, and at 35 mi (60 km), 25 mi (40 km), 10 mi (20 km) and 0 mi (0 km) for all vehicle keys.
Engine Coolant Temperature Gauge
Indicates engine coolant temperature. At normal operating temperature, the level indicator will be in the normal range. If the engine coolant temperature exceeds the normal range, stop your vehicle as soon as safely possible, switch off the engine and let the engine cool.
WARNING   WARNING:  Never remove the coolant reservoir cap when the engine is running or hot.
