Note:   You can switch temperature units between Fahrenheit and Celsius. See your SYNC information.

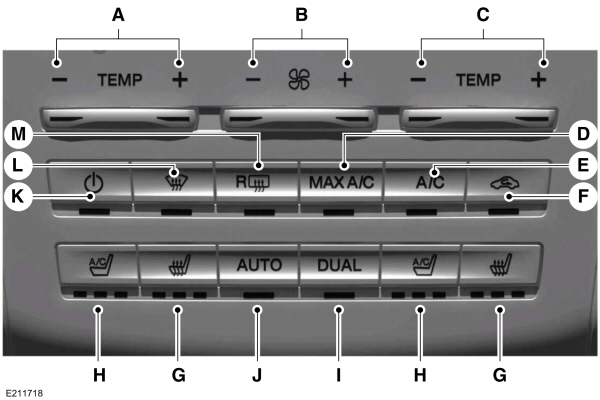

Automatic Climate Control
A Left-hand temperature control.
B Fan speed control.
C Right-hand temperature control.
E A/C.
F Recirculated air.
G Heated seats.
H Climate controlled seats.
I Dual.
J Auto.
K Power.
L Defrost.
M Heated rear window.
Left-hand Temperature Control
Adjusts the temperature setting on the left-hand side. This control also adjusts the right-hand side temperature when you switch off dual zone mode.
Fan Speed Control
Adjusts the volume of air circulated in the vehicle.
Right-hand Temperature Control
Adjusts the temperature setting on the right-hand side.
Press for maximum cooling. The left-hand and right-hand settings set to LO, recirculated air flows through the instrument panel vents, air conditioning turns on and the fan adjusts to the highest speed.
Press to switch the air conditioning on or off. Use A/C with recirculated air to improve cooling performance and efficiency.
Note:   In certain conditions (for example, maximum defrost), the air conditioning compressor may continue to operate even though you switch off the air conditioning.
Recirculated Air
Press to switch between outside air and recirculated air. The air currently in the passenger compartment recirculates. This may reduce the time needed to cool the interior (when used with A/C) and reduce unwanted odors from entering your vehicle.
Note:   Recirculated air may turn off (or prevent you from switching on) in all air flow modes except MAX A/C to reduce the risk of fogging. Recirculation may also turn on and off in various air distribution control combinations during hot weather in order to improve cooling efficiency.
Heated Seats (If Equipped)
Press to cycle through the various heat settings and off.   See   Heated Seats
Climate Controlled Seats (If Equipped)
Press to cycle through the various settings and off.   See   Climate Controlled Seats
Press to switch on temperature control for the right-hand side of the vehicle. When dual zone is off, right-hand temperature settings remain the same as the left-hand settings.
Press to switch on automatic operation. Adjust to select the desired temperature. Fan speed, air distribution, air conditioning operation, and outside or recirculated air adjust to heat or cool the vehicle to maintain the desired temperature. You can also switch off dual zone mode by pressing and holding for more than two seconds.
Press to switch the system on and off. When the system is off, it prevents outside air from entering the vehicle.
Press to distribute air through the windshield air vents and de-mister. Air directed to the instrument panel and footwell air vents turns off. You can also use this setting to defog and clear the windshield of a thin covering of ice.
Heated Rear Window
Press to switch the heated rear window on and off.   See   Heated Rear Window
