SECURICODE™ KEYLESS ENTRY KEYPAD
The keypad is located near the driver window.It is invisible until touched and then it lights up so you can see and touch the appropriate buttons.
Note:   If you enter your entry code too fast on the keypad, the unlock function may not work. Re-enter your entry code more slowly.
KeypadYou can use the keypad to do the following:
  • Lock or unlock the doors.
  • Program and erase user codes.
  • Arm and disarm the anti-theft alarm.
You can operate the keypad with the factory-set five-digit entry code. The code is located on the owner’s wallet card in the glove box and is available from an authorized dealer. You can also create up to five of your own five-digit personal entry codes.
The Keyless Entry Keypad only works if the driver door is closed and transmission is in park (P).
Programming a Personal Entry Code
To create your own personal entry code:
  1. Enter the factory-set code.
  1. Press 1•2 on the keypad within five seconds.
  1. Enter your personal five-digit code.You must enter each number within five seconds of each other.
  1. Press 1•2 on the keypad to save personal code 1.
The doors lock and then unlock to confirm that programming was successful.
To program additional personal entry codes, repeat Steps 1-3, then for Step 4:
  • Press 3•4 to save personal code 2.
  • Press 5•6 to save personal code 3.
  • Press 7•8 to save personal code 4.
  • Press 9•0 to save personal code 5.
Tips:
  • Do not set a code that uses five of the same number.
  • Do not use five numbers in sequential order.
  • The factory-set code works even if you have set your own personal code.
Erasing a Personal Code
  1. Enter the factory-set five-digit code.
  1. Press and release 1•2 on the keypad within five seconds.
  1. Press and hold 1•2 for two seconds. You must do this within five seconds of completing Step 2.
All personal codes erase and only the factory-set five-digit code works.
Anti-Scan Feature
The keypad goes into an anti-scan mode if you enter the wrong code seven times (35 consecutive button presses). This mode disables the keypad for one minute and the keypad lamp flashes.
The anti-scan feature turns off after any of the following occur:
  • One minute of keypad inactivity passes.
  • You press the unlock button on the remote control.
  • You switch the ignition on.
  • You unlock the vehicle using intelligent access.
Unlocking and Locking the Doors
To Unlock the Driver Door
Enter the factory-set five-digit code or your personal code. You must press each number within five seconds of each other. The interior lamps illuminates.
Note:   All doors unlock if the two-stage unlocking feature is disabled.   See   Locking and Unlocking.
To Unlock All Doors
Enter the factory-set code or your personal code, then press 3•4 control within five seconds.
To Lock All Doors
Press and hold 7•8 and 9•0 at the same time with the driver door closed. You do not need to enter the keypad code first.
Displaying the Factory-Set Code
Note:   You need to have two programmed intelligent access keys for this procedure.
To display the factory-set code in the information display:

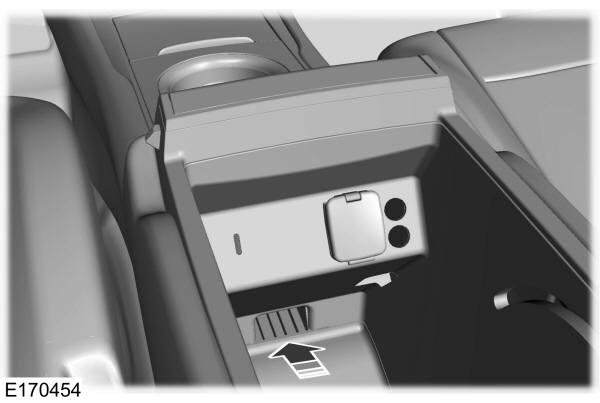

Intelligent Access Key Back-up Slot
  1. Open the center console lid.
  1. Insert the first programmed key in the backup slot.
  1. Press the push button ignition switch once and wait a few seconds.
  1. Press the push button ignition switch again and remove the key.
  1. Within 10 seconds, place a second programmed intelligent access key in the backup slot and press the push button ignition switch.
The factory-set code appears in the information display for a few seconds.
Note:   The code may not display until after any other warning messages first display.
