Removing a Headlamp
- Open the hood. See Opening and Closing the Hood.

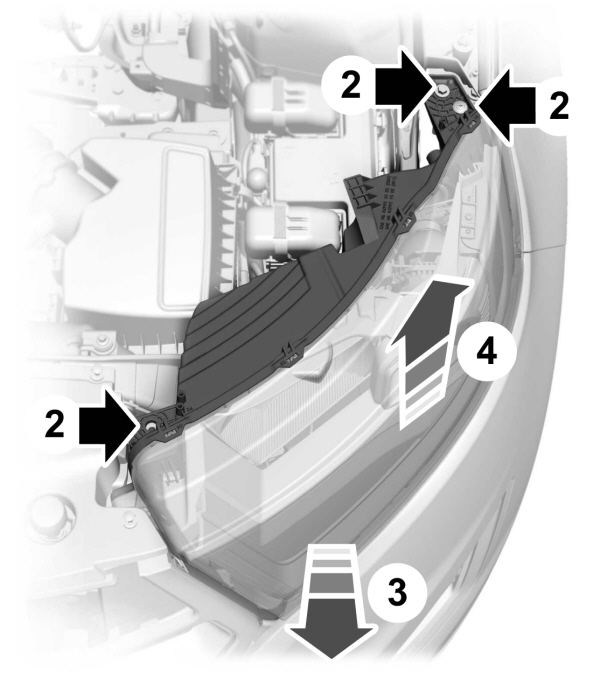

- Remove the screws.
- Pull the headlamp toward the front of the vehicle to disengage it from the lower fixing point.
- Lift the headlamp up and remove it.

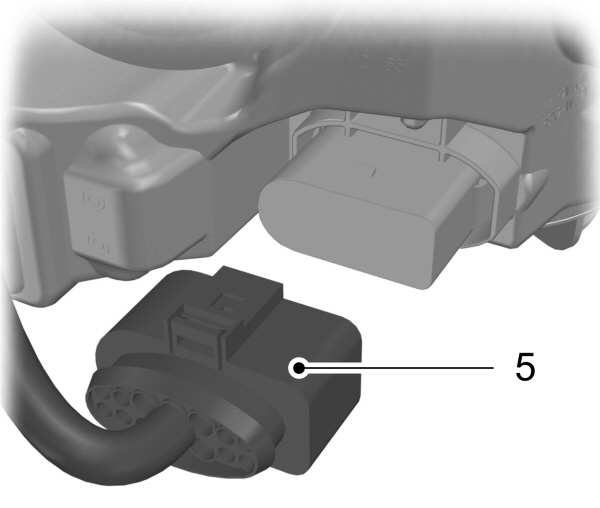

- Disconnect the electrical connector.
