Gauges
Type 1
A Tachometer B Information DisplayC SpeedometerD Fuel GaugeE Engine Coolant Temperature Gauge |
Information Display
Odometer
Located in the bottom of the information display. Registers the accumulated distance your vehicle has traveled.
Outside Air Temperature
Shows the outside air temperature.
Compass
Displays the vehicle’s heading direction.
Trip Computer
See
General Information.
Vehicle Settings and Personalization
See
General Information.
Engine Coolant Temperature Gauge
WARNING:
Do not remove the coolant reservoir cap when the engine is on or the cooling system is hot. Wait 10 minutes for the cooling system to cool down. Cover the coolant reservoir cap with a thick cloth to prevent the possibility of scalding and slowly remove the cap. Failure to follow this instruction could result in personal injury. |
Shows the temperature of the engine coolant. At normal operating temperature, the needle remains in the center section. If the needle enters the red section, the engine is overheating.Stop the engine, switch the ignition off and determine the cause once the engine has cooled down.
Note:
Do not restart the engine until the cause of overheating has been resolved.
Fuel Gauge
The fuel gauge indicates about how much fuel is in the fuel tank.
The arrow adjacent to the fuel pump symbol indicates on which side of your vehicle the fuel filler door is located.
Note:
The fuel gauge may vary slightly when your vehicle is moving or on a slope.
Low Fuel Reminder
A low fuel level reminder displays and sounds when the distance to empty reaches
75 mi (120 km) to empty for MyKey, and at
50 mi (80 km),
25 mi (40 km),
10 mi (20 km) and
mi (0 km) for all vehicle keys.
Note:
The low fuel reminder can appear at different fuel gauge positions depending on fuel economy conditions. This variation is normal.
Type 2

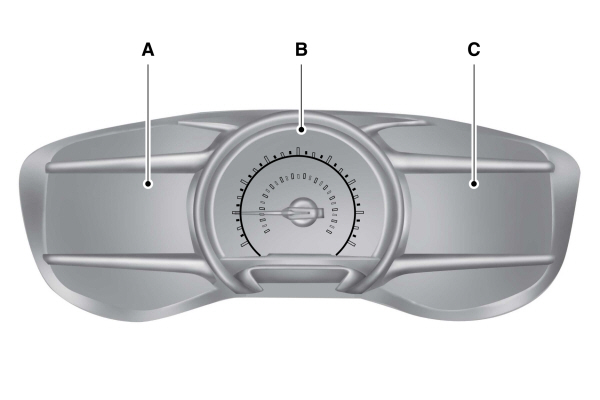

| ALeft Information Display B SpeedometerC Right Information Display. See
General Information.
|
Left Information Display
Odometer
Located in the bottom of the information display. Registers the accumulated distance your vehicle has traveled.
Trip Computer
See
General Information.
Vehicle Settings and Personalization
See
General Information.
