Interior Lamps
The lamps turn on under the following conditions:
Press to switch the interior lamp function on and off.
- You open any door.
- You press a remote control button.
- You press the all lamps on button on the overhead console.

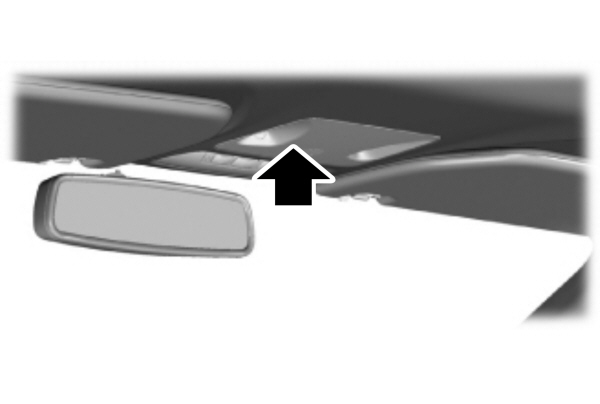

Front Interior Lamp
The front interior lamp switches are on the overhead console.
Note:
The position of each button on the overhead console depends on your vehicle.
All Lamps On
Press to switch all interior lamps on. |
All Lamps Off
Press to switch all interior lamps off. |
Individual Dome Lamps
Press to switch the left-hand individual dome lamp on and off. |
Press to switch the right-hand individual dome lamp on and off. |
Interior Lamp Function
Press to switch the interior lamp function on and off.When the interior lamp function is off and you open a door, the courtesy and door lamps stay off.
When the interior lamp function is on and you open a door, the courtesy and door lamps turn on.
Note:
The indicator lamp lights amber when the door function is off.
Individual Map Lamps
Press a map lens to switch individual map lamps on and off independently.
Rear Interior Lamps
The rear interior lamps may be above the rear seat or above the rear windows.
|
Press to switch the lamps on or off. |
