Changing a Bulb
WARNING:
Switch the lamps and the ignition off. Failure to follow this warning could result in serious personal injury.
WARNING:
Bulbs can become hot. Let the bulb cool down before removing it. Failure to do so could result in personal injury. |
Use the correct specification bulb.
Install in the reverse order unless otherwise stated.
Headlamp

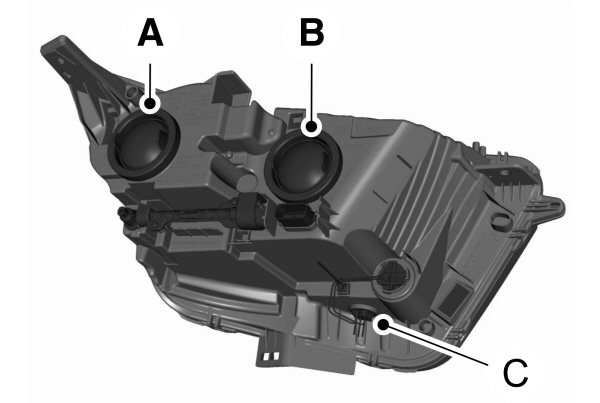

A Headlamp low beam.Headlamp low and high beam - vehicles with high-intensity discharge headlamps.B Headlamp high beam.Daytime running lamp.C Front direction indicator. |
Note:
LED headlamps are not serviceable. Have your vehicle checked as soon as possible.
Front Direction Indicator
- Remove the headlamp assembly. See Removing a Headlamp.
- Turn the bulb holder counterclockwise and remove it.
- Remove the bulb by pulling it straight out.
Headlamp Low Beam
- Remove the cover.
- Turn the bulb counterclockwise and remove it.
- Disconnect the electrical connector.
Note:
Do not touch the bulb glass.
Note:
You cannot separate the bulb from the bulb holder.
Headlamp High Beam
- Remove the cover.
- Turn the bulb counterclockwise and remove it.
- Disconnect the electrical connector.
Note:
Do not touch the bulb glass.
Note:
You cannot separate the bulb from the bulb holder.
High-Intensity Discharge Headlamps
These lamps operate at a high voltage.See an authorized dealer if they fail.
Daytime Running Lamp
- Remove the cover.
- Turn the bulb counterclockwise and remove it.
- Disconnect the electrical connector.
Note:
Do not touch the bulb glass.
Note:
You cannot separate the bulb from the bulb holder.
LED Lamps
LED lamps are not serviceable items.See an authorized dealer if they fail.
The following lamps are LED:- Brake and rear lamps.
- Central high mounted brake lamp.
- Front side marker lamps.
- Front signature lamps.
- Rear direction indicators.
- Rear side marker lamps.
- Reversing lamps.
- Side direction indicators.
License Plate Lamp
- Use a suitable tool, for example a screwdriver, to carefully remove the lamp.
- Remove the lamp.
- Turn the bulb holder counterclockwise and remove it.
- Remove the bulb by pulling it straight out.
