  • DRIVEABILITY - STREAMLINED DIAGNOSTIC PROCEDURE FOR VEHICLES WITH MIL ON AND DTCS P0401, P0402, P1400 OR P1401 - ADDITIONAL SYMPTOMS MAY INCLUDE RUNS ROUGH, LACKS POWER, SURGE, POOR FUEL ECONOMY
Publication Date: May 25, 2004

FORD:
2000-2002 TAURUS
2001-2002 CROWN VICTORIA, FOCUS, MUSTANG
2001 EXPLORER USPS
2001-2002 E-SERIES, ESCAPE, EXPEDITION, EXPLORER SPORT TRAC, EXPLORER SPORT, F-150, RANGER, WINDSTAR
2002-2003 EXPLORER
LINCOLN:
2001-2002 TOWN CAR
MERCURY:
2000-2002 SABLE
2001-2002 COUGAR, GRAND MARQUIS
2002-2003 MOUNTAINEER

This article supersedes TSB 04-3-1 to update service part information and applications.

ISSUE:

Some vehicles may exhibit a malfunction indicator lamp (MIL) "ON" with or without the following symptoms: Rough Running, Lack of Power, Surge or Poor Fuel Economy, along with diagnostic trouble codes (DTC's) P0401, P0402, P1400 or P1401. This may be caused by an intermittently functioning tube-mounted delta pressure feedback EGR (DPFE) sensor (Figure 1).

ACTION:

For vehicles equipped with a tube-mounted DPFE sensor, perform the following diagnostic procedure and repair action. This procedure supersedes the diagnostic procedure in the PC/ED Manual for the issue described above.

NOTE:ALL LISTED APPLICATIONS CAN NOW BE SERVICED WITH DPFE SENSOR 4U7Z-9J460-AA

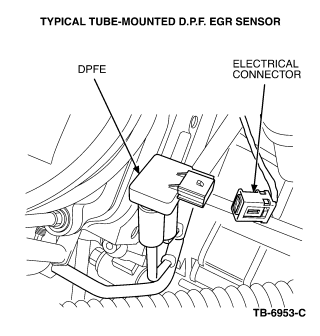

Figure 1 - Article 04-11-1

NOTE:THIS ARTICLE APPLIES TO THE FULL MODEL YEAR FOR ALL VEHICLES LISTED EXCEPT THE FOLLOWING:

SERVICE PROCEDURE

  1. Retrieve continuous DTC(s).
  2. If P0401, P0402, P1400 or P1401 are present, turn ignition OFF and replace the DPFE sensor.
  3. Clear continuous DTC(s).
  4. Perform key on engine off (KOEO) and key on engine running (KOER) self-test.

    ENGINE APPLICATION CHART
    Model Year Vehicle Line Engine Part
    2001-2002 Cougar 2.5L DOHC 4U7Z-9J460-AA
    2001-2002 Crown Victoria/Grand Marquis 4.6L SOHC 4U7Z-9J460-AA
    2001-2002 Econoline 4.2L OHV 4U7Z-9J460-AA
    2001 Econoline 4.6L SOHC 4U7Z-9J460-AA
    2001-2002 Escape 2.0L Zetec and 3.0L DOHC 4U7Z-9J460-AA
    2001-2002 Expedition 4.6L SOHC 4U7Z-9J460-AA
    2002-2003 Explorer 4dr/Mounaineer 4.6L SHOC 4U7Z-9J460-AA
    2002 Explorer 4dr/Mountaineer 4.0L SOHC 4U7Z-9J460-AA
    2001-2002 Explorer Sport 4.0L SOHC 4U7Z-9J460-AA
    2001-2002 Explorer Sport Trac 4.0L SOHC 4U7Z-9J460-AA
    2001 Explorer USPS 4.0L SOHC 4U7Z-9J460-AA
    2001-2002 Focus 2.0L Zetec 4U7Z-9J460-AA
    2001-2002 F-Series 4.2L OHV and 4.6L SOHC 4U7Z-9J460-AA
    2001-2002 Mustang 3.8L OHV 4U7Z-9J460-AA
    2001-2002 Ranger 4.0L SOHC 4U7Z-9J460-AA
    2000-2002 Taurus/Sable 3.0L DOHC 4U7Z-9J460-AA
    2001-2002 Taurus/Sable 3.0L OHV and FFV 4U7Z-9J460-AA
    2001-2002 Town Car 4.6L SOHC 4U7Z-9J460-AA
    2001-2002 Windstar 3.8L OHV 4U7Z-9J460-AA



    LABOR OPERATION CLAIMING CHART
    Operation Labor Description Vehicle Time
    041101A Retrieve Diagnostic Trouble Codes, Replace Tube Mounted Delta Pressure Feedback Sensor (DPFE), Clear Continuous DTC's And Perform KOEO And KOER Retest 2001-2002 Escape 2.0L Zetec 0.4
        2001-2002 Escape 3.0L DOHC 0.4
        2001-2002 Focus 2.0L Zetec 0.4
        2001-2002 Cougar 2.5L DOHC 0.4
        2000-2002 Taurus/Sable 3.0L DOHC 0.4
        2001-2002 Taurus/Sable 3.0L OHV and FFV 0.4
        2001-2002 Mustang 3.8L OHV 0.4
        2001-2002 Windstar 3.8L OHV 0.4
        2001-2002 Explorer Sport 4.0L SOHC 0.4
        2001-2002 Explorer Sport Trac: 4.0L SOHC 0.4
        2002 Explorer/Mountaineer 4.0L SOHC 0.4
        2001 Explorer USPS 4.0L SOHC 0.4
        2001-2002 Ranger 4.0L SOHC 0.4
        2001-2002 Econoline 4.2L OHV 0.6
        2001-2002 F-Series 4.2L OHV 0.4
        2001-2002 Crown Victoria/Grand Marquis 4.6L SOHC 0.5
        2001 Econoline 4.6L SOHC 0.6
        2001-2002 Expedition 4.6L SOHC 0.5
        2001-2002 F-Series 4.6L SOHC 0.4
        2001-2002 Town Car: 4.6L SOHC 0.6
        2002-2003 Explorer/Mountaineer 4.6L SOHC 0.5



PART NUMBER PART NAME
4U7Z-9J460-AA DPFE Sensor

OTHER APPLICABLE ARTICLES:

NONE

WARRANTY STATUS:

Eligible Under The Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage

DEALER CODING

BASIC PART NO. CONDITION CODE
9J460 42
