Using the Tire Sealant and Inflator Kit
Tips for use of the Tire Sealant and Inflator Kit Solution 1
To make sure the kit operates safely and properly, observe the following:
- Before using the kit, make sure your vehicle is safely off the road and away from moving traffic.
- Do not remove any foreign objects, such as nails or screws, from the tire.
- Do not allow the compressor to run continuously for more than 15 minutes. This prevents the compressor from overheating.
- Only use the kit when the ambient temperature is between -22 °F (-30 °C) and 158 °F (70 °C).
- Do not use expired sealing compound. The use by date is on the sealant canister label and can be seen through the rectangular viewing window on the bottom of the compressor. Check the use by date regularly and replace the canister when the sealant expires.
Note:
Sealant compound contains latex. Use appropriate precautions to avoid any allergic reactions.
When inflation only is required for a tire or other objects, the selector must be in the Air position. |
What to do when a tire is punctured
A tire puncture within the tire's tread area can be repaired in two stages with the kit.
- In the first stage, the tire is reinflated with a sealing compound and air. After the tire has been inflated, drive the vehicle 5 mi (8 km) to distribute the sealant in the tire.
- In the second stage, check the tire pressure and adjust, if necessary, to the vehicle's specified tire inflation pressure.
First Stage: Reinflating the Tire with sealing compound and air
WARNING:
Do not stand directly over the kit while inflating the tire. If you notice any unusual bulges or deformations in the tire's sidewall during inflation, stop and call roadside assistance.
WARNING:
If the tire does not inflate to the recommended tire pressure within 15 minutes, stop and call roadside assistance. |
Park the vehicle in a safe, level and secure area, away from moving traffic.
Turn the hazard lights on. Apply the parking brake and power off the vehicle. Inspect the flat tire for visible damage.
If a puncture is located in the tire sidewall, stop and call roadside assistance.
- Remove the valve cap from the tire valve.
- Unwrap the dual purpose hose (black tube) from the back of the compressor housing.
- Fasten the hose to the tire valve by turning the connector clockwise. Tighten the connection securely.
- Plug the power cable into the 12-volt power point in the vehicle.
- Remove the warning sticker found on the casing/housing and place it on top of the instrument panel or the center of the dash.
- Turn dial (A) clockwise to the sealant position. Turn the kit on by pressing the on/off button (B).
- Inflate the tire to the pressure listed on the tire label located on the driver door or the door jamb area. Check the final tire pressure with the compressor turned off to get an accurate pressure reading.
- When the recommended tire pressure is reached, turn off the kit, unplug the power cable, and disconnect the hose from the tire valve. Reinstall the valve cap on the tire valve and return the kit to the rear of the vehicle.
- Drive the vehicle 5 mi (8 km) to evenly distribute the sealant inside the tire.
Note:
If you experience any unusual vibration, ride disturbance or noise while driving, reduce your speed until you can safely pull off to the side of the road to call roadside assistance. Do not proceed to the second stage of this operation.
Second Stage: Checking the tire pressure with the inflator kit
|
WARNING:
If the tire does not inflate to the recommended tire pressure within 15 minutes, stop and call roadside assistance.
WARNING:
The power plug and the inflation hose may get hot after use and should be handled carefully when unplugging. |
Check the air pressure of your tires as follows:
- Remove the valve cap from the tire valve.
- Attach the air compressor hose onto the valve stem by turning clockwise.
- Push and turn the dial clockwise to the air position.
- If required, turn on the compressor and adjust the tire to the recommended inflation pressure.
- Remove the hoses, reinstall the tire valve cap on the tire and return the kit to the rear of the vehicle.
What to do after the tire has been sealed
After using the kit to seal your tire, replace the sealant canister. Sealant canisters and spare parts can be obtained at an authorized dealer. Empty sealant canisters may be disposed of at home. However, canisters still containing liquid sealant should be disposed of in accordance with local waste disposal regulation.
Removal of the sealant canister from the kit
- Unwrap the dual purpose hose (black tube) from the compressor housing.
- Unwrap the power cord.
- Remove the back cover.
- Rotate the sealant canister up 90 degrees and pull away from casing/housing to remove.
Installation of the sealant canister to the kit
- Hold the canister perpendicular to the housing and insert the canister nozzle into the connector. Push the nozzle until seated.
- Rotate the canister 90 degrees into the housing/casing.
- Snap the back cover back into place.
- Wrap the dual purpose hose (black tube) around the channel on the bottom of the housing/casing.
- Wrap the power cord around the housing and stow the accessory power plug.
Tips for use of the Tire Sealant and Inflator Kit Solution 2
To make sure the kit operates safely and properly, observe the following:
- Before using the kit, make sure your vehicle is safely off the road and away from moving traffic.
- Do not remove any foreign objects, such as nails or screws, from the tire.
- Do not allow the compressor to run continuously for more than 15 minutes. This prevents the compressor from overheating.
- Only use the kit when the ambient temperature is between -40 °F (-40 °C) and 158 °F (70 °C).
- Do not use expired sealing compound. The use by date is on the sealant canister label and can be seen through the rectangular viewing window on the bottom of the compressor. Check the use by date regularly and replace the canister when the sealant expires.
Note:
Sealant compound contains latex. Use appropriate precautions to avoid any allergic reactions.
|
The tire sealant and inflator kit can be for regular tire pressure maintenance and inflating other objects by plugging the air supply hose into the port identified by a tire pump icon as indicated by the gray portion of the instruction label. |
What to do when a tire is punctured
A tire puncture within the tire's tread area can be repaired in two stages with the kit:
- In the first stage, the tire is reinflated with a sealing compound and air. After the tire has been inflated, drive the vehicle 5 mi (8 km) to distribute the sealant in the tire.
- In the second stage, check the tire pressure and adjust, if necessary, to the vehicle's specified tire inflation pressure.
First Stage: Reinflating the Tire with sealing compound and air
|
WARNING:
Do not stand directly over the kit while inflating the tire. If you notice any unusual bulges or deformations in the tire's sidewall during inflation, stop and call roadside assistance.
WARNING:
If the tire does not inflate to the recommended tire pressure within 15 minutes, stop and call roadside assistance. |
Park the vehicle in a safe, level, and secure area, away from moving traffic.
Turn the hazard lights on. Apply the parking brake and power off the vehicle. Inspect the flat tire for visible damage.
If a puncture is located in the tire sidewall, stop and call roadside assistance.

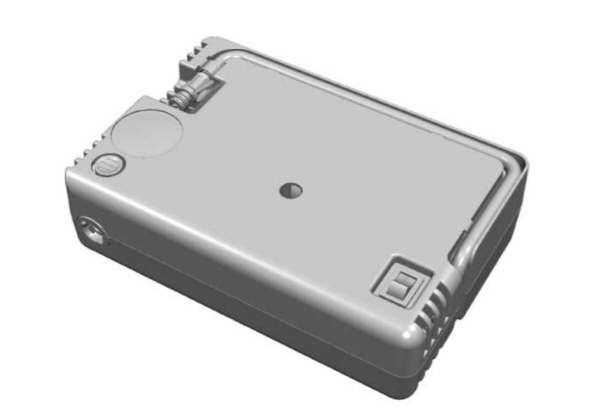

- The dual-purpose hose (black tube) for air and sealant is pressed into a groove on the compressor housing. Remove the dual-purpose hose from the compressor housing.

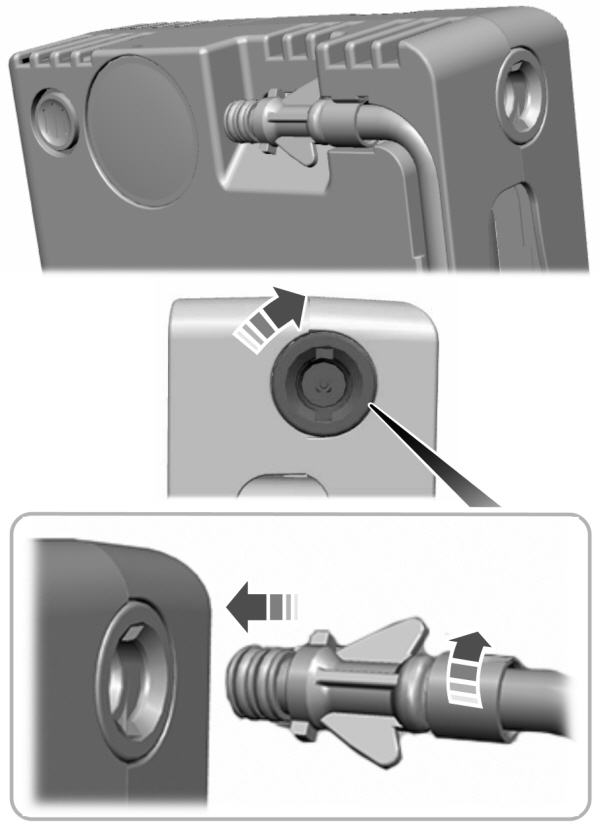

- Insert the air supply hose into the port as identified by the punctured tire icon and indicated by the blue portion of the instruction label for temporary repair of a tire puncture.
Note:
Note the winged twist connector on the instruction label side of the housing.
- Follow the arrow on the blue, puncture repair portion of the label to find the port for the winged twist connector on the side of the compressor housing. It is labeled A with a printed icon of a punctured tire.
- Insert the connector and twist it clockwise until the connector wing aligns with the marking on the compressor housing and it is locked in position.
- Remove the valve cap from the tire valve.

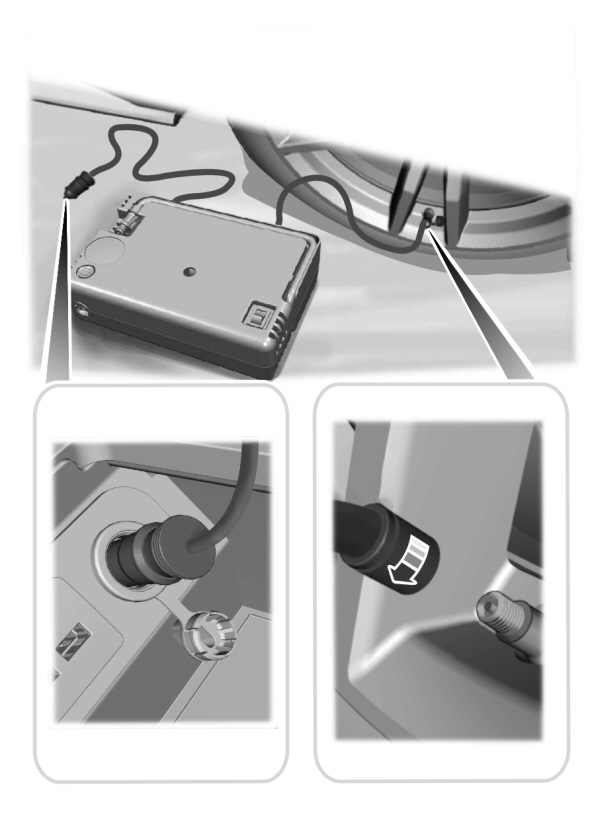

- Fasten the hose to the tire valve by turning the threaded connector clockwise. Securely tighten the connection.
- Plug the power cable into the 12-volt power point in the vehicle.

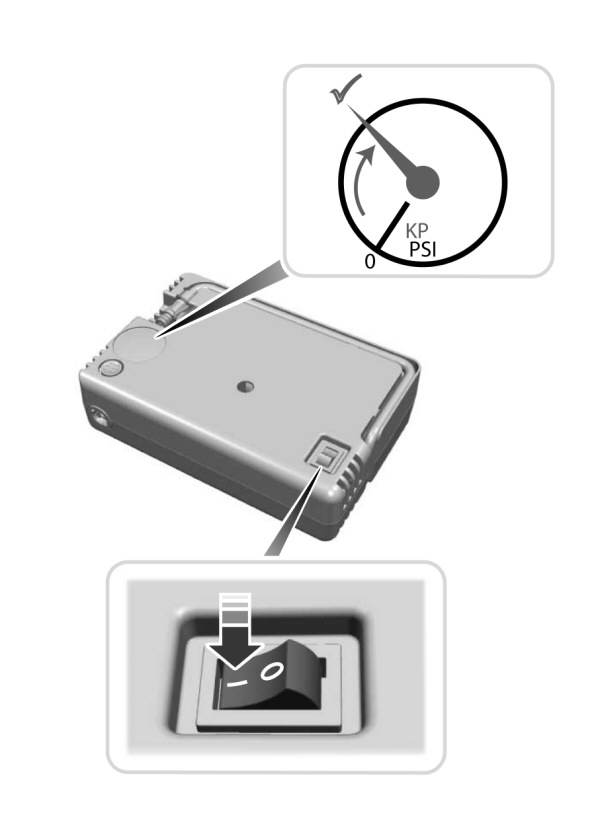

- Turn the tire inflator kit on by pressing the on/off button.
- Inflate the tire to the pressure listed on the tire label located on the driver door or the door jamb area. Check the final tire pressure with the compressor turned off to get an accurate pressure reading.

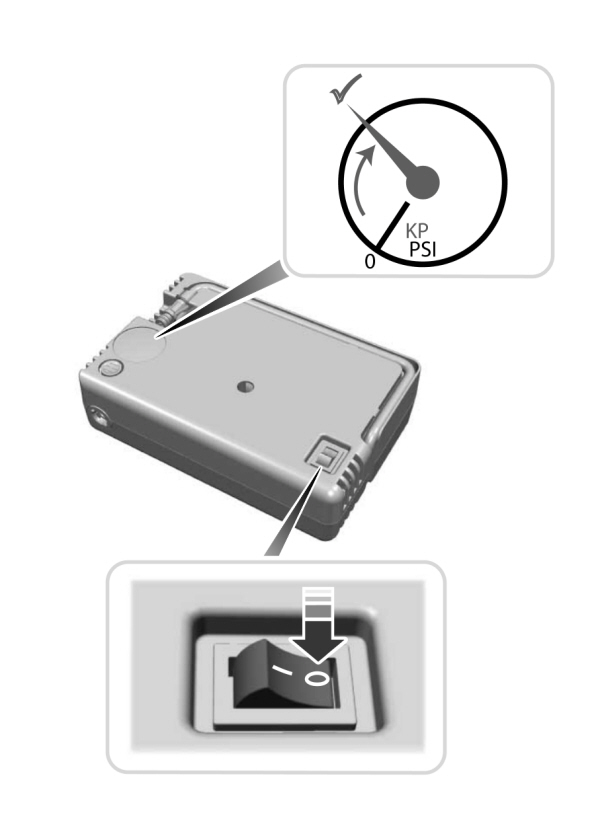

- When the recommended tire pressure is reached, turn off the kit, unplug the power cable, and disconnect the hose from the tire valve. Reinstall the valve cap on the tire valve and return the kit to the rear of the vehicle.
- Remove the red warning sticker found on the casing/housing and place it on top of the instrument panel or the center of the dash.
- Drive the vehicle 5 mi (8 km) to evenly distribute the sealant inside the tire. Do not exceed 50 mph (80 km/h).
- After 5 mi (8 km) , stop and check the tire pressure. See Second Stage: Checking Tire Pressure.
Note:
If you experience any unusual vibration, ride disturbance, or noise while driving, reduce your speed until you can safely pull off to the side of the road to call for roadside assistance. Do not proceed to the second stage of this operation.
Second Stage: Checking the tire pressure with the inflator kit
|
WARNING:
If the tire does not inflate to the recommended tire pressure within 15 minutes, stop and call roadside assistance.
WARNING:
The power plug and the inflation hose may get hot after use and should be handled carefully when unplugging. |
Check the air pressure of your tires as follows:
- Remove the valve cap from the tire valve.
- Attach the air compressor hose onto the valve stem by turning clockwise.
- Push and turn the dial clockwise to the air position.
- If required, turn on the compressor and adjust the tire to the recommended inflation pressure.
- Remove the hoses, reinstall the valve cap on the tire valve and return the kit to the rear of the vehicle.
What to do after the tire has been sealed
After using the kit to seal your tire, replace the sealant canister. Sealant canisters and spare parts can be obtained at an authorized dealer. Empty sealant canisters may be disposed of at home. However, canisters still containing liquid sealant should be disposed of in accordance with local waste disposal regulation.
Removal of the sealant canister from the kit
- Unwrap the dual purpose hose (black tube) from the compressor housing and discard.
- Unwrap the power cord.

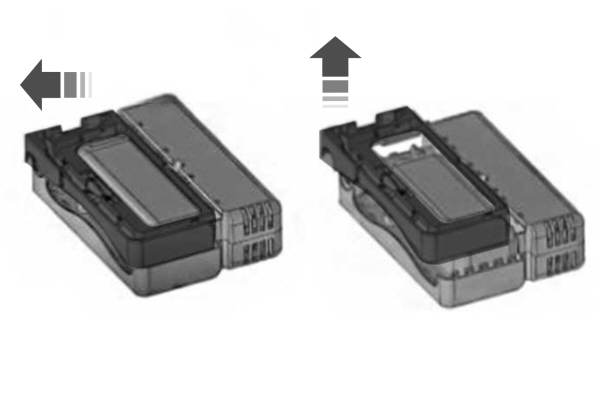

- Unlatch the sealant bottle cover by sliding it outward, then lift and remove the cover.

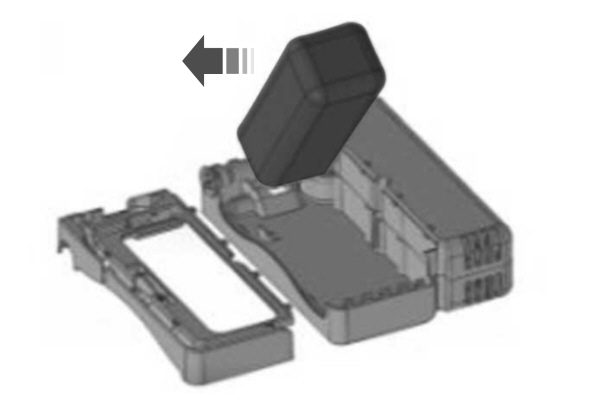

- Rotate the sealant canister up 60 degrees and slide it out from the case/housing to remove.
Installation of the sealant canister to the kit

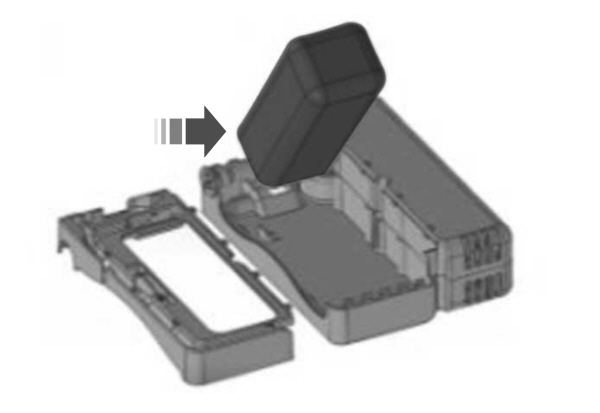

- Hold the canister at an angle to the housing and insert the canister nozzle into the connector. Push the nozzle until seated.
- Rotate the canister 90 degrees into the housing/case.
- Slide the back cover over the canister until it snaps back into place.
- Wrap the new dual-purpose hose (black tube) into the channel around the housing/case.
- Stow the power cord in the side compartment of the housing and stow the accessory power cord into its storage slot on the back cover.
Note:
If you experience any difficulties with the removal or installation of the sealant canister, contact your authorized dealer for assistance. Make sure the sealant compound use by date is on the sealant canister label and can be seen through the rectangular viewing window on the bottom of the kit. Replace the sealant canister after four years of non-use.
