Exterior Mirrors
Power Exterior Mirrors
WARNING:
Do not adjust the mirrors when your vehicle is moving. This could result in the loss of control of your vehicle, serious personal injury or death. |

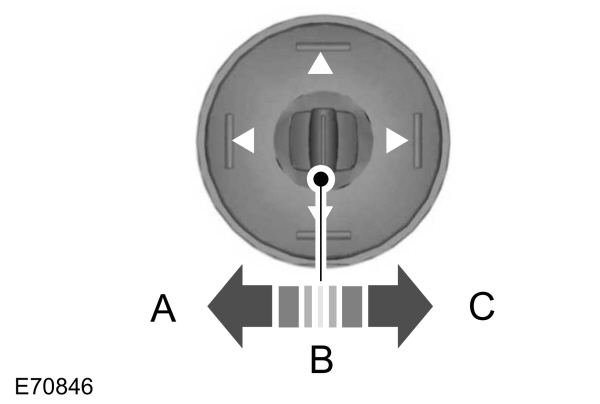

A Left-hand mirrorB OffC Right-hand mirror |

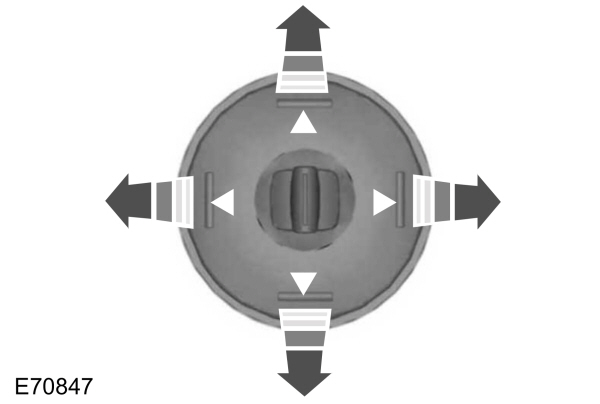

Press the arrows to adjust the mirror.
Fold-Away Exterior Mirrors
Push the mirror toward the door window glass. Make sure that you fully engage the mirror in its support when returning it to its original position.
Heated Exterior Mirrors (If Equipped)
Memory Mirrors (If Equipped)
You can save and recall the mirror positions through the memory function. See
Memory Function.
Signal Indicator Mirrors (If Equipped)
The outer portion of the appropriate mirror housing will blink when you switch on the turn signal.
Puddle Lamps (If Equipped)
The lamps on the bottom part of the mirror housing light when you use your transmitter to unlock the doors or when you open a door.
Integrated Blind Spot Mirrors (If Equipped)
|
WARNING:
Objects in the mirror are closer than they appear. |
Blind spot mirrors have an integrated convex mirror built into the upper outboard corner of the exterior mirrors. They are designed to increase your visibility along the side of your vehicle.
Check the main mirror first before a lane change, then check the blind spot mirror. If no vehicles are present in the blind spot mirror and the traffic in the adjacent lane is at a safe distance, signal that you intend to change lanes. Glance over your shoulder to verify traffic is clear and carefully change lanes.

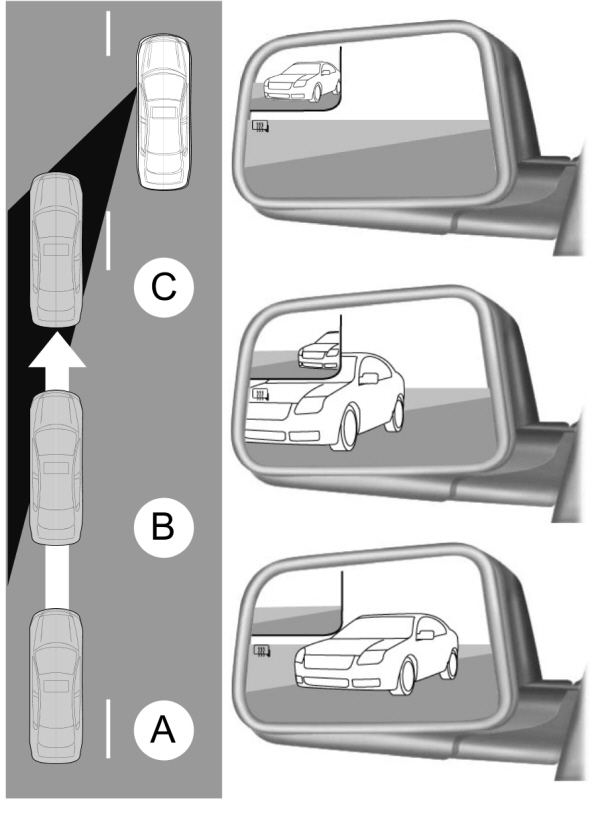

The image of the approaching vehicle is small and near the inboard edge of the main mirror when it is at a distance. The image becomes larger and begins to move outboard across the main mirror as the vehicle approaches (A). The image will transition from the main mirror and begin to appear in the blind spot mirror as the vehicle approaches (B). The vehicle will transition to your peripheral field of view as it leaves the blind spot mirror (C).
Blind Spot Monitor (If Equipped)
