Gauges

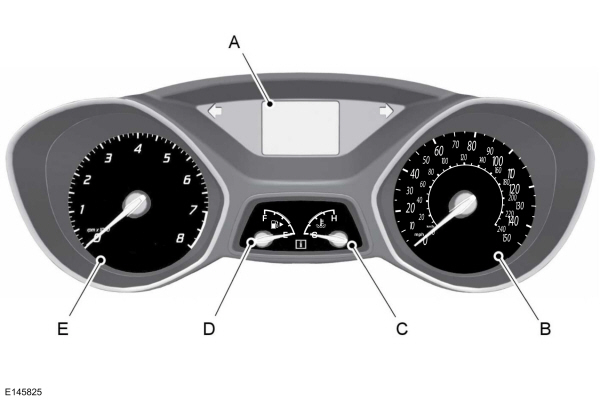

A Information display B SpeedometerC Engine coolant temperature gaugeD Fuel gaugeE Tachometer |
Information Display
Compass (If Equipped)
Displays the vehicle’s heading direction.
To calibrate and set the compass zone use the information display menu. See
Information Displays.
Use the diagram to determine your magnetic zone.
Odometer
Located in the bottom of the information display, it registers the accumulated distance your vehicle has traveled.
Outside Air Temperature
Shows the outside air temperature.
Trip Computer
See
Trip Computer.
Vehicle Settings and Personalization
See
General Information.
Engine Coolant Temperature Gauge
WARNING:
Never remove the coolant reservoir cap while the engine is running or hot. |
At normal operating temperature, the needle will remain in the center section.
Note:
Do not restart the engine until the cause of overheating has been resolved.
If the needle enters the red section, the engine is overheating. Stop the engine, switch the ignition off and determine the cause once the engine has cooled down. See
Engine Coolant Check.
Fuel Gauge
Switch the ignition on. The fuel gauge will indicate approximately how much fuel is left in the fuel tank. The fuel gauge may vary slightly when your vehicle is moving or on a gradient. The arrow adjacent to the fuel pump symbol indicates on which side of the vehicle the fuel filler door is located.
A low fuel reminder will be triggered when the fuel gauge needle is at 1/16th or vehicles equipped with a DTE (Drive To Empty) is at 35 miles (60km), whichever occurs first.
