WARNING   WARNING:  Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

Note:   You can operate your audio system for up to one hour after you switch off the ignition. Press the power control to operate the system with the ignition turned off. The system turns off after one hour.

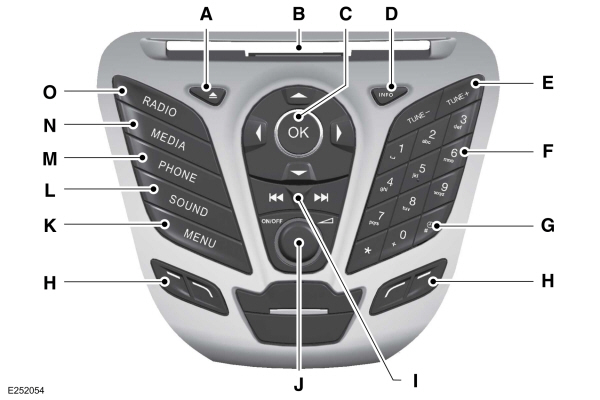

Audio Unit
AEject: Press to eject a CD.
BCD slot: Insert a CD.
COK and cursor arrows: Press the up and down arrow buttons to select the various settings. When you make your selection, press the left and right arrow buttons to change the settings. Press OK to set, or press MENU to exit.
DINFO: Press to access any available radio or CD information.
ETUNE: Press to search through the radio frequency band. The system stops at the first station it finds in that direction.
FNumber block: In radio mode, store and recall your favorite radio stations. To store a radio station, tune to the station, then press and hold a preset button until sound returns. In CD mode, select a track. In phone mode, enter a phone number.
GClock: Press to access the clock setting. Use the center arrow controls to change the hours and minutes. You can also set the clock by pressing MENU and scrolling to Clock Settings. If not in phone mode, press to display the clock.
HFunction buttons: Select different functions of the audio system depending on which mode you are in (such as Radio mode or CD mode).
ISeek, Fast Forward and Reverse: In radio mode, select a frequency band and press either button. The system stops at the first station it finds in that direction. In SIRIUS mode, press to select the next or previous satellite radio station. If you select a specific category (such as jazz, rock or news), press to find the next or previous station in the selected category. In CD mode, press to select the next or previous track. Press and hold to move quickly forward or backward through the current track.
JVol and Power: Turn to adjust the volume. Press to switch the system on and off.
KMENU: Press to access different audio system features. See Menu Structure.
LSOUND: Press to access settings for Treble, Midrange, Bass, Fade and Balance. Use the up and down arrow buttons to select the various settings. When you make your selection, press the left and right arrow buttons to change the settings. Press OK to set or press MENU to exit. Sound settings can be set for each audio source independently.
MPHONE: Press to access the phone features of the SYNC system. See your SYNC information.
NMEDIA: Press to open the media source menu. You can press this multiple times to change to CD or to a SYNC-Media device or scroll through the media sources using the arrow buttons. Press OK to select a source.
ORADIO: Press to listen to the radio or change radio stations. Press the function buttons below the radio screen to select different radio functions.
Menu Structure
Note:   Depending on your system, some options may appear slightly different.
Press MENU.
Press the up and down arrow buttons to scroll through the options.
Press the right arrow to enter a menu. Press the left arrow to exit a menu.
Press OK to confirm a selection.

Radio
Manual Tune   Use the left and right arrows to go up or down the frequency band.
Scan
Select for a brief sampling of all available channels.
AST
Select to store the six strongest local stations on the AM-AST and FM-AST frequency bands.
Set Category for Seek/Scan
Select to have the system search by certain music categories (such as Rock, Pop or Country).
RDS Text Display
Select to view additional broadcast data, if available. This feature defaults to off. RBDS must be on for you to set a category.


SIRIUS
Scan
Select for a brief sampling of all available channels.
Electronic Serial Number (ESN)
Select to view your satellite radio electronic serial number (ESN). You will need this number when communicating with SIRIUS to activate, modify or track your account.
Check Channel Guide
Select to view available satellite radio channels. Press OK to open a list of the following options for this channel. Once you skip or lock a channel, you can only access it by pressing Direct Tune and entering the channel number. Locking or unlocking a channel requires your PIN.
Set Category for Seek/Scan
Select to view channel categories (such as Pop, Rock or News). If you select a category, seek and scan functions only stop on channels in that category.
Alerts
Select to switch alerts on or off for songs, artists or teams. The system alerts you when the selection is playing on another channel. Save up to 20 alerts.
Unlock All Stations   Use your PIN to unlock previously locked stations.
Skip No Stations   Use to restore any channels you previously skipped.
Parental Lockout
Select to create a PIN, which allows you to lock or unlock channels. Your initial PIN is 1234.


Audio Settings
Speed Compensated Volume
Adjusts the volume to compensate for speed and wind noise. You can set the system between 0 and +7.
Sound
Select to adjust settings for Treble, Midrange, Bass, Fade or Balance.
Occupancy Mode
Select to optimize sound quality for the chosen seating position.
DSP
Choose between the stereo modes.


CD Settings
Scan All   Select to scan all disc selections.
Scan Folder   Select to scan all music in the current MP3 folder.
CD Compression   Select to bring soft and loud passages together for a more consistent listening level.


Clock Settings
Set Date and Time
Select to set the time and calendar date.
24 Hour
Select to view clock time in a 12-hour mode or 24-hour mode.


Display Settings
Brightness
Select to change display brightness.
Language
Select to display the language in English, French or Spanish.
Temp. Setting   Select to display the outside temperature in Fahrenheit or Celsius.
