Audio Unit - Vehicles With: AM/FM/CD/SYNC/Satellite Radio
WARNING:
Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving. |
Note:
You can operate your audio system for up to one hour after you switch off the ignition. Press the power control to operate the system with the ignition turned off. The system automatically turns off after one hour.
Note:
Some features, such as SIRIUS satellite radio, may not be available in your location. Check with an authorized dealer.

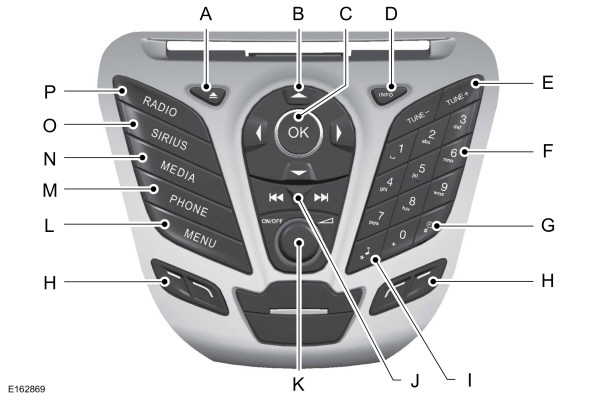

A Eject: Press to eject a CD.B Cursor arrows: Press to scroll through the menu choices.C OK: Press to confirm menu selections.D INFO: Press to access more information depending upon the source selected.E TUNE: In radio mode, press to manually search through the radio frequency band.F Number block: In radio mode, store and recall your favorite radio stations. To store a radio station, tune to the station, then press and hold a preset button until sound returns. In CD mode, select a track. In phone mode, enter a phone number.G Clock: If not in phone mode, press to display the clock.H Function buttons: Select different functions of the audio system depending on which mode you are in (for example Radio mode or CD mode).I Sound: Press to access settings for Treble, Midrange, Bass, Fade or Balance. Use the up and down arrow buttons to select the various settings. When you make your selection, press the left and right arrow buttons to change the settings. Press OK to set or press MENU to exit. Sound settings can be set for each audio source independently.J Seek, Fast Forward and Reverse: In radio mode, select a frequency band and press either button. The system stops at the first station it finds in that direction. In CD mode, press to select the previous or next track. Press and hold to move quickly forward or backward through the current track.K VOL and Power: Press to switch the system on and off. Turn to adjust the volume.L MENU: Press to access different audio system features. See Menu Structure later in this chapter.M PHONE: Press to access the phone features of the SYNC system. See your SYNC information. N MEDIA: Press to open the media source menu. You can press this multiple times to change to CD or to a SYNC-Media device or scroll through the media sources using the arrow buttons. Press OK to select a source.O SIRIUS: Press to listen to SIRIUS satellite radio.P RADIO: Press this multiple times to select a radio band. Press and hold to select the autostore function. Press to return to the main screen of the active radio band. |
