Audio Unit - Vehicles With: Sony AM/FM/CD
WARNING:
Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving. |
Note:
The CD slot is directly above the touchscreen.
Note:
The touchscreen system controls most of the audio features. See your MyFord Touch information.

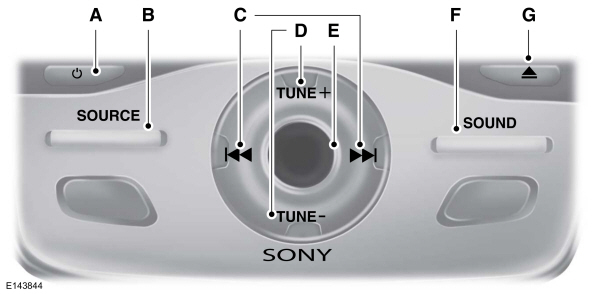

A Power: Press to switch the system on and off.B SOURCE: Press to access different audio modes, for example AM, FM and CD.C Seek, Fast Forward and Reverse: In radio mode, select a frequency band and press this button. The system stops at the first station it finds in that direction. In SIRIUS mode, press to select the next or previous satellite radio station. If a specific category is selected (such as jazz, rock or news), press to find the next or previous in the selected category. In CD mode, press to select the previous or next track. Press and hold to move quickly forward through the current track.D TUNE: In radio mode, press to manually search through the radio frequency band. In SIRIUS mode, press to find the previous or next available satellite radio station.E Volume: Turn to adjust the volume.F SOUND: Press to access settings for Treble, Midrange, Bass, Fade or Balance.G Eject: Press to eject a CD. |
Menu Structure
Note:
Depending on your system, some options may appear slightly different.
Press MENU.
Press the up and down arrow buttons to scroll through the options.
Press the right arrow to enter a menu. Press the left arrow to exit a menu.
Press OK to confirm a selection.
| Radio | |
|---|---|
| Manual tune | Use the left and right arrows to go up or down the frequency band. |
| Scan | Select for a brief sampling of all available channels. |
| AST | Select to store the six strongest local stations on the AM 2 and FM 2 frequency bands. |
| PTY/Set Category | Select to have the system search by certain music categories (such as Rock, Pop or Country). |
| RBDS/RDS | Select to view additional broadcast data, if available. This feature defaults to off. RBDS must be on for you to set a category. |
| SIRIUS | |
|---|---|
| Scan | Select for a brief sampling of all available channels. |
| Show ESN | Select to view your satellite radio electronic serial number (ESN). You will need this number when communicating with Sirius to activate, modify or track your account. |
| Channel Guide | Select to view available satellite radio channels. Press OK to open a list of the following options for this channel: Tune Channel, Skip Channel or Lock Channel. Once you skip or lock a channel, you can only access it by pressing Direct and entering the channel number. Locking or unlocking a channel requires your PIN. |
| Set Category | Select to view channel categories (such as Pop, Rock or News). If you select a category, seek and scan functions only stop on channels in that category. |
| Alerts | Select to turn off or turn on alerts for songs, artists or teams. The system alerts you when the selection is playing on another channel. Save up to 20 alerts. |
| Unlock All Stations | Use your PIN to unlock previously locked stations. |
| Skip No stations | Use to restore any channels you previously skipped. |
| Parental Lock (PIN) | Select to create a PIN, which allows you to lock or unlock channels. Your initial PIN is 1234. |
| Audio Settings | |
|---|---|
| Spd. Comp. Vol. | Automatically adjusts the volume to compensate for speed and wind noise. You can set the system between 0 and +7. |
| Sound | Select to adjust settings for Treble, Midrange, Bass, Fade or Balance. |
| Occupancy Mode | Select to optimize sound quality for the chosen seating position. |
| RBDS/RDS | Select to view additional broadcast data, if available. This feature defaults to off. RBDS must be on for you to set a category. |
| DSP | Choose between the stereo modes. |
| CD Settings | |
|---|---|
| Scan All | Select to scan all disc selections. |
| Scan Folder | Select to scan all music in the current MP3 folder. |
| CD Compression | Select to bring soft and loud passages together for a more consistent listening level. |
| Clock Settings | |
|---|---|
| Set Time | Select to set the time. |
| Set Date | Select to set the calendar date. |
| 24h Mode | Select to view clock time in a 12-hour mode or 24-hour mode. |
| Display Settings | |
|---|---|
| Dimming | Select to change display brightness. |
| Language | Select to display the language in English, French or Spanish. |
| Temp. setting | Select to display the outside temperature in Fahrenheit or Celsius. |
