Climate
Press the lower right corner on the touchscreen to access your climate control features. Depending on your vehicle line and option package, your climate screen may look different from the screen shown here.
Press the voice button on the steering wheel controls. When prompted, say any of the following commands:

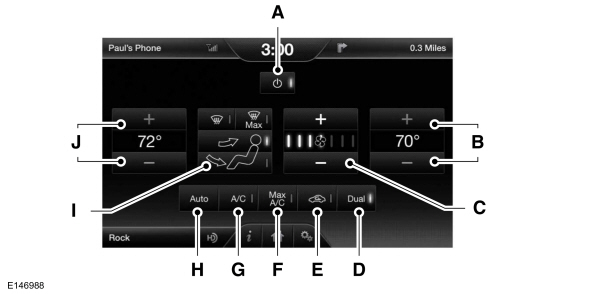

Press the lower right corner on the touchscreen to access your climate control features. Depending on your vehicle line and option package, your climate screen may look different from the screen shown here.A Power: Touch to switch the system off and on. Outside air cannot enter your vehicle when you switch off the system.B Passenger settings: Touch + or – to adjust the temperature.C Fan speed: Touch + or – to adjust fan speed.D DUAL: Touch to switch on the passenger temperature control.E Recirculated air: Touch to turn the recirculated air on or off which may reduce the amount of time needed to cool down the interior and help reduce odors from reaching the interior. Recirculated air also engages automatically when MAX A/C or MAX defrost is selected and may be engaged manually in any airflow mode except defrost. It may also turn off in all airflow modes except MAX A/C and MAX defrost to reduce fog potential.F MAX A/C: Touch to cool your vehicle with recirculated air. Touch again for normal A/C operation. MAX A/C distributes air through instrument panel vents and may help reduce odors from entering your vehicle. MAX A/C is more economical and efficient than normal A/C mode.G A/C: Touch to turn the air conditioning on or off. Use A/C with recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C, defrost and footwell/defrost.H AUTO: Touch to engage automatic operation, then set the temperature using the temperature control. The system automatically controls fan speed, airflow distribution, A/C on or off and the use of fresh or recirculated air.I Manual airflow distribution controls:Footwell and Defrost: Distributes air through the windshield defroster vents, demister vents, floor vents and rear seat floor vents, and provides outside air to reduce window fogging. Panel: Distributes air through the instrument panel vents. Panel and Floor: Distributes air through the instrument panel vents, demister vents, floor vents and rear seat floor vents. Floor: Distributes air through the demister vents, floor vents and rear seat floor vents. Defrost: Touch to clear the windshield of fog and thin ice. Touch again to return to the previous airflow selection. When on, defrost provides outside air to reduce window fogging and distributes air through the windshield defroster vents and demister vents. MAX Defrost: Distributes outside air through the windshield air vents and automatically switches the air conditioning on. The fan is set to the
highest speed and the temperature to HI. When the air distribution is set in this position, you are unable to select recirculated air or manually adjust the fan speed and temperature control.J Driver settings: Touch + or – adjust the temperature. |
Climate Control Voice Commands
Press the voice button on the steering wheel controls. When prompted, say any of the following commands:| Climate control commands |
|---|
| "Climate automatic" |
| "Climate off" |
| "Climate on" |
| "Climate temperature <15.5-29.5> degrees" |
| "Climate temperature <60-85> degrees" |
| "Help" |
There are additional climate control commands but in order to access them, you have to say "Climate" first. When the system is ready to listen, you may say any of the following commands:
| "CLIMATE" |
|---|
| "A/C off" |
| "A/C on" |
| "Automatic" |
| "Defrost off" |
| "Defrost on" |
| "Dual off" |
| "Floor on" |
| "Fan decrease" |
| "Fan increase" |
| "Floor off" |
| "MAX A/C off" |
| "MAX A/C on" |
| "Maximum defrost off" |
| "Maximum defrost on" |
| "Off" |
| "On" |
| "Panel floor on" |
| "Panel off" |
| "Panel on" |
| "Recirc off" |
| "Recirc on" |
| "Temperature"* |
| "Temperature <15.5-29.5> degrees" |
| "Temperature <60-85> degrees" |
| "Temperature decrease" |
| "Temperature high" |
| "Temperature increase" |
| "Temperature low" |
| "Windshield floor on" |
| "Windshield panel floor on" |
| "Help" |
* If you say "Temperature", you can then say any of the commands in the following chart.
| "TEMPERATURE" |
|---|
| "<15.5-29.5> degrees" |
| "<60-85> degrees" |
| "High" |
| "Low" |
| "Help" |
