Fuse Specification Chart
Pre-Fuse Box
Your vehicle is equipped with a pre-fuse box located in the engine compartment attached to the positive battery post. This box contains several high current fuses. If replacement of these high current fuses is required, see your authorized dealer.

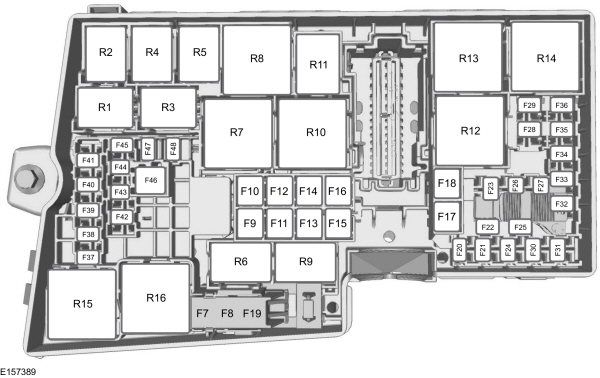

Power Distribution Box
WARNING:
Always disconnect the battery before servicing high current fuses.
WARNING:
To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs. |
The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle's main electrical systems from overloads.
If the battery has been disconnected and reconnected, some features will need to be reset. See
Changing the 12V Battery.
Lift the release lever at the rear of the cover to remove it.
The high-current fuses are coded as follows:
| Fuse or relay number | Fuse amp rating | Protected components |
|---|---|---|
| F7 | 40A** | Anti-lock brake system and electronic stability program pump |
| F8 | 30A** | Electronic stability program valve |
| F9 | - | Not used |
| F10 | 40A** | Heater blower motor |
| F11 | - | Not used |
| F12 | 30A** | Powertrain control module relay fuse |
| F13 | 30A** | Starter relay |
| F14 | 25A** | Rear power window (without door control unit) |
| F15 | 20A** | Front cigar lighter or power outlet |
| F16 | 25A** | Front power window (without door control unit) |
| F17 | 20A** | Rear power outlet |
| F18 | 20A** | Center power outlet |
| F19 | 5A* | Anti-lock brake system and electronic stability program 15 feed |
| F20 | 15A* | Horn |
| F21 | 5A* | Stop light switch |
| F22 | 15A* | Battery monitor system |
| F23 | 5A* | Relay coils |
| F24 | 5A* | Light switch module |
| F25 | 10A* | Power exterior mirror (without door control unit) |
| F26 | 5A* | Keep-alive power |
| F27 | 15A* | Air conditioner clutch |
| F28 | 10A* | Vehicle power - fuel injector |
| F29 | 25A* | Rear window defroster |
| F30 | - | Not used |
| F31 | 5A* | Power transfer unit oil cooling fan (Middle East specification) |
| F32 | 15A* | Vehicle power |
| F33 | 10A* | Vehicle power 2 |
| F34 | 10A* | Vehicle power 3 |
| F35 | 15A* | Vehicle power 4 |
| F36 | 5A* | Active grill shutters |
| F37 | 10A* | Occupant classification sensor, Passenger airbag deactivation indicator feed |
| F38 | 5A* | Engine control module and transmission control module ignition feed |
| F39 | 5A* | Daytime running lamps and headlamp control module ignition feed |
| F40 | 5A* | Electronic power assist steering 15 feed |
| F41 | 20A* | Body control module 15 feed |
| F42 | 15A* | Rear wiper |
| F43 | 15A* | Headlamp control module supply |
| F44 | 15A* | Front fog daytime running lamps |
| F45 | - | Not used |
| F46 | 50A** | Smart wiper motor modules |
| F47 | - | Not used |
| F48 | 5A* | Keypad |
| R1 | - | Not used |
| R2 | Micro relay | Horn |
| R3 | - | Power transfer unit oil cooling fan (Middle East specification) |
| R4 | - | Front fog daytime running lamps |
| R5 | - | Not used |
| R6 | - | Not used |
| R7 | - | Not used |
| R8 | Mini relay | Delayed accessory relay |
| R9 | - | Not used |
| R10 | Mini relay | Starter relay |
| R11 | Micro relay | Air conditioner clutch |
| R12 | Power relay | Cooling fan |
| R13 | Mini relay | Heater blower |
| R14 | Mini relay | Engine control relay |
| R15 | Power relay | Heated rear window |
| R16 | Power relay | Ignition 15 |
*Mini fuses **Cartridge fuses

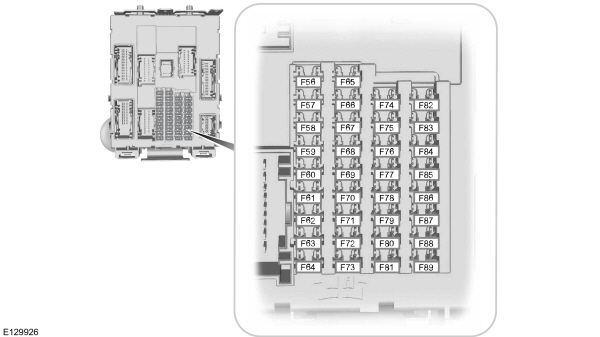

Passenger Compartment Fuse Panel
The fuse panel is located on the right side below the glove box.
The fuses are coded as follows:
| Fuse or relay number | Fuse amp rating | Protected components |
|---|---|---|
| 56 | 20A | Fuel pump supply, Air mass meter |
| 57 | - | Not used |
| 58 | - | Not used |
| 59 | 5A | Passive anti-theft transceiver |
| 60 | 10A | Interior light, Driver door switch pack, Glove box illumination, Overhead console switch bank |
| 61 | 20A | Cigar lighter, Power point |
| 62 | 5A | Rain sensor module, Auto-dimming mirror |
| 63 | - | Not used |
| 64 | - | Not used |
| 65 | 10A | Liftgate release |
| 66 | 20A | Driver door unlock supply, Double lock |
| 67 | 7.5A | SYNC, Multifunction display, Global positioning system module |
| 68 | - | Not used |
| 69 | 5A | Instrument cluster |
| 70 | 20A | Central lock and unlock supply |
| 71 | 10A | Heating control head (manual air conditioner), Dual electronic automatic temperature control |
| 72 | 7.5A | Steering wheel module |
| 73 | 5A | Data link connector |
| 74 | 15A | High beam headlamp supply |
| 75 | 15A | Fog lamp supply |
| 76 | 10A | Reversing lamp supply |
| 77 | 20A | Windshield washer supply |
| 78 | 5A | Ignition switch, Start button |
| 79 | 15A | Radio, Navigation DVD player, Touch screen, Hazard light switch, Door lock switch |
| 80 | 20A | Moonroof supply |
| 81 | 5A | Radio frequency receiver |
| 82 | 20A | Windshield washer relay |
| 83 | 20A | Central locking |
| 84 | 20A | Drive door unlock supply, Double lock |
| 85 | 7.5A | Electronic 15 feed |
| 86 | 10A | Air bag module, Occupant classification system, Passenger air bag deactivation indicator |
| 87 | - | Not used |
| 88 | - | Not used |
| 89 | - | Not used |

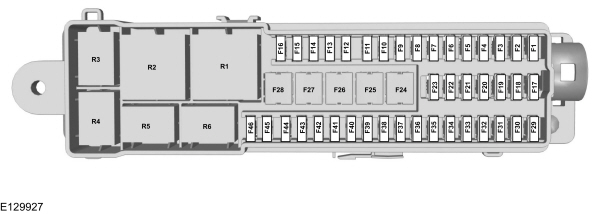

Luggage Compartment Fuse Panel
The fuse panel is located in the luggage compartment behind the passenger's side wheel well. Remove the fuse panel cover to gain access to the fuses.
The fuses are coded as follows:
| Fuse or relay number | Fuse amp rating | Protected components |
|---|---|---|
| F1 | 5A | Hands-free liftgate entry module |
| F2 | 10A | Keyless vehicle module |
| F3 | 5A | Keyless vehicle door handles |
| F4 | 25A | Door control unit front left |
| F5 | 25A | Door control unit front right |
| F6 | 25A | Door control unit rear left |
| F7 | 25A | Door control unit rear right |
| F8 | - | Not used |
| F9 | 25A | Driver seat motor |
| F10 | 5A | Driver seat memory module logic feed |
| F11 | 5A | Rear ignition coil feed |
| F12 | - | Not used |
| F13 | - | Not used |
| F14 | - | Not used |
| F15 | - | Not used |
| F16 | - | Not used |
| F17 | - | Not used |
| F18 | - | Not used |
| F19 | - | Not used |
| F20 | - | Not used |
| F21 | - | Not used |
| F22 | - | Not used |
| F23 | 25A | Audio amplifier |
| F24 | 30A | DC/AC power converter |
| F25 | 25A | Power liftgate |
| F26 | 40A | Accessories / Trailer tow module 30 feed 1 |
| F27 | - | Not used |
| F28 | - | Not used |
| F29 | 5A | Blind spot detection system, Rear view camera with park assist |
| F30 | 5A | Parking aid module |
| F31 | - | Not used |
| F32 | 5A | DC/AC power converter |
| F33 | - | Not used |
| F34 | 20A | Driver seat heater |
| F35 | 20A | Passenger seat heater |
| F36 | - | Not used |
| F37 | 5A | Moonroof |
| F38 | - | Not used |
| F39 | - | Not used |
| F40 | - | Not used |
| F41 | - | Not used |
| F42 | - | Not used |
| F43 | - | Not used |
| F44 | - | Not used |
| F45 | - | Not used |
| F46 | - | Not used |
| R1 | Power relay | Rear 15 relay |
| R2 | - | Not used |
| R3 | - | Not used |
| R4 | - | Not used |
| R5 | - | Not used |
| R6 | - | Not used |
