Gauges
Type 1 and 2

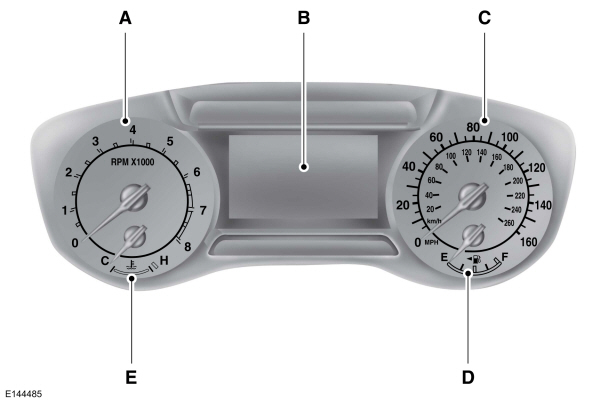

A Tachometer B Information Display (Type 2 shown Type 1 similar)C SpeedometerD Fuel GaugeE Engine Coolant Temperature Gauge |
Information Display
Odometer
Located in the bottom of the information display Registers the accumulated distance your vehicle has traveled.
Compass
Displays the vehicle’s heading direction.
Trip Computer
See
General Information.
Vehicle Settings and Personalization
See
General Information.
Engine Coolant Temperature Gauge
Shows the temperature of the engine coolant. At normal operating temperature, the needle will remain in the center section. If the needle enters the red section, the engine is overheating. Stop the engine, switch the ignition off and determine the cause once the engine has cooled down.
Note:
Do not restart the engine until the cause of overheating has been resolved.
WARNING:
Never remove the coolant reservoir cap while the engine is running or hot. |
Fuel Gauge
Note:
The fuel gauge may vary slightly when your vehicle is moving or on a gradient.
Switch the ignition on. The fuel gauge will indicate approximately how much fuel is left in the fuel tank. The arrow adjacent to the fuel pump symbol indicates on which side of your vehicle the fuel filler door is located.
The needle should move toward F when you refuel your vehicle. If the needle points to E after adding fuel, this indicates your vehicle needs service soon.
After refueling some variability in needle position is normal:
- It may take a short time for the needle to reach full after leaving the gas station. This is normal and depends upon the slope of pavement at the gas station.
- The fuel amount dispensed into the tank is a little less or more than the gauge indicated. This is normal and depends upon the slope of pavement at the gas station.
- If the gas station nozzle shuts off before the tank is full, try a different gas pump nozzle.
- There is a small reserve left in the tank when the fuel gauge reaches empty.
Low Fuel Reminder
A low fuel reminder triggers when the distance to empty reaches about 50 miles (80 km) to empty.
Variations:
Note:
The low fuel reminder can appear at different fuel gauge positions depending on fuel economy conditions. This variation is normal.
Type 3

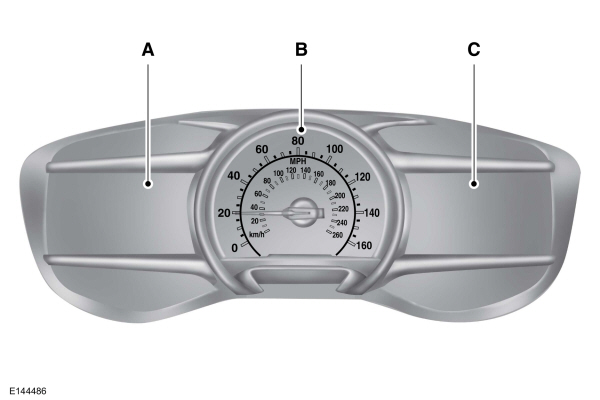

| ALeft Information Display B SpeedometerC Right Information Display See
General Information.
|
Left Information Display
Odometer
Located in the bottom of the information display Registers the accumulated distance your vehicle has traveled.
Trip Computer
See
General Information.
Vehicle Settings and Personalization
See
General Information.
