WARNING   WARNING:  Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

Note:   The MyFord Touch system controls most of the audio features.   See   MyFord Touch™.

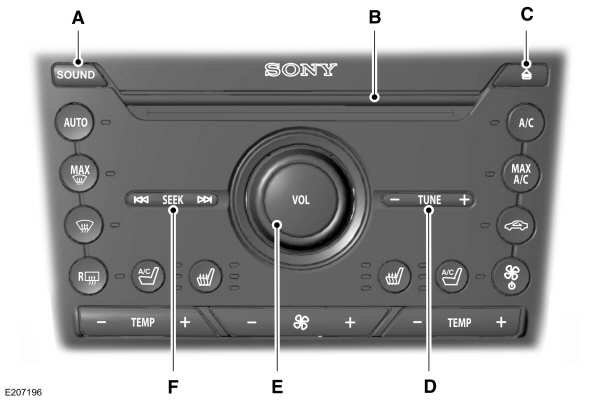

Sony Audio Unit
ASOUND: Press this button to access settings for Treble, Midrange, Bass, Fade or Balance.
BCD slot: Insert a CD.
CEject: Press this button to eject a CD.
DTUNE: Press these buttons to search the frequency bands in individual increments.
EVOL: Turn the control to adjust the volume. Press the button to switch the system on and off.
FSEEK: In radio mode, select a frequency band and press one of these buttons. The system stops at the first station it finds in that direction. Press and hold one of these buttons to move quickly in that direction to the next strong radio station or memory preset. In CD mode, press one of these buttons to select the previous or next track. Press and hold one of these buttons to move quickly in that direction within the current track.
Menu Structure
Note:   Depending on your system, some options may appear slightly different.
Press MENU.
Press the up and down arrow buttons to scroll through the options.
Press the right arrow to enter a menu. Press the left arrow to exit a menu.
Press OK to confirm a selection.

Radio
Manual tune   Use the left and right arrows to go up or down the frequency band.
Scan   Select for a brief sampling of all available channels.
AST   Select to store the six strongest local stations on the AM-AST and FM-AST frequency bands.
PTY/Set Category   Select to have the system search by certain music categories (such as Rock, Pop or Country).
RBDS/RDS   Select to view additional broadcast data, if available. This feature defaults to off. RBDS must be on for you to set a category.


SIRIUS
Scan   Select for a brief sampling of all available channels.
Show ESN   Select to view your satellite radio electronic serial number (ESN). You will need this number when communicating with Sirius to activate, modify or track your account.
Channel Guide   Select to view available satellite radio channels. Press OK to open a list of the following options for this channel: Tune Channel, Skip Channel or Lock Channel. Once you skip or lock a channel, you can only access it by pressing Direct and entering the channel number. Locking or unlocking a channel requires your PIN.
Set Category   Select to view channel categories (such as Pop, Rock or News). If you select a category, seek and scan functions only stop on channels in that category.
Alerts   Select to turn off or turn on alerts for songs, artists or teams. The system alerts you when the selection is playing on another channel. Save up to 20 alerts.
Unlock All Stations   Use your PIN to unlock previously locked stations.
Skip No stations   Use to restore any channels you previously skipped.
Parental Lock (PIN)   Select to create a PIN, which allows you to lock or unlock channels. Your initial PIN is 1234.


Audio Settings
Speed Compensated Volume   Automatically adjusts the volume to compensate for speed and wind noise. You can set the system between 0 and +7.
Sound   Select to adjust settings for Treble, Midrange, Bass, Fade or Balance.
Occupancy Mode   Select to optimize sound quality for the chosen seating position.
RBDS/RDS Text   Select to view additional broadcast data, if available. This feature defaults to off. RBDS must be on for you to set a category.
DSP   Choose between the stereo modes.


CD Settings
Scan All   Select to scan all disc selections.
Scan Folder   Select to scan all music in the current MP3 folder.
CD Compression   Select to bring soft and loud passages together for a more consistent listening level.


Clock Settings
Set Time   Select to set the time.
Set Date   Select to set the calendar date.
24h Mode   Select to view clock time in a 12-hour mode or 24-hour mode.


Display Settings
Dimming   Select to change display brightness.
Language   Select to display the language in English, French or Spanish.
Temp. setting   Select to display the outside temperature in Fahrenheit or Celsius.
