Fuse Specification Chart - Vehicles Built Up To: 04-01-2013

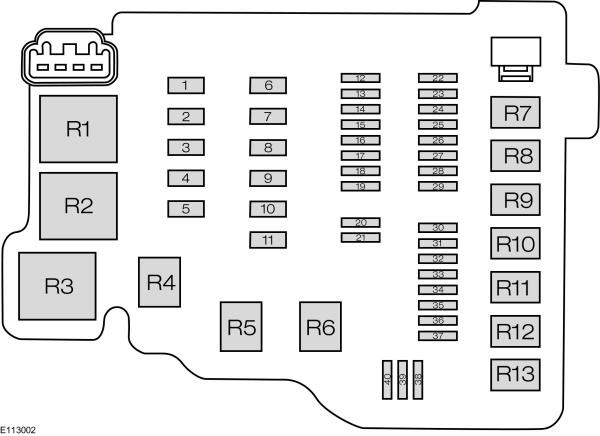

Engine Compartment Fuse Box
| Fuse | Fuse rating | Circuits protected |
|---|---|---|
| 1 | 40 A | Anti-lock braking system module |
| 1 | 30 A | Anti-lock braking system, electronic stability program module |
| 2 | 60 A | Cooling system fan high speed |
| 3 | 40 A | Cooling system fan |
| 3 | 30 A | Cooling system fan low speed |
| 4 | 30 A | Heater blower |
| 5 | 60 A | Passenger's compartment fuse box supply (battery) |
| 6 | 30 A | Body control module |
| 7 | 60 A | Passenger's compartment fuse box supply (ignition) |
| 8 | 60 A | Glow plugs |
| 8 | 50 A | DPS6 module |
| 9 | 40 A | Heated windshield |
| 10 | 40 A | Heated windshield |
| 11 | 30 A | Starter relay |
| 12 | 10 A | High beam left-hand relay |
| 13 | 10 A | High beam right-hand relay |
| 14 | 15 A | Run on pump |
| 15 | 20 A | Ignition coil |
| 16 | 15 A | Powertrain control module, high and low cooling fan |
| 17 | 15 A | Heated oxygen sensors (gasoline engines) |
| 17 | 20 A | Power supply module (diesel engines) |
| 18 | - | Not used |
| 19 | 7.5A | Air condition controller |
| 20 | - | Not used |
| 21 | - | Not used |
| 22 | 15 A | Lighting control battery supply |
| 23 | 15 A | Front fog lamps |
| 24 | 15 A | Direction indicators |
| 25 | 15 A | Exterior lighting left-hand side |
| 26 | 15 A | Exterior lighting right-hand side |
| 27 | 7.5 A | Powertrain control module |
| 28 | 20 A | Anti-lock braking system, electronic stability program |
| 29 | 10 A | Air conditioning clutch |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | 20 A | Horn, battery saver, keyless vehicle module |
| 33 | 20 A | Heated rear window |
| 34 | 20 A | Fuel pump relay, diesel fuel heater |
| 35 | 15 A | Cat1 alarm system |
| 36 | 7.5A | Automatic transmission controller |
| 37 | 25 A | Front door module left-hand side |
| 38 | 25 A | Front door module right-hand side |
| 39 | 25 A | Rear door module left-hand side |
| 40 | 25 A | Rear door module right-hand side |
| Relay | Circuits switched |
|---|---|
| R1 | Cooling system fan |
| R2 | Not used |
| R3 | Powertrain control module |
| R4 | High beam |
| R5 | Not used |
| R6 | Not used |
| R7 | Engine cooling fan |
| R8 | Starter |
| R9 | Air conditioning clutch |
| R10 | Front fog lamps |
| R11 | Fuel pump, diesel fuel heater |
| R12 | Reversing lamp |
| R13 | Heater blower |

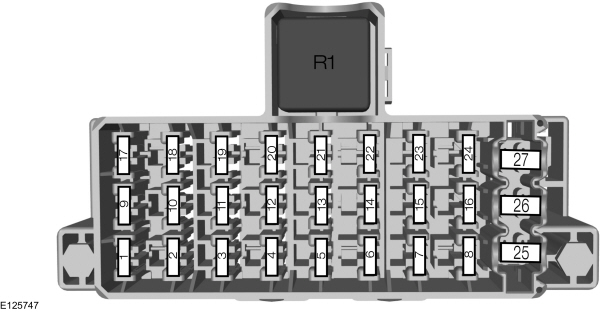

Passenger's Compartment Fuse Box - Type 1
| Fuse | Fuse rating | Circuits protected |
|---|---|---|
| 1 | 7.5 A | Ignition, rain sensor, heated windshield |
| 2 | 10 A | Stop lamps |
| 3 | 7.5 A | Reversing lamp, rear view camera |
| 4 | 7.5 A | Headlamp leveling |
| 5 | - | Not used |
| 6 | 15 A | Rear window wiper |
| 7 | 15 A | Washer pump |
| 8 | - | Not used |
| 9 | 15 A | Passenger's heated seat |
| 10 | 15 A | Driver's heated seat |
| 11 | - | Not used |
| 12 | 10 A | Airbag module |
| 13 | 10 A | Ignition, electric power assisted steering, instrument cluster, passive anti-theft system, anti-lock braking system |
| 14 | 7.5 A | Powertrain control module, transmission selector lever, fuel pump |
| 15 | 7.5 A | Audio system, instrument cluster |
| 16 | 7.5 A | Heated windshield |
| 17 | - | Not used |
| 18 | - | Not used |
| 19 | 15 A | Data link connector |
| 20 | 20 A | Multi function display, clock, internal scanner, heating vents, air conditioning panel |
| 21 | 15 A | Audio system, navigation, bluetooth |
| 22 | 7.5 A | Instrument cluster |
| 23 | 7.5 A | Trailer module |
| 24 | 7.5 A | Sync module antenna |
| 25 | - | Not used |
| 26 | 30 A | Front wiper, left-hand side |
| 27 | 30 A | Front wiper, right-hand side |
| Relay | Circuits switched |
|---|---|
| R1 | Ignition |

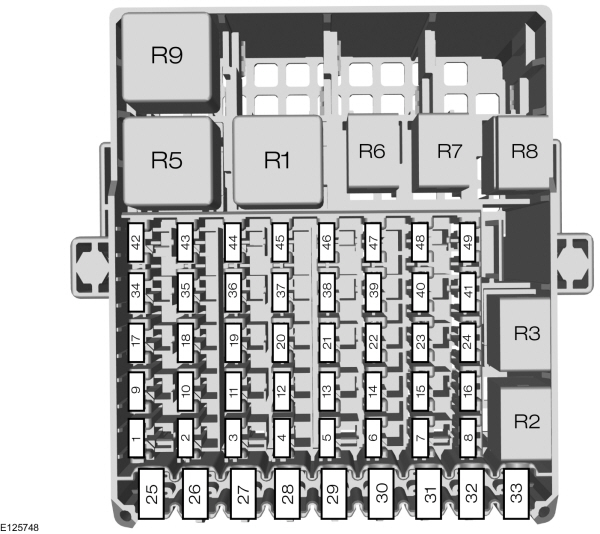

Passenger's Compartment Fuse Box - Type 2
| Fuse | Fuse rating | Circuits protected |
|---|---|---|
| 1 | 7.5 A | Ignition, rain sensor, heated windshield, dome lamp, interior mirror |
| 2 | 10 A | Stop lamps |
| 3 | 7.5 A | Reversing lamp |
| 4 | 7.5 A | Headlamp leveling |
| 5 | - | Not used |
| 6 | 15 A | Rear window wiper |
| 7 | 15 A | Washer pump |
| 8 | - | Not used |
| 9 | 15 A | Passenger's heated seat |
| 10 | 15 A | Driver's heated seat |
| 11 | - | Not used |
| 12 | 10 A | Airbag module |
| 13 | 10 A | Ignition, electric power assisted steering, instrument cluster, passive anti-theft system, anti-lock braking system |
| 14 | 7.5 A | Powertrain control module, gear selector lever, fuel pump |
| 15 | 7.5 A | Audio system, instrument cluster |
| 16 | 7.5 A | Heated windshield right-hand side |
| 17 | - | Not used |
| 18 | - | Not used |
| 19 | 10 A | Data link connector |
| 20 | 20 A | Trailer module |
| 21 | 15 A | Audio system, navigation |
| 22 | 7.5 A | Instrument cluster |
| 23 | 7.5 A | Multi functional display, clock, internal scanner, heating vents, air conditioning panel |
| 24 | 10 A | Sync module |
| 25 | - | Not used |
| 26 | 30 A | Front wiper, left-hand side |
| 27 | 30 A | Front wiper, right-hand side |
| 28 | 30 A | Voltage quality module |
| 29 | 20 A | Rear power point |
| 30 | 20 A | Cigar lighter, front power point |
| 31 | - | Not used |
| 32 | - | Not used |
| 33 | - | Not used |
| 34 | 20 A | Keyless entry |
| 35 | 20 A | Keyless entry |
| 36 | 10 A | Data link connector |
| 37 | 15 A | Ignition switch |
| 38 | - | Not used |
| 39 | - | Not used |
| 40 | - | Not used |
| 41 | - | Not used |
| 42 | 7.5 A | Rear view camera |
| 43 | 10 A | Active city stop module |
| 44 | - | Not used |
| 45 | - | Not used |
| 46 | - | Not used |
| 47 | - | Not used |
| 48 | - | Not used |
| 49 | - | Not used |
| Relay | Circuits switched |
|---|---|
| R1 | Ignition |
| R2 | Cigar lighter |
| R3 | Not used |
| R4 | Active city stop relay |
| R5 | Not used |
| R6 | Keyless entry (accessory) |
| R7 | Keyless entry (ignition) |
| R8 | Battery saver relay |
| R9 | Heated front screen left-hand side |
| R10 | Heated front screen right-hand side |
| R11 | Not used |
| R12 | Not used |
