Power Seats
WARNING:
Do not adjust the driver seat or seat backrest when your vehicle is moving. This may result in sudden seat movement, causing the loss of control of your vehicle.
WARNING:
Do not place cargo or any objects behind the seatback before returning it to the original position. |
Air-Ride Seat

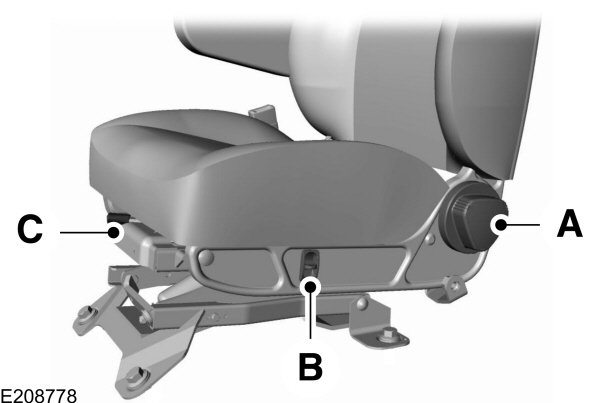

Type 1
A. Rotate the handle to adjust the angle of the seat backrest.B. Pull the control up to raise the seat. Push the control down to lower the seat. C Move the lever to the left to move the seat forward or backward. Release the lever to lock the seat in position. |

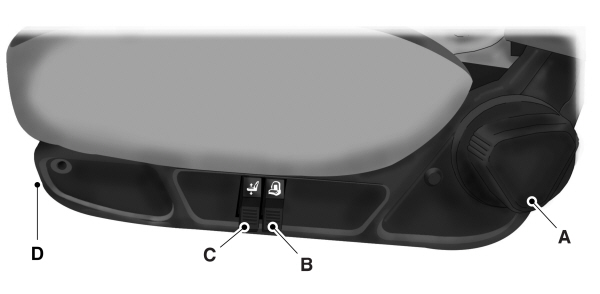

Type 2
| A.Rotate the handle to adjust the angle of the seat backrest. B. Pull the lever up to inflate the lumbar. Push the lever down to deflate the lumbar.C. Pull the lever up to raise the seat height. Push the lever down to lower the seat height.D Move the lever to the left to move the seat forward or backward. Release the lever to lock the seat in position. |
