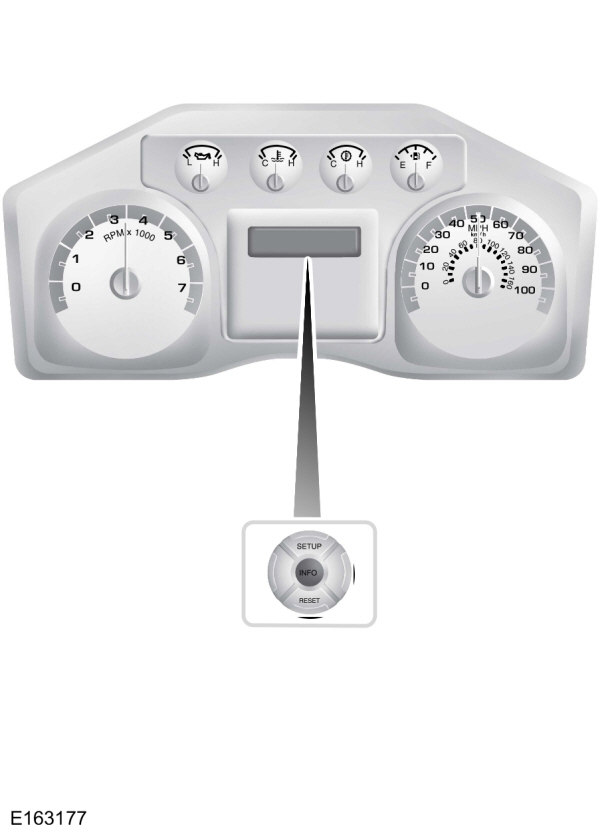

You can control various systems on your vehicle using the information display controls on the steering wheel. The information display provides the corresponding information.

Press the INFO button repeatedly to cycle through the following features:

Registers the distance of individual journeys. Press and release the INFO button until TRIP A/B appears in the display (this represents the trip mode). Press and hold the RESET button to reset.

This displays the outside temperature.

For more information,   See   Principle of Operation.

This displays an estimate of approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to detect the correct amount of added fuel.

The system calculates the distance to empty by using a running average fuel economy, which uses your recent driving history of 500 miles (800 km).

This value is not the same as the average fuel economy display. The running average fuel economy resets to a factory default value if the battery is disconnected.

Average fuel economy displays your average fuel economy in miles per gallon or liters/100 km.

Displays the instantaneous fuel economy as a bar graph. Your vehicle must be moving to calculate instantaneous fuel economy. You cannot reset the instantaneous fuel economy.

Displays the trip elapsed drive time. Press and release RESET to pause the timer. Press and hold RESET to reset the timer.

Displays the level of trailer brake gain or if the trailer is not connected.

For more information, refer to the Diesel supplement.

Press the SETUP button repeatedly to cycle the information display through the following features:

The information display will begin to cycle through the vehicle systems and provide a status of the item if needed.

Displays the remaining oil life. An oil change is required whenever indicated by the information display and according to the recommended maintenance schedule. USE ONLY RECOMMENDED ENGINE OILS.

To reset the oil monitoring system to 100% after each oil change, perform the following:

Displays the current units English or Metric

This feature keeps your headlights on for up to three minutes after the ignition is switched off.

This feature automatically locks all vehicle doors when the vehicle is shifted into any gear, putting the vehicle in motion.

This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off.

This feature allows for an extra swipe of the wipers after a wipe/wash cycle.

For more information,   See   Creating a MyKey.

This feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected.

Allows you to choose the trailer brake mode.

Allows you to choose the level of initial braking.

This feature uses the electronic stability control to mitigate trailer sway.

Allows you to choose which language the message center will display in.

Waiting four seconds or pressing the RESET button cycles the message center through each of the language choices.

Press the RESET button to set the language choice.

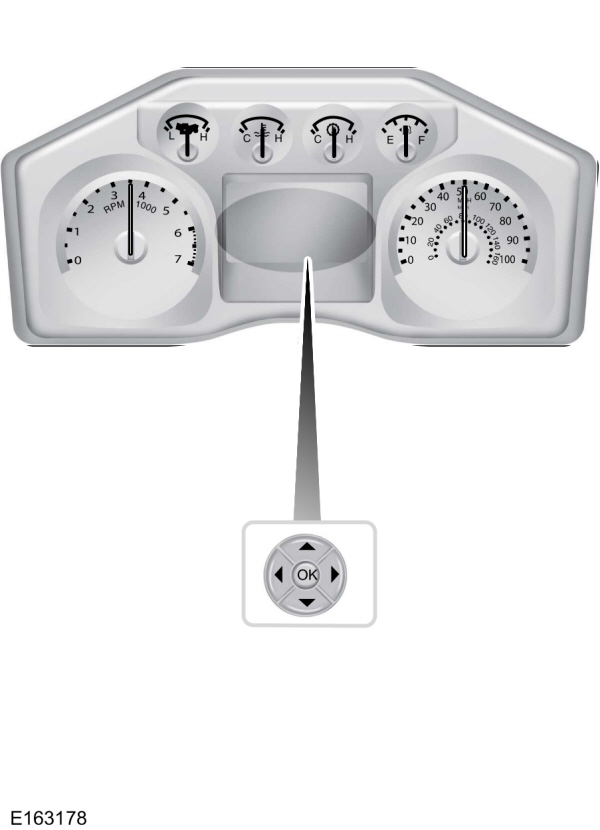

You can access the menus using the information display control.

Press OK to pause the Trip A or B screen, press again to un-pause.

Press and hold OK to reset the currently displayed trip information.

This shows the elapsed trip time. The timer will stop when your vehicle is turned off and will restart when your vehicle is restarted.

Registers the mileage of individual journeys.

Shows the amount of fuel used for a given trip.

Shows the average distance traveled per unit of fuel used for a given trip.

Shows your instantaneous fuel usage.

Shows the approximate distance your vehicle can travel before running out of fuel.

Shows the average fuel usage based on time. Press and hold OK to reset this value.

Shows fuel usage as a bar graph based on time. The graph is updated each minute with the fuel economy that was achieved during the prior 5, 10, 30 minutes of driving.

Disregard this status if your vehicle is not equipped with a factory installed trailer brake controller. This message may appear when an aftermarket TBC is used even when the trailer is connected.

When this is highlighted, press the right arrow key to change the currently selected trailer. Use the up and down arrows to select a trailer and press the OK button to choose the highlighted trailer.

Use the up/down arrows to highlight New Trailer and press the right arrow key to enter the New Trailer input screen. Use the up/down arrow keys to choose alpha, numeric and symbol characters and then press the right arrow to move the character space over. Continue adding characters as needed. Press the left arrow to go back and change a previously selected character. When finished with the new trailer name, press OK to accept the new trailer name.

Use the up/down arrows to highlight one of these choices and press OK to display the connection checklist. Follow the on-screen instructions to go through the connections list.

Use the up/down arrows to highlight the trailer you want to delete and press OK to delete. Follow the on-screen prompts to exit or confirm delete.

Use the up/down buttons to highlight a trailer and press OK to select it. Use the up/down arrow buttons to change the characters as needed. When done, press OK to accept the change.

Use the up/down buttons to select a trailer, then press and hold OK to reset the trailer mileage (kilometers).

The compass heading will display in the upper right corner of the information display; the transmission gear indicator displays in the right side of the information display when using the SelectShift Automatic™ transmission feature. These displays will not be shown in all screen modes. For example: when programming certain vehicle features or in certain information menus.
