WARNING:
Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated. |
Note:
If the bulb is accidentally touched, clean it with rubbing alcohol before installing it.
Lamp Assembly Condensation
Exterior lamps are vented to accommodate normal changes in pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a thin film of mist can form on the interior of the lens. The thin mist eventually clears and exits through the vents during normal operation. Clearing time may take as long as 48 hours under dry weather conditions.
Examples of acceptable condensation are:
- Presence of thin mist (no streaks, drip marks or droplets).
- Fine mist covers less than 50% of the lens.
Examples of unacceptable moisture (usually caused by a lamp water leak) are:
- Water puddle inside the lamp.
- Large water droplets, drip marks or streaks present on the interior of the lens.
Take your vehicle to a dealer for service if any of the above conditions of unacceptable moisture are present.
Accessing the Halogen High Beam, Low Beam and Direction Indicator Bulbs
- Rotate the steering wheel to the opposite side of the bulb needing replacement.

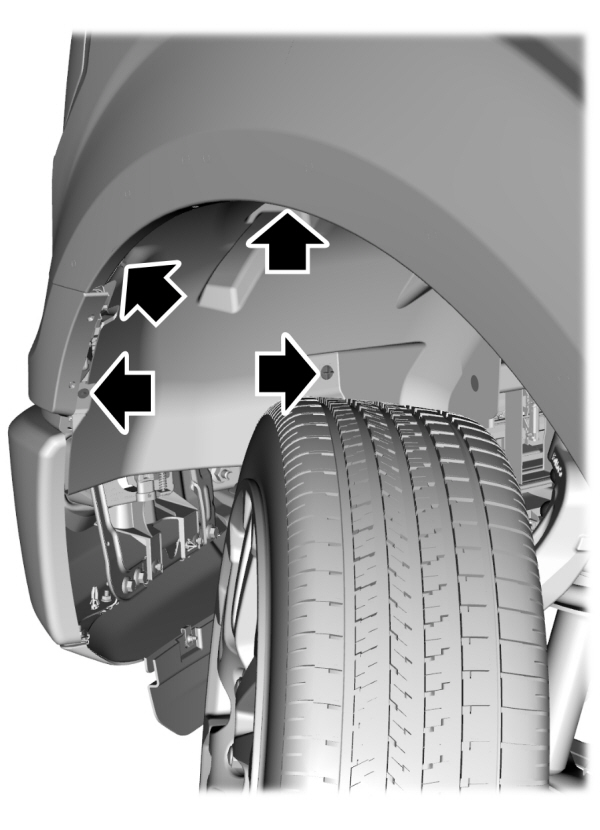

- Remove two screws and one push pin from the front of the wheel liner.

- Pull the wheel liner back towards the tire to gain access to the bulbs.
Replacing the Halogen High Beam, Low Beam and Direction Indicator Bulbs

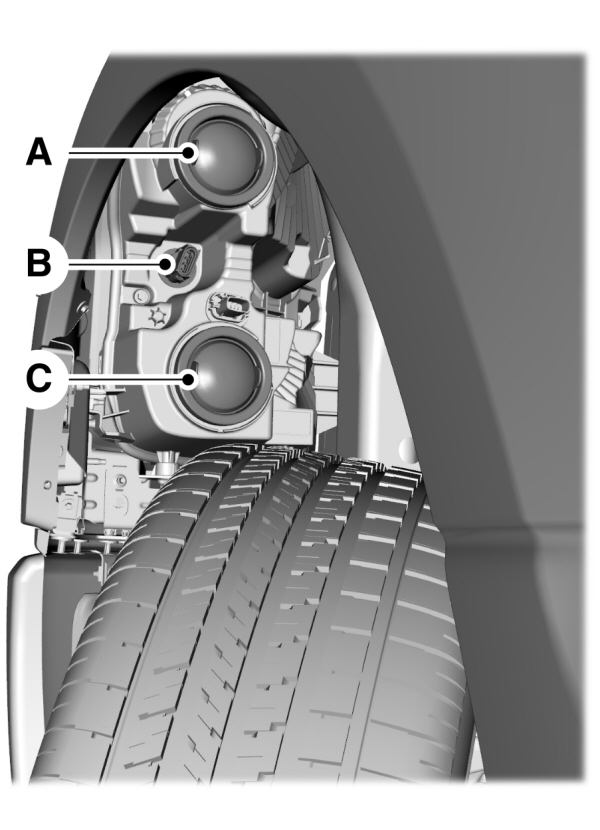

A. Low beam headlamp bulb. B. Direction indicator bulb. C. High beam headlamp bulb.
|

- Make sure the headlamps are off.

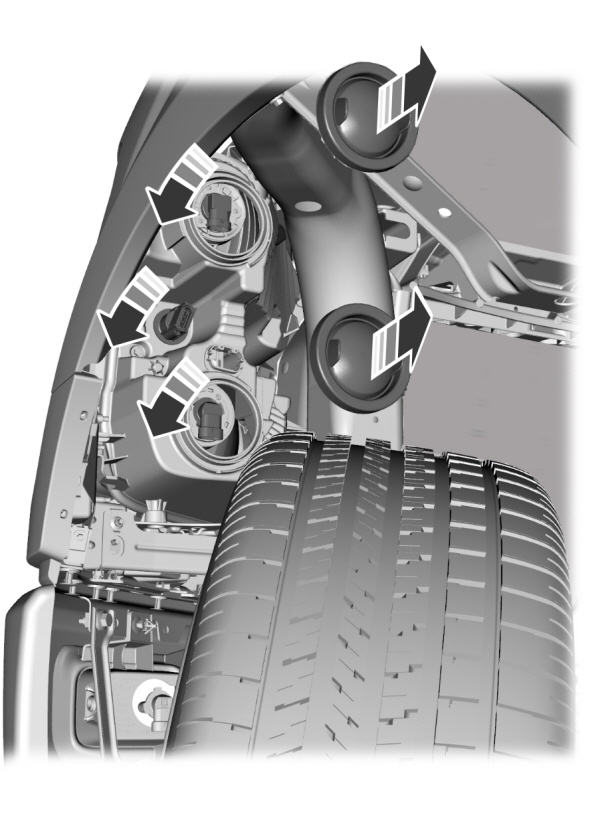

- For the high beam and low beam bulbs, remove the rubber cap to access the bulbs.
- Remove the bulb holder from the lamp assembly by turning it counterclockwise and pulling it straight out.
- Disconnect the bulb from the electrical connector.
- Install the new bulb in reverse order.
Replacing Side Marker Bulb

- Make sure the headlamps are off.

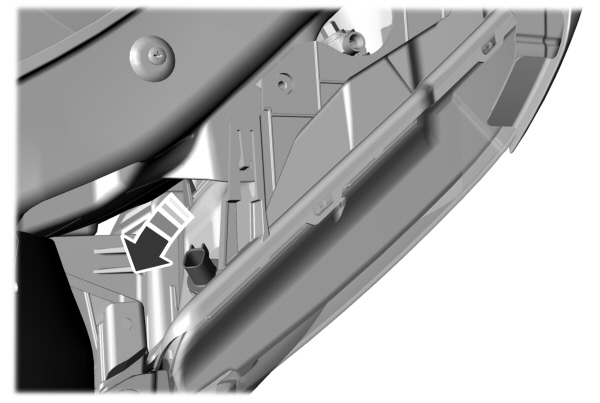

- With the hood open, locate the side marker on the top of the headlamp assembly.
- Remove the bulb holder from the lamp assembly by turning it counterclockwise and pulling it straight out.
- Install the new bulb in reverse order.
Replacing Fog Lamp Bulbs (If Equipped)

- Make sure the fog lamps are off.

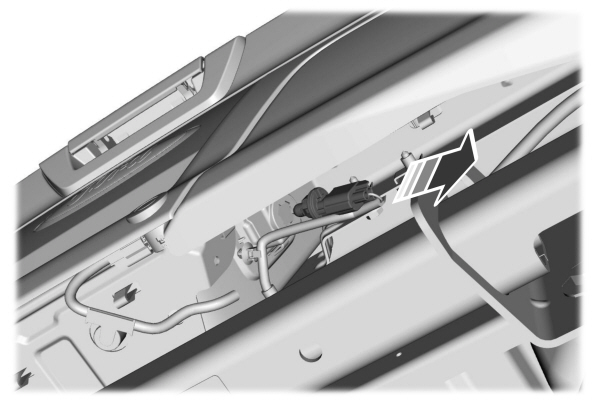

- Disconnect the electrical connector from the fog lamp bulb.
- Turn the bulb counterclockwise and remove it from the fog lamp.
- Install the new bulb in reverse order.
Replacing LED Headlamp Bulbs (If Equipped)
These lamps have LED bulbs. Contact an authorized dealer.
Replacing LED Direction Indicator and Side Marker Bulbs (If Equipped)
These lamps have LED bulbs. Contact an authorized dealer.
Replacing Brake, Rear, Direction Indicator and Reverse Lamp Bulbs
- Make sure the headlamps are off.
- Open the tailgate to access the rear lamp assemblies

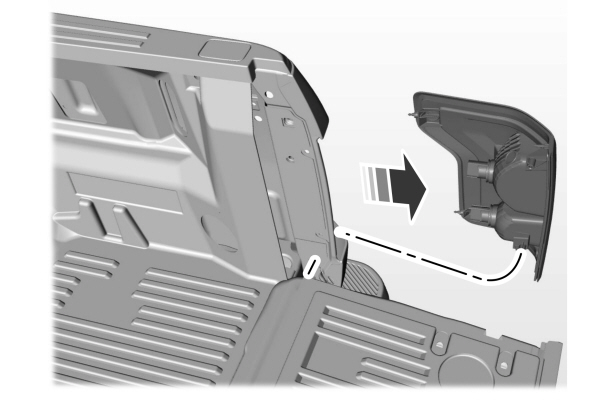

- Remove the two bolts from the tail lamp assembly. Then, carefully pull the lamp assembly from the tailgate pillar by releasing the two retaining tabs.
- Disconnect the electrical connector from the bulb.

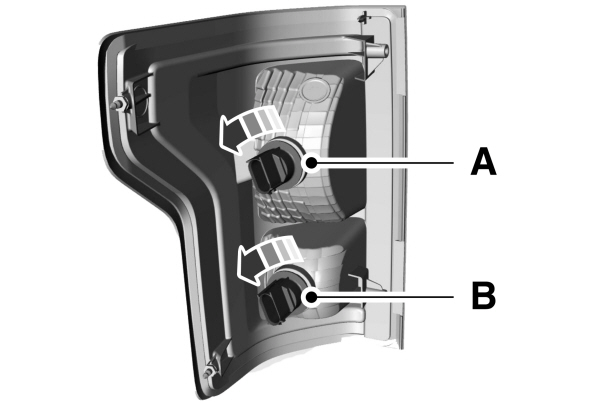

A. Brake, rear and direction indicator bulb. B. Reverse lamp bulb.
|
- Rotate the bulb socket counterclockwise and remove it from the rear lamp assembly.
- Install the new bulb in reverse order.
Replacing LED Brake, Rear, Direction Indicator and Reverse Lamp Bulbs (If Equipped)
These lamps have LED bulbs. Contact an authorized dealer.
Replacing Cargo Lamp and High-mount Brake Lamp Bulbs
- Make sure the lamps are off.

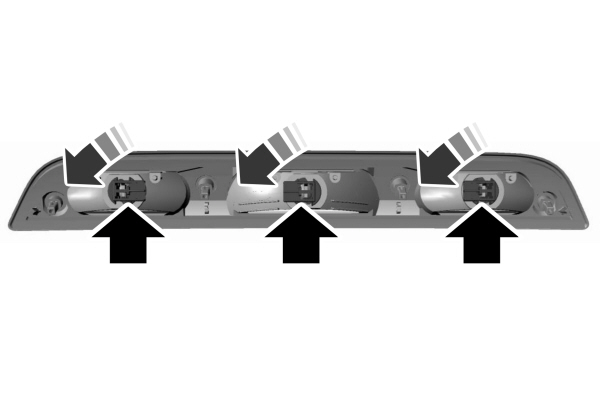

- Remove the four screws and move the lamp assembly away from the vehicle to expose the bulb sockets.

- Remove the bulb socket by rotating it counterclockwise and pulling it out of the lamp assembly.
- Pull the bulb straight out of the socket.
- Install the new bulb in reverse order.
Replacing LED Cargo Lamp, Spot Lamp and High-mount Brake Lamp Bulbs (If Equipped)
These lamps have LED bulbs. Contact an authorized dealer.
Replacing the License Plate Lamp Bulb
Note:
The license plate bulbs are located behind the rear bumper.

- Reach behind the rear bumper to locate the bulb.
- Twist the bulb socket counterclockwise and carefully pull to remove it from the lamp assembly.
- Pull the bulb straight out of the socket.
- Install the new bulb in reverse order.
Replacing Exterior Mounted Mirror Direction Indicator Lamp Bulbs
These lamps have LED bulbs. Contact an authorized dealer.
