Note:   Depending on your vehicle options and instrument cluster type, not all of these messages may be available and certain messages may be abbreviated or shortened.

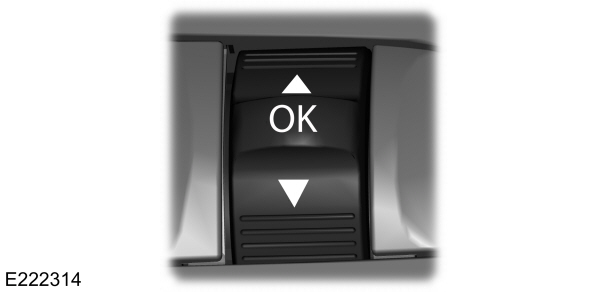

OK Button to Remove Message from Information Display
 Press the OK button to acknowledge and remove some messages from the information display.The information display automatically removes other messages after a short period of time.
You need to confirm certain messages before you can access the menus.
Active Park

Message   Details
Active Park Fault
The system has detected a fault that requires service.Have your vehicle checked as soon as possible.

Adaptive Cruise Control

Message   Details
Adaptive Cruise Malfunction
A radar malfunction is preventing the adaptive cruise from engaging.   See   Using Adaptive Cruise Control.
Front Sensor Not Aligned
Adaptive Cruise Not Available
Conditions exist such that the adaptive cruise cannot function properly.   See   Using Adaptive Cruise Control.
Adaptive Cruise Not Available Sensor Blocked See Manual
The radar is blocked because of poor radar visibility due to inclement weather, ice, mud or water in front of the radar. You can typically clean the sensor to resolve.   See   Using Adaptive Cruise Control.
Normal Cruise Active Automatic Braking Turned Off
Displayed when the automatic braking has been disabled.
Adaptive Cruise - Driver Resume Control
Displayed when the adaptive cruise has reinstated controls to the driver.
Adaptive Cruise Speed Too Low to Activate
Displays when the vehicle speed is too slow to activate the adaptive cruise.

Adaptive Headlamps

Message   Details
Check Headlamp System See Manual
Displays when a fault with the system has occurred.Have your vehicle checked as soon as possible.

Airbag

Message   Details
Occupant Sensor BLOCKED Remove Objects Near Passenger Seat
Objects are by the passenger seat. If the warning stays on or continues to come on after the objects are moved away from the seat, have your vehicle check as soon as possible.

Alarm

Message   Details
Vehicle Alarm To Stop Alarm, Start Vehicle.
The alarm has been triggered due to unauthorized entry.   See   Anti-Theft Alarm.

Automatic Engine Shutdown

Message   Details
Vehicle Shuts Off In X Seconds   The engine is getting ready to shut off.
Vehicle Shut Off to Save Energy
The engine has shut off to help increase fuel economy.
Vehicle Shuts Off In X Seconds Press OK to Override   The engine is getting ready to shut off. You can press OK on the left steering wheel button to override the shut down.

AWD

Message   Details
AWD OFF
Displays when the system automatically disables to protect itself. If the system is overheating or if there is an issue with another vehicle system preventing AWD operation, this could be caused by operating the vehicle with the compact tire installed. The system resumes normal operation and clears this message after cycling the ignition on and off and driving a short distance with the road tire re-installed, after the system is allowed to cool or after the other vehicle system issues are resolved.
AWD Malfunction Service Required
Displays in conjunction with the powertrain malfunction or reduced power light when the system is not operating properly. If the message stays on or continues to come on, have your vehicle checked as soon as possible.

Battery and Charging System

Message   Details
Check Charging System
The charging system needs servicing. If the warning stays on or continues to come on, have your vehicle checked as soon as possible.
Charging System Service Soon
The charging system needs servicing. If the warning stays on or continues to come on, have your vehicle checked as soon as possible.
Charging System Service Now
The charging system needs servicing.Have your vehicle checked as soon as possible.
Battery State of Charge Low
The battery management system determines that the 12V battery is at a low state of charge. Start the engine to charge the battery or charge the battery using an aftermarket battery charger. This message clears once you restart your vehicle and the battery state of charge has recovered.
Turn Power Off To Save Battery
The battery management system determines that the battery is at a low state of charge. Turn the ignition off as soon as possible to protect the battery. This message clears once the vehicle has been started and the battery state of charge has recovered. Turning off unnecessary electrical loads allows the battery state-of-charge to recover faster.
Low Battery Features Temporarily Turned Off
Displays when the battery management system detects an extended low-voltage condition. Various vehicle features disable to help preserve the battery. Turn off as many of the electrical loads as soon as possible to improve system voltage. If the system voltage has recovered, the disabled features operate again as normal.

Blind Spot Information and Cross Traffic Alert System

Message   Details
Blindspot System Fault
A fault with the system has occurred.Have your vehicle checked as soon as possible.
Blindspot Not Available Sensor Blocked See Manual
The system sensors are blocked.Have your vehicle checked as soon as possible.See   Blind Spot Information System.
Vehicle Coming From X   The system detects a vehicle.   See   Blind Spot Information System.
Cross Traffic Not Available Sensor Blocked See Manual
The blind spot information system and cross traffic alert system sensors are blocked.See   Blind Spot Information System.
Cross Traffic System Fault
A fault with the system has occurred.Have your vehicle checked as soon as possible.

Doors and Locks

Message   Details
X Door Ajar   The door listed is not completely closed.
Engine ON
The driver’s door is opened, your vehicle is in park and the engine is on.
Hood Ajar
Displays when the hood is not completely closed.
Switches Inhibited Security Mode
Displays when the door switches have been disabled.
Child Lock Malfunction Service Required
There is a system malfunction with the child locks.Have your vehicle checked as soon as possible.
Child Lock ON
Indicates that the rear seat interior door release switches and power windows are switched off, preventing rear seat occupants from opening the doors or windows.
Child Lock OFF
Indicates that the rear seat interior door release switches and power windows are switched on.
Door Unlocked
Displays when the door lock turns off.
Doors Locked Unlock Before Opening
Displays when the door lock is turned on and you attempt to open the door.
Driver Door Fault Use Inside Override Lever In Map Pocket
Indicates a driver door fault that requires manually opening the door by the override lever.Have your vehicle checked as soon as possible.
Door Fault Service Required
Indicates a fault with the electronic door system.Have your vehicle checked as soon as possible.
Factory Keypad Code {X X X X X}
Displays the factory keypad code after the keypad has been reset. See  Keyless Entry .

Driver Alert

Message   Details
Driver Alert Warning Rest Now
Stop and rest as soon as it is safe to do so.
Driver Alert Warning Rest Suggested
Take a rest soon.

Fuel

Message   Details
Fuel Level Low
An early reminder of a low fuel condition.
Check Fuel Fill Inlet
The fuel fill inlet may not be properly closed.

Hill Start Assist

Message   Details
Hill Start Assist Not Available
Displays when hill start assist is not available.Have your vehicle checked as soon as possible.See  Hill Start Assist .

Keys and Intelligent Access

Message   Details
To START Press Brake
A reminder to press the brake while starting your vehicle.
No Key Detected
The system does not detect the key.See   Keyless Starting.
Restart Now or Key is Needed
You press the Start Stop button to shut off the engine and an Intelligent Access key is not detected inside your vehicle.
Full Accessory Power Active
Your vehicle is in the accessory ignition state.
Starting System Fault
There is a problem with your vehicle’s starting system. See an authorized dealer for service.
Key Program Successful
During spare key programming, an intelligent access key is successfully programmed to the system.
Max Number of Keys Learned
During spare key programming, the maximum number of keys have been programmed.
Key Program Failure
Displayed during spare key programming when an intelligent access key has failed to be programmed.
Not Enough Keys Learned
Displayed during spare key programming when not enough keys have been programmed.
Key Battery Low Replace Soon
Displays when the key battery is low. Change the battery as soon as possible.
Vehicle Switched Off
Displays when the vehicle is switched off.

Lane Keeping System

Message   Details
Lane Keeping Sys. Malfunction Service Required
The system has malfunctioned.Have your vehicle checked as soon as possible.
Front Camera Temporarily Not Available
The system has detected a condition that has caused the system to be temporarily unavailable.
Front Camera Low Visibility Clean Screen
The system has detected a condition that requires the windshield to be cleaned to operate properly.
Front Camera Malfunction Service Required
The system has malfunctioned.Have your vehicle checked as soon as possible.
Keep Hands on Steering Wheel
The system requests the driver to keep their hands on the steering wheel.

Maintenance

Message   Details
Low Engine Oil Pressure
Stop your vehicle as soon as safely possible, turn off the engine. Check the oil level. If the warning stays on or continues to come on with your engine running, have your vehicle checked as soon as possible.
Change Engine Oil Soon
The engine oil life remaining is 10% or less.
Oil Change Required
The oil life left reaches 0%.
Brake Fluid Level Low
The brake fluid level is low and the brake system should be inspected immediately.   See   Brake Fluid Check.
Check Brake System
The brake system needs servicing.Stop the vehicle in a safe place.Have your vehicle checked as soon as possible.
Engine Coolant Over Temperature
The engine coolant temperature is excessively high.
Washer Fluid Level Low
The washer fluid is low and needs to be refilled.
Transport Mode Contact Dealer
Indicates that your vehicle is still in Transport mode.This may not allow some features to operate properly.Have your vehicle checked as soon as possible.
Factory Mode Contact Dealer
Indicates that your vehicle is still in Factory mode.This may not allow some features to operate properly.Have your vehicle checked as soon as possible.
See Manual
Informs the driver that the powertrain needs service due to a powertrain malfunction.
Power Reduced to Lower Engine Temp
The engine has reduced power to help reduce high engine temperature.
Brake Applied Power Reduced
The brake system has reduced stopping power.

MyKey

Message   Details
MyKey not Created
MyKey cannot be programmed during key programming.
Speed Limited to XX MPH/km/h   When starting your vehicle, a MyKey is in use and the MyKey speed limit is on.
Near Vehicle Top Speed
When a MyKey is in use, the MyKey speed limit is on and your vehicle speed is approaching 81 mph (130 km/h).
MyKey Active Drive Safely
Displays when MyKey is active.
Check Speed Drive Safely
Displays when MyKey is active.
Vehicle at Top Speed of MyKey Setting
Displays when a MyKey is in use and the MyKey speed limit is reached.
Buckle Up to Unmute Audio
Displays when a MyKey is in use and seatbelt reminder is activated.
AdvanceTrac On - MyKey Setting
Displays when a MyKey is in use and AdvanceTrac is activated.
MyKey Park Aid Cannot be Deactivated
Displays when a MyKey is in use and park aid is activated.
Lane Keeping Alert On MyKey Setting
Displayed when the lane keeping aid is on per MyKey settings.

Park Aid

Message   Details
Check Front Park Aid
The system requires service.Have your vehicle checked as soon as possible.See   Front Parking Aid.
Check Rear Park Aid
The system requires service.Have your vehicle checked as soon as possible.See   Rear Parking Aid.

Park Brake

Message   Details
Park Brake Engaged
The parking brake is set, the engine is running and you start to drive your vehicle. If the warning stays on after the parking brake is released, have your vehicle checked as soon as possible.
To Release: Press Brake and Switch
The electric parking brake is set and a manual release is attempted without the brake pedal being pressed.
Park Brake Use Switch to Release
The electric parking brake is set and an automatic release is attempted but cannot be performed. Perform a manual release.
Release Park Brake
The electric parking brake is set and you start to drive your vehicle. Release park brake before continuing to drive.
Park Brake Not Applied
The electric parking brake is not fully applied.
Park Brake Not Released
The electric parking brake is not fully released.
Park Brake Maintenance Mode
The electric parking brake system has been put into a special mode that is used to allow servicing of the rear brakes.Have your vehicle checked as soon as possible.
Park Brake Limited Function Service Required
The electric park brake system has detected a condition that requires service.Some functionality may still be available.Have your vehicle checked as soon as possible.
Park Brake Malfunction Service Now
The electric parking brake system has detected a condition that requires service.Have your vehicle checked as soon as possible.
Park Brake System Overheated
Applying the park brake numerous times has overheated the system. Wait two minutes before attempting to apply again.

Power Steering

Message   Details
Steering Fault Service Now
The power steering system has detected a condition that requires service.Have your vehicle checked as soon as possible.
Steering Assist Fault Service Required
The power steering system has detected a condition within the power steering system, or the passive entry or passive start system requires service.Have your vehicle checked as soon as possible.
Steering Loss Stop Safely
The power steering system is not working.Stop the vehicle in a safe place.Have your vehicle checked as soon as possible.

Pre-Collision Assist

Message   Details
Pre-Collision Assist Not Available Sensor Blocked
You have a blocked sensor due to inclement weather, ice, mud or water in front of the radar sensor. You can typically clean the sensor to resolve.
Pre-Collision Assist Not Available
A fault with the system has occurred.Have your vehicle checked as soon as possible.

Remote Start

Message   Details
To Drive: Press Brake and Gear Shift Button
Displays as a reminder to apply the brake and push the gear shift button to drive the vehicle after a remote start.

Seats

Message   Details
Memory Recall Not Permitted While Driving
Displays as a reminder that memory seats are not available while driving.
Memory {0} Saved
Displays to show where your memory setting has been saved.

Stability Control

Message   Details
Service AdvanceTrac
Displays when the system detects a condition that requires service.Have your vehicle checked as soon as possible.
AdvanceTrac Off On   The traction control has been disabled or enabled by the driver.

Starting System

Message   Details
To START Press Brake
Displays when starting the vehicle as a reminder to apply the brake.
Cranking Time Exceeded
Displays when the starter has exceeded its cranking time in attempting to start the vehicle.
Engine Start Pending Please Wait
Displays when the starter is attempting to start the vehicle.
Pending Start Cancelled
Displays when the pending start has been cancelled.

Tire Pressure Monitoring System

Message   Details
Tire Pressure Low
One or more tires on your vehicle have low tire pressure.See   Tire Pressure Monitoring System.
Tire Pressure Monitor Fault
The tire pressure monitoring system is malfunctioning. If the warning stays on or continues to come on, have your vehicle checked as soon as possible.  See   Tire Pressure Monitoring System.
Tire Pressure Sensor Fault
A tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions,   See   Tire Pressure Monitoring System.  If the warning stays on or continues to come on, have your vehicle checked as soon as possible.

Transmission

Message   Details
Shift to Park
You switched the engine off and the shift select lever is in any position other than park (P).
Transmission Warming Up Please Wait
The transmission is too cold. Wait for it to warm up before you drive.
Press Brake Pedal
Displays when the brake pedal needs to be pressed.
Transmission Over Temperature Stop Safely
The transmission is overheating and needs to cool.Stop in a safe place as soon as possible.
Transmission Service Required
Have your vehicle checked as soon as possible.
Transmission Too Hot Press Brake
The transmission is overheating and needs to cool.Stop in a safe place as soon as possible.
Transmission Limited Function See Manual
The transmission has limited functionality.See an authorized dealer.
Transmission Not in Park
A reminder to shift into park. In addition, this message is typical after reconnecting or recharging the battery until you cycle the ignition to the on mode.   See   Changing the 12V Battery.
SHIFT SYS FAULT Confirm Park Brake Apply Before Exiting the Vehicle
Displays when there is a system fault and you need to press the park brake before exiting the vehicle.Have your vehicle checked as soon as possible.
SHIFT SYS FAULT Service Required
Have your vehicle checked as soon as possible.
SHIFT SYS FAULT Vehicle is Shifting to Park
Displays when there is a system fault while the vehicle is shifting to park (P). See your authorized dealer.
SHIFT SYS FAULT Reverse Unavailable Service Required
Displays when there is a system fault while the vehicle is shifting to reverse (R). See your authorized dealer.
SHIFT SYS FAULT Drive Unavailable Select S for Drive Service Required
Have your vehicle checked as soon as possible.
SHIFT SYS FAULT Neutral Unavailable Service Required
Have your vehicle checked as soon as possible.
SHIFT SYS FAULT Sport Unavailable Service Required
Have your vehicle checked as soon as possible.
Invalid Gear Selection
Displays when an invalid gear has been selected.
Depress Brake to Shift from Park
Displays when the brake pedal needs to be pressed to enable the transmission to shift from park.
Stay in Neutral Mode Engaged
Displays when neutral hold is active.  See   Automatic Transmission.
To Stay in Neutral When Exiting Vehicle Select N Again
Displays when the neutral button N needs to be pressed again to enter neutral hold.  See   Automatic Transmission.

Owner's Manual Feedback

Submit

Thank You For Your Feedback

Ok
