Capacities and Specifications - 3.0L/3.0L EcoBoost™
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
Capacities
WARNING:
The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury. |
| Item | Capacity |
|---|---|
| Engine oil (with oil filter). | 6.0 qt (5.7 L) |
| Engine coolant. | 11.6 qt (11 L) |
| Brake fluid. | Between MIN/MAX on brake fluid reservoir |
| Rear differential fluid (All Wheel Drive). | 16.0–20.8 fl oz (473–615 ml) |
| Power Transfer Unit fluid (All Wheel Drive). | 15.2 fl oz (450 ml)1 |
| Automatic transmission fluid. | 11.6 qt (11 L)2 |
| Windshield washer fluid. | Fill as required |
| Fuel tank. | 18.0 gal (68.1 L) |
| A/C refrigerant. | 20 oz (0.57 kg) |
| A/C refrigerant compressor oil. | 5.24 fl oz (155 ml) |
1Contact an authorized dealer for fluid level checking and filling.
2 Approximate dry fill capacity. Actual amount may vary during fluid changes.
Specifications
Materials
| Name | Specification |
|---|---|
| Motor oil (U.S.): Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil XO-5W30-QSP | WSS-M2C946-B1 |
| Motor oil (Canada): Motorcraft® SAE 5W-30 Super Premium Motor Oil CXO-5W30-LSP12 | WSS-M2C946-B1 |
| Motor oil (Mexico): Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil MXO-5W30-QSP | WSS-M2C946-B1 |
| Engine coolant (U.S. and Mexico): Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B | WSS-M97B44-D2 |
| Engine coolant (Canada): Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B | WSS-M97B44-D2 |
| Brake fluid: Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid PM-20 | WSS-M6C65-A2 |
| Rear differential fluid (All Wheel Drive) (U.S. and Mexico): Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL | WSP-M2C197-A |
| Rear differential fluid (All Wheel Drive) (Canada): Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant CXY-80W90-1L | WSP-M2C197-A |
| Power Transfer Unit fluid (All Wheel Drive) (U.S. and Mexico): Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL | WSL-M2C192-A |
| Power Transfer Unit fluid (All Wheel Drive) (Canada): Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant CXY-75W140-1L | WSL-M2C192-A |
| Automatic transmission fluid (U.S. and Mexico): Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC | WSS-M2C938-A MERCON® LV |
| Automatic transmission fluid (Canada): Motorcraft® MERCON® LV Automatic Transmission Fluid CXT-10-LV12 | WSS-M2C938-A MERCON® LV |
| Windshield washer fluid (U.S. and Mexico): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 | WSS-M14P19-A |
| Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) | WSS-M14P19-A |
| A/C refrigerant (U.S.): Motorcraft® R-134a Refrigerant YN-19 | WSH-M17B19-A |
| A/C refrigerant (Canada): Motorcraft® R-134a Refrigerant CYN-16-R | WSH-M17B19-A |
| A/C refrigerant (Mexico): Motorcraft® R-134a Refrigerant MYN-19 | WSH-M17B19-A |
| A/C refrigerant compressor oil: Motorcraft® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |
| Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A | ESB-M1C93-B |
| Lock cylinders (U.S. and Mexico): Penetrating and Lock Lubricant XL-1 | - |
| Lock cylinders (Canada): Penetrating Fluid CXC-51-A | - |
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
- Component damage which is not covered by the vehicle warranty.
- Longer engine cranking periods.
- Increased emission levels.
- Reduced engine performance.
- Reduced fuel economy.
- Degraded brake performance.
We recommend Motorcraft® motor oil for your vehicle.If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN Plus requirements and display the API Certification Mark for gasoline engines.
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by your vehicle warranty.
Note:
We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause degraded brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
Note:
Automatic transmissions that require MERCON® LV transmission fluid should only use MERCON® LV transmission fluid.The use of any other fluid may cause transmission damage.

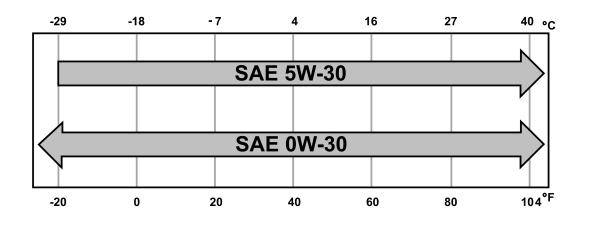

Alternative Engine Oil for Extremely Cold Climates
To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches
-22.0 °F (-30 °C) or below.
| Name | Specification |
|---|---|
| Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil: Engine oil - SAE 0W-30 XO-0W30-QSP | WSS-M2C953-A1 |
