360 Degree Camera
The front camera enable button is located near the display screen and turns on the front camera when your vehicle is not in reverse (R).
WARNING:
The 360 degree camera system still requires the driver to use it in conjunction with looking out of the windows, and checking the interior and exterior mirrors for maximum coverage.
WARNING:
You may not see objects that are close to either corner of the bumper or under the bumper due to the limited coverage of the camera system.
WARNING:
Use caution when turning camera features on or off when the transmission is not in park (P). Make sure your vehicle is not moving.
WARNING:
At all times, you are responsible for controlling your vehicle, supervising the system and intervening, if required. Failure to take care may result in the loss of control of your vehicle, serious personal injury or death. |
Note:
Use caution using the 360 view when any of the doors are ajar. If a door is ajar, the camera will be out of position and the video image may be incorrect.
The 360 degree camera system consists of front, side and rear cameras. The system:- Allows you to see what is directly in front or behind your vehicle.
- Provides cross traffic view in front and behind your vehicle.

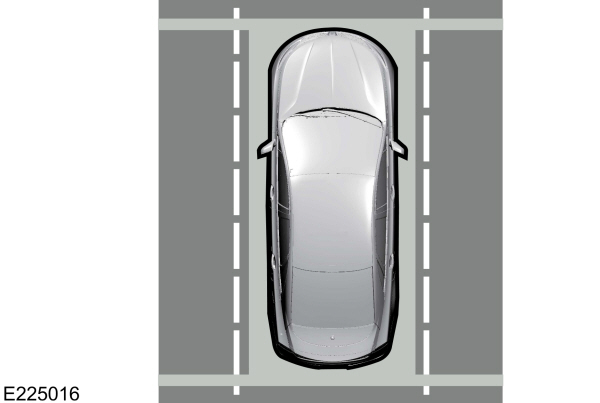

- Allows you to see a top-down view of the area outside your vehicle, including the blind spots.
- Provides visibility around your vehicle to you in parking maneuvers such as:Centering in a parking space.Obstacles near vehicle.Parallel parking.
The front camera enable button is located near the display screen and turns on the front camera when your vehicle is not in reverse (R).Using the System
Note:
The 360 degree camera system turns off when your vehicle is in motion at low speed, except when in reverse (R).
The front and rear cameras have multiple screens which consist of: normal view with 360, normal view, and split view. When in park (P), neutral (N) or drive (D), only the front images display when you press the button. When in reverse (R), only the rear images display.
Press to access the different camera views. |
Normal + 360 view: Contains the normal camera view next to a 360 degree camera view. |
Normal view: Provides an image of what is directly in front or behind your vehicle. |
Split view: Provides an extended view of what is in front or behind your vehicle. |
Zooms in on the image. |
Keep Out Zone
The Keep Out Zone is represented by the yellow dotted lines running parallel to your vehicle. It is designed to give you the indication on the ground of the fully extended outside mirror position.
Front Camera
|
WARNING:
The front camera system still requires the driver to use it in conjunction with looking out of your vehicle. |
Note:
The system turns off the front video image when your vehicle is in motion at low speed, except when in reverse (R).

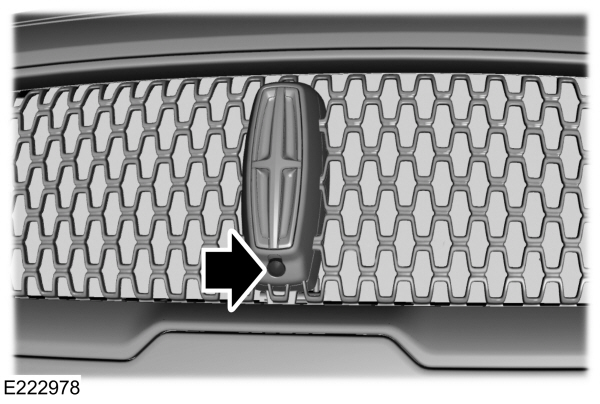

The front video camera, located behind the star emblem on the grille, provides a video image of the area in front of your vehicle. It adds assistance to the driver while driving forward at low speeds. To use the front video camera system, place the transmission in any gear except reverse (R). An image displays once you press the front camera enable button. The image on the screen may vary according to your vehicle's orientation or road condition.
Side Camera

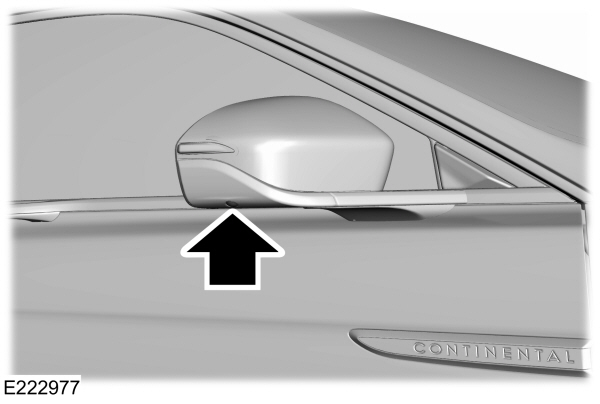

The side view camera, located in the outside mirror, provides a video image of the area on the sides of your vehicle as part of the front 360 + normal view and rear 360 + normal view. It aids you while parking your vehicle either forward or backwards.
