WARNING:
You are responsible for controlling your vehicle at all times. The system is designed to be an aid and does not relieve you of your responsibility to drive with due care and attention. Failure to follow this instruction could result in the loss of control of your vehicle, personal injury or death.
WARNING:
Always drive with due care and attention when using and operating the controls and features on your vehicle.
WARNING:
In cold and severe weather conditions the system may not function. Rain, snow and spray can all limit sensor performance.
WARNING:
The system will not operate if the sensor cannot track the road lane markings.
WARNING:
The sensor may incorrectly track lane markings as other structures or objects. This can result in a false or missed warning.
WARNING:
The system may not operate properly if the sensor is blocked. Keep the windshield free from obstruction.
WARNING:
If damage occurs in the immediate area surrounding the sensor, have your vehicle checked as soon as possible.
WARNING:
The system may not correctly operate if your vehicle is fitted with a suspension kit not approved by us. |
Note:
The system works as long as the camera can detect one lane marking.
Note:
When aid or alert and aid modes are selected and the system detects no steering activity for a short period, the system alerts you to put your hands on the steering wheel. The system may detect a light grip or touch on the steering wheel as hands off driving.
Note:
The system may not function with a blocked camera, or a damaged or dirty windshield. The system does not function if the operational speed of the vehicle is less than
40 mph (64 km/h).
When you switch the system on and it detects an unintentional drift out of your lane is likely to occur, the system notifies or assists you to stay in your lane through the steering system and information display. In Alert mode, the system provides a warning by vibrating the steering wheel. In Aid mode, the system provides steering assistance by gently counter steering your vehicle back into the lane.
When the system is functioning in the combined Alert and Aid mode, the system first provides steering assistance by gently counter steering your vehicle back into the lane, followed by a warning by vibrating the steering wheel if the vehicle is still out of the lane markings.
Switching the System On and Off
Note:
The system on or off setting is stored until it is manually changed unless a MyKey is detected. If the system detects a MyKey it defaults to on and the mode is set to Alert.
Press the button on the direction indicator stalk to switch the system on or off.
System Settings
The system has optional setting menus available. To view or adjust the settings, See
Settings.
The system stores the last-known selection for each of these settings. You do not need to readjust your settings each time you switch the system on.
Mode: This setting allows you to select which of the system features you can enable.
Alert only – Provides a steering wheel vibration when the system detects an unintended lane departure.
Aid only – Provides steering assistance toward the lane center when the system detects an unintended lane departure.
AAlert BAid
|
Alert + Aid – Provides steering assistance toward the lane center.
If your vehicle continues drifting out of the lane, the system provides a steering wheel vibration.
Note:
The alert and aid diagrams illustrate general zone coverage. They do not provide exact zone parameters.
Intensity: This setting affects the intensity of the steering wheel vibration used for the alert and alert + aid modes. This setting does not affect the aid mode.
System Display

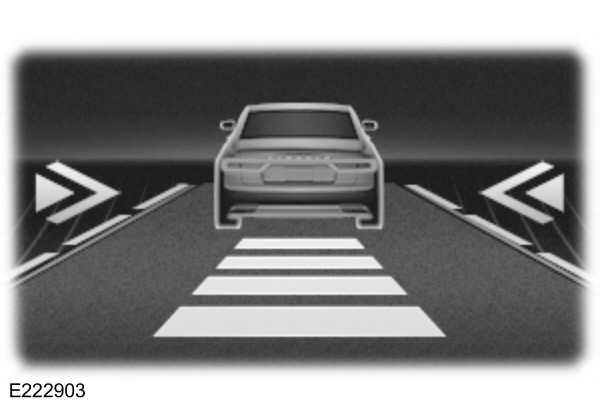

If you switch the system on in alert mode, a graphic with lane markings appears in the information display.

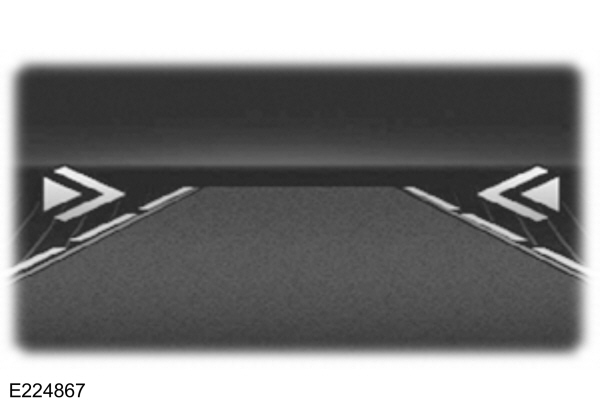

If you switch the system on in aid or alert and aid mode, arrows appear with the lane markings.
If Adaptive Cruise Control is enabled and a vehicle is being followed, additional graphics appear in the display.
When you switch the system off, the lane marking graphics do not display.
When the system is on, the color of the lane markings change to indicate the system status.
Gray: Indicates that the system is temporarily unable to provide a warning or intervention on the indicated side. This may be because:
- Your vehicle is under the activation speed.
- The direction indicator is active.
- Your vehicle is in a dynamic maneuver.
- The road has no or poor lane markings in the camera field-of-view.
- The camera is obscured or unable to detect the lane markings due to environmental, traffic or vehicle conditions. For example, significant sun angles, shadows, snow, heavy rain or fog, following a large vehicle that is blocking or shadowing the lane, poor headlamp illumination.
See Troubleshooting for additional information.
Green: Indicates that the system is available or ready to provide a warning or intervention, on the indicated side.
Yellow: Indicates that the system is providing or has just provided a lane keeping aid intervention.
Red: Indicates that the system is providing or has just provided a lane keeping alert warning.
The system can be temporarily suppressed at any time by the following:
- Quick braking.
- Fast acceleration.
- Using the direction indicator.
- Evasive steering maneuver.
- Driving too close to the lane markings.
Troubleshooting
Why is the feature not available (line markings are gray) when I can see the lane markings on the road?
|
---|
Your vehicle speed is outside the operational range of the feature.
|
The sun is shining directly into the camera lens.
|
A quick intentional lane change has occurred.
|
Your vehicle stays too close to the lane markings.
|
Driving at high speeds in curves.
|
The last alert warning or aid intervention occurred a short time ago.
|
Ambiguous lane markings, for example in construction zones.
|
Rapid transition from light to dark, or from dark to light.
|
Sudden offset in lane markings.
|
ABS or AdvanceTrac™ is active.
|
There is a camera blockage due to dirt, grime, fog, frost or water on the windshield.
|
You are driving too close to the vehicle in front of you.
|
Transitioning between no lane markings to lane markings or vice versa.
|
There is standing water on the road.
|
Faint lane markings, for example partial yellow lane markings on concrete roads.
|
Lane width is too narrow or too wide.
|
The camera has not been calibrated after a windshield replacement.
|
Driving on tight roads or on uneven roads.
|
Why does the vehicle not come back toward the middle of the lane, as expected, in the Aid or Aid + Alert mode?
|
---|
High cross winds are present.
|
There is a large road crown.
|
Rough roads, grooves or shoulder drop-offs.
|
Heavy uneven loading of the vehicle or improper tire inflation pressure.
|
The tires have been changed, or the suspension has been modified.
|
