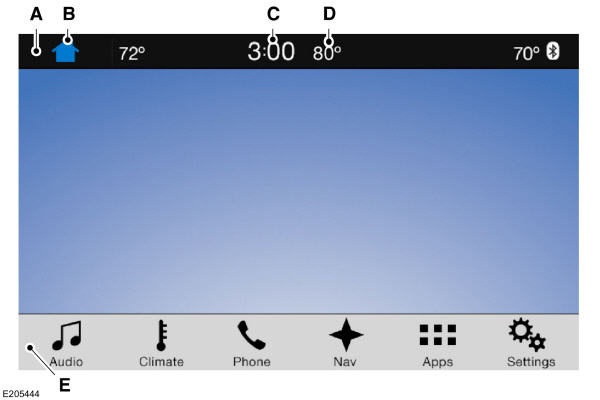

Item | Menu Item | Action and Description |
---|---|---|
A | Status Bar | This bar displays icons and messages pertaining to current system activities including climate settings, voice commands and phone functions such as text messages. |
B | Home | This button is available on the main screens. Pressing it takes you to the home screen view. |
C | Clock | This shows the current time. You can set the clock manually or have it controlled by the vehicle's GPS location. See Settings. |
D | Outside Temperature | This displays the current outside temperature. |
E | Feature Bar | You can touch any of the buttons on this bar to select a feature. |

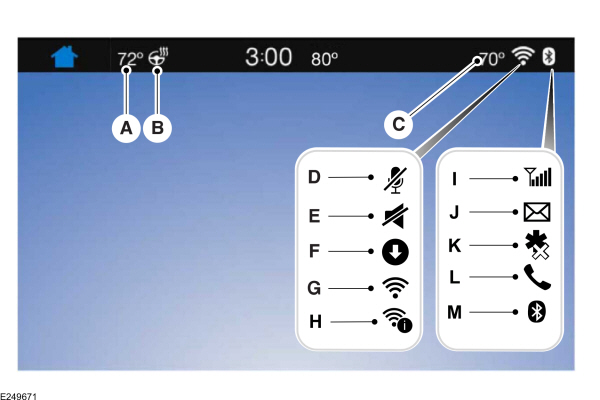

Callout | Item | Description |
---|---|---|
A | Driver Temperature | This shows the temperature the driver selects through the climate control system. |
B | Heated steering wheel | When you activate the heated steering wheel option on the touch screen, this icon displays. It only displays when there is not a physical button for the heated steering wheel. |
(If equipped) | ||
C | Passenger Temperature | When the passenger's temperature has been adjusted and is no longer linked to the driver's temperature, it displays here. |
D | Microphone Mute | This icon displays when your phone's microphone is muted. A caller cannot hear you. |
E | Mute | This icon displays when the audio system is muted. |
F | Download | This icon appears when SYNC 3 receives a software update. Pressing the icon shows more details about the new software. |
G | Wi-Fi | This icon appears if a Wi-Fi network is connected. |
H | Wi-Fi in Range | An available Wi-Fi network is within range. |
I | Signal Strength | This icon displays the phone signal strength and the roaming signal strength. |
J | Text Message | This icon displays when you receive a text message on your phone. |
K | 911 Assist Off | This icon displays when 911 Assist is set to off and your phone is connected to SYNC. |
L | In-Call | This icon displays when the phone call is active. |
M | Bluetooth | This icon displays to show an active Bluetooth connection. |
Feature Bar Item | Functions |
---|---|
Audio | Allows you to control the media playing in your vehicle. You can control all audio features including AM, FM and satellite radio, CDs, and media streaming over a Bluetooth device or through a USB connection. |
Climate | Allows you to adjust the temperature, fan speed and airflow within the vehicle. |
Phone | Allows you to make calls, receive calls, and access the phonebook of your connected device. |
Navigation | Allows you to see your vehicle's location on a virtual road map, get driving directions to your destination and find points of interest along your route. |
(If equipped) | |
Apps | Connect and control SYNC 3 compatible apps running on your iPhone or android device. Also, access built-in additional features such as SiriusXM Traffic and Travel Link (if equipped). |
Settings | You can customize your system with various settings for the touchscreen display, feature preferences, and how you want to interact with your vehicle. |
Option | Information | ||||
---|---|---|---|---|---|
Audio | Information for current audio playing. | ||||
Select source. | |||||
Navigation | View current road and speed limit (if information is available). | ||||
View current route, next turn, time to your destination (depending on cluster level), distance to destination (depending on cluster level), and ability to cancel route. | |||||
Phone | If you are not on a call, a call can be made by selecting: * | ||||
Quick dial | All calls | Incoming calls | Outgoing calls | Missed calls | |
If you are on a call, the call information is displayed on the information display. | |||||
If you are receiving a call, you can accept it by selecting OK on the right-hand steering wheel controls. |
Website |
---|
www.owner.lincoln.com www.syncmyride.ca www.syncmaroute.ca |
Restricted features | |
---|---|
Cellular Phone | Pairing a Bluetooth phone. |
Browsing of list entries is limited for phone contacts and recent phone calls. | |
System Functionality | Editing the keypad code. |
Enabling Valet Mode. | |
Editing settings while the rear view camera or active park assist are active. | |
Wi-Fi | Editing Wi-Fi settings. |
Editing the list of wireless networks. | |
Connecting to a new Wi-Fi network. | |
Sirius Travel Link | Sports Scores, Sports Schedule and Sports Headlines are not available when driving. |
Text Messages | Viewing received text messages. |
Navigation | Using the keyboard to enter a destination. |
Adding or editing Navigation Favorites entries or Avoid Areas. |
Website |
---|
www.owner.lincoln.com www.syncmyride.ca www.syncmaroute.ca |
Website |
---|
www.owner.lincoln.com www.syncmyride.ca www.syncmaroute.ca |
Menu Item | |
---|---|
Settings | |
Wi-Fi | |
Available Wi-Fi Networks | You can then select your Wi-Fi network. You may have to enter the security code if the network is secured. The system confirms when it has connected to the network. |
Menu Item | |
---|---|
Settings | |
General | |
Automatic System Updates | From this menu, you can enable automatic updates. If you have not done so already, the system prompts you to set up a Wi-Fi connection when you enable this feature. |
Menu Item | |
---|---|
Settings | |
General | |
Automatic System Updates | In this menu selection, you can change the selection for automatic updates to OFF. |
