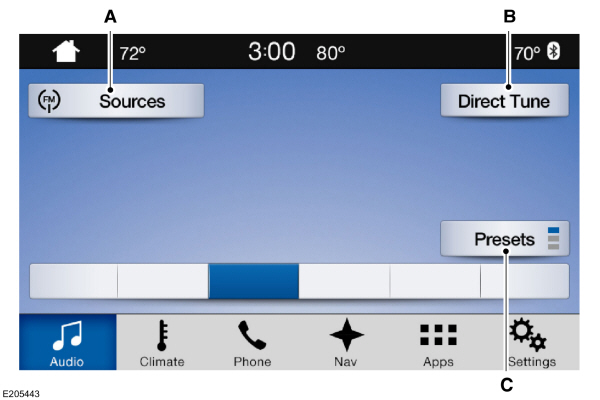

Message | Message and description |
---|---|
A | Sources |
B | Direct Tune |
C | Presets |
Menu item | |
---|---|
AM | |
FM | |
SIRIUS | * |
CD | * |

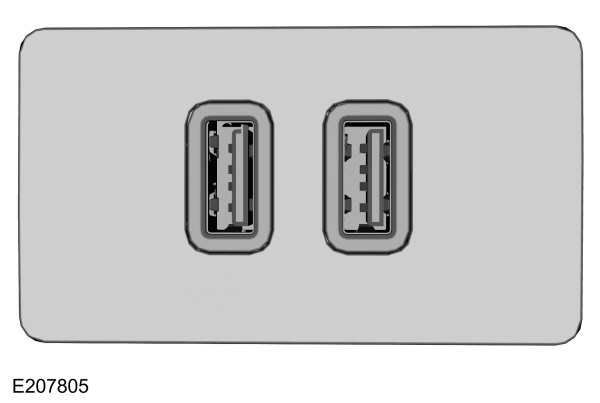

USB | The name of the USB that is plugged in displays here. |
Bluetooth Stereo | |
Apps | If you have SYNC 3 compatible apps on your connected smart phone, they display here as individual source selections. |
Menu item |
---|
Direct Tune |
Menu item | Action and description |
---|---|
Enter | Press to begin playing the station you have entered. |
Cancel | Press to exit without changing the station. |
Menu item | Action and description | |
---|---|---|
Browse | Touch this button to see a list of available stations. | |
Direct Tune | A pop-up appears, allowing you to type in the call numbers of a station. Once you enter the stations call numbers, you can select: | |
Enter | The system tunes to the station you select. | |
Cancel | You exit the pop-up and the current station continues to play. | |
You can press the backspace button to delete the previous number. | ||
Replay | Replay audio on the current channel. You can replay approximately 45 minutes of audio as long as you remain tuned to the current station. Changing stations erases the previous audio. | |
Live | When you are in replay mode, you are not able to select a different preset until you return to live audio. Pressing this button returns you to the live broadcast. | |
ALERT | Save the current song, artist, or team as a favorite. The system alerts you when it plays again on any channel. Selecting this button allows you to enable and edit alerts. See Settings. |
Potential reception issues | |
---|---|
Antenna obstructions | For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other materials as far away from the antenna as possible. |
Terrain | Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception. |
Station overload | When you pass a ground-based broadcast-repeating tower, a stronger signal may overtake a weaker one and the audio system may mute. |
Satellite radio signal interference | Your display may show ACQUIRING... to indicate the interference and the audio system may mute. |
Troubleshooting tips | ||
---|---|---|
Message | Cause | Action |
Acquiring Signal | Radio requires more than two seconds to produce audio for the selected channel. | No action required.This message should disappear shortly. |
Satellite antenna fault | There is an internal module or system failure present. | If this message does not clear shortly, or with an ignition key cycle, your receiver may have a fault. See an authorized dealer for service. |
SIRIUS system failure | ||
Invalid Channel | The channel is no longer available. | Tune to another channel or choose another preset. |
Unsubscribed Channel | Your subscription does not include this channel. | Contact SiriusXM at 1-888-539-7474 to subscribe to the channel, or tune to another channel. |
Satellite acquiring signal… | The signal is lost from the SiriusXM satellite or SiriusXM tower to your vehicle antenna. | The signal is blocked. When you move into an open area, the signal should return. |
Updating… | Update of channel programming in progress. | No action required.The process may take up to three minutes. |
Questions? Call 1-888-539-7474 | Your satellite service is no longer available. | Contact SiriusXM at 1-888-539-7474 to resolve subscription issues. |
None found. Check channel guide. | All the channels in the selected category are either skipped or locked. | Use the channel guide to turn off the Lock or Skip function on that station. |
SIRIUS Subscription updated | SiriusXM has updated the channels available for your vehicle. | No action required. |
Website |
---|
www.hdradio.com |
Message | Action and description |
---|---|
Presets | Allows you to save an active channel as a memory preset. Touch and hold a memory preset slot until the sound returns. There is a brief mute while the radio saves the station. Sound returns when the channel saves. When switching to an HD2 or HD3 memory preset, the sound mutes before the digital audio plays, because the system has to reacquire the digital signal. |
Potential reception issues | |
---|---|
Reception area | If you are listening to a multicast station and you are on the fringe of the reception area, the station may mute due to weak signal strength. |
If you are listening to HD1, the system changes back to the analog broadcast until the digital broadcast is available again. However, if you are listening to any of the possible HD2-HD7 multicast channels, the station mutes and stays muted unless it is able to connect to the digital signal again. | |
Station blending | When the system first receives a station (aside from HD2-HD7 multicast stations), it first plays the station in the analog version. Once the receiver verifies the station is an HD Radio station, it shifts to the digital version. Depending on the station quality, you may hear a slight sound change when the station changes from analog to digital. Blending is the shift from analog to digital sound or digital back to analog sound. |
Potential station issues | ||
---|---|---|
Issues | Cause | Action |
Echo, stutter, skip or repeat in audio. Increase or decrease in audio volume. | This is poor time alignment by the radio broadcaster. | No action required.This is a broadcast issue. |
Sound fading or blending in and out. | The radio is shifting between analog and digital audio. | No action required.The reception issue may clear up as you continue to drive. |
There is an audio mute delay when selecting HD2 or HD3, multicast preset or Direct Tune. | The digital multicast is not available until the HD Radio broadcast is decoded. Once decoded, the audio is available. | No action required.This is normal behavior.Wait until the audio is available. |
Cannot access HD2 or HD3 multicast channel when recalling a preset or from a direct tune. | The previously stored multicast preset or direct tune is not available in your current reception area. | No action required.The station is not available in your current location. |
Text information does not match currently playing audio. | Data service issue by the radio broadcaster. | Fill out the station issue form. * |
There is no text information shown for currently selected frequency. | Data service issue by the radio broadcaster. | Fill out the station issue form. * |
Website |
---|
http://www.ibiquity.com/automotive/report_radio_station_experiences |
Button | Function | |
---|---|---|
Browse | You can use the browse button to select a track. | |
Repeat | Select this button and a small number one displays to indicate the track is set to repeat. For MP3 CDs, this button allows you to toggle through repeat off, repeat one track (a small number one displays), and repeat current folder (a small folder displays). | |
Shuffle | Select the shuffle symbol to have the audio on the disk play in random order. |
Button | Function | |
---|---|---|
Repeat | Pressing the repeat button toggles the repeat setting through three modes: repeat off (button not highlighted), repeat all (button highlighted) and repeat track (button highlighted with a small number one). | |
Shuffle | Play the tracks in random order. |
Button | Function |
---|---|
Browse | If available, displays the list of tracks in the Now Playing playlist. |
New Search | This option, which is available under browse, allows you to play all tracks or to filter the available media into one of the below categories. |
Play All | |
Playlists | |
Artist | |
Albums | |
Songs | |
Genres | |
Podcasts | |
Audio books | |
Composers | |
A-Z Jump | This button allows you to choose a specific letter to view within the category you are browsing. |
Explore Device | If available, this allows you to browse the folders and files on your USB device. |
