Front Seat Armrest

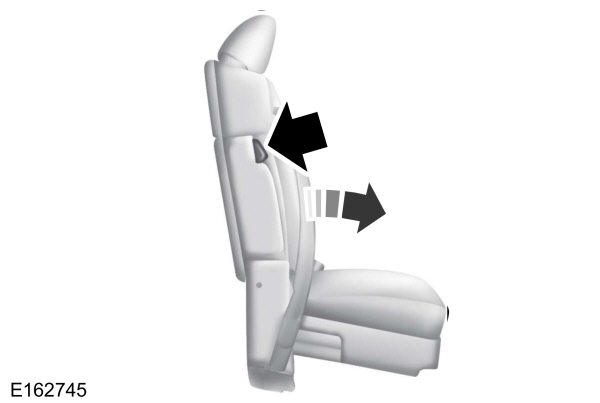

Press the button on the right-hand side of the seat and pull the seatback down to release the armrest. You can also gain access to the cupholders and seatback storage bin.

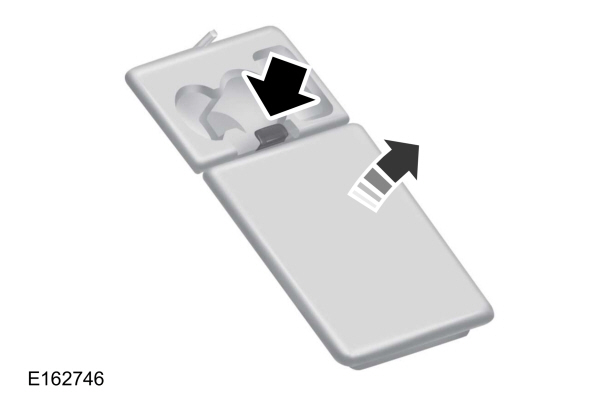

Pull up on the tab to open the storage bin

Lift up on the seatback to return it to the upright position.

Accessing for Under-Seat Storage Compartment in the Seat Cushion

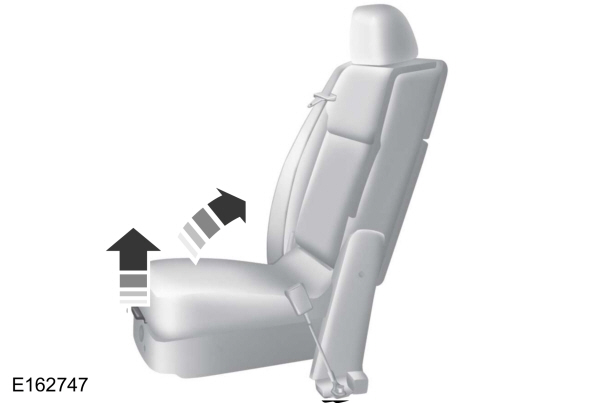

If your vehicle has an under-seat storage compartment in the seat cushion, lift the latch to open the lid of the compartment. You cannot open the lid when the armrest is down.

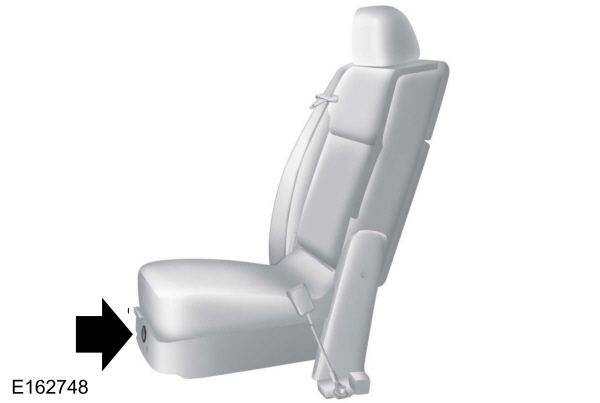

The under-seat storage compartment has a programmable lock. Use the ignition key to program the lock to the compartment. You can power or charge electronics using the under-seat storage compartment auxiliary power point. See Auxiliary Power Points.
