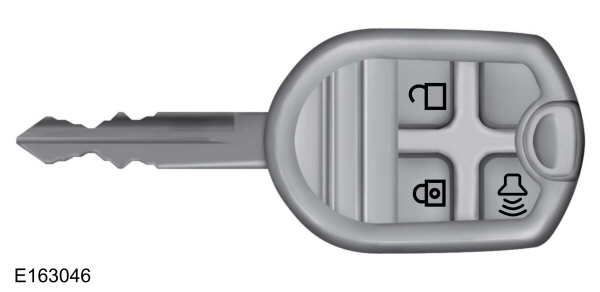

Integrated Keyhead Transmitter
Ignition Key/Remote Control
 Use the key blade to start your vehicle and unlock or lock the driver door from outside your vehicle. The integrated keyhead transmitter functions as a programmed ignition key that operates all the locks and starts your vehicle, as well as a remote control.
Intelligent Key Transmitter Tag
Note:   Your vehicle keys came with a security label that provides important key cut information.Keep the label in a safe place for future reference.
Replacing the Battery
Note:   Refer to local regulations when disposing of transmitter batteries.
Note:   Do not wipe off any grease on the battery terminals or on the back surface of the circuit board.
Note:   Replacing the battery does not erase the programmed key from your vehicle.The remote control should operate normally.
The remote control uses one coin-type three-volt lithium battery CR2032 or equivalent.

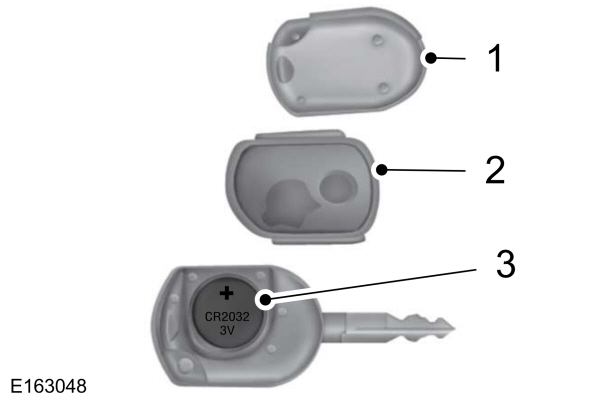

Integrated Keyhead Transmitter Battery Replace
  1. Twist a thin coin in the slot of the remote control near the key ring to remove the battery cover.
  1. Carefully peel up the rubber gasket from the remote control. It may come off with the battery cover.
  1. Remove the old battery.
  1. Insert the new battery.Refer to the instructions inside the remote control for the correct orientation of the battery.Press the battery down to make sure it is fully in the housing.
  1. Reinstall the rubber gasket.
  1. Snap the battery cover back onto the remote control.
Car Finder
Lock Icon   Press the button twice within three seconds. The horn sounds and the direction indicators flash. We recommend you use this method to locate your vehicle, rather than using the panic alarm.
Sounding a Panic Alarm
Note:   The panic alarm only operates when the ignition is off.
Volume Icon  Press the button to activate the alarm. Press the button again or switch on the ignition on to deactivate it.
