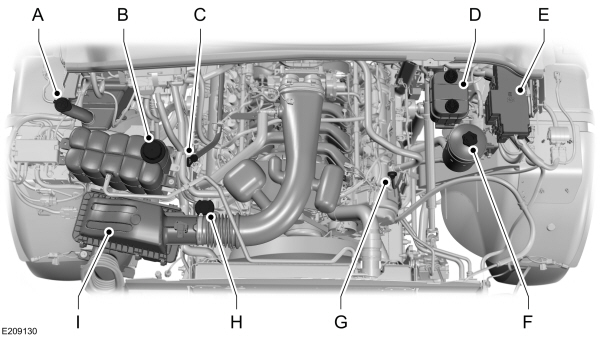

Under Hood Overview - 6.8L
A Windshield washer fluid reservoir. See
Washer Fluid Check.
B Engine coolant reservoir. See
Engine Coolant Check - 6.8L.
C Automatic transmission fluid dipstick. See
Automatic Transmission Fluid Check.
D Brake fluid reservoir. See
Brake Fluid Check.
E Engine compartment fusebox. See
Fuses.
F Power steering fluid reservoir. See
Power Steering Fluid Check.
G Engine oil dipstick. See
Engine Oil Dipstick - 6.8L.
H Engine oil filler cap. See
Engine Oil Check - 6.8L.
I Air cleaner assembly. See
Changing the Engine Air Filter - 6.8L.
|
