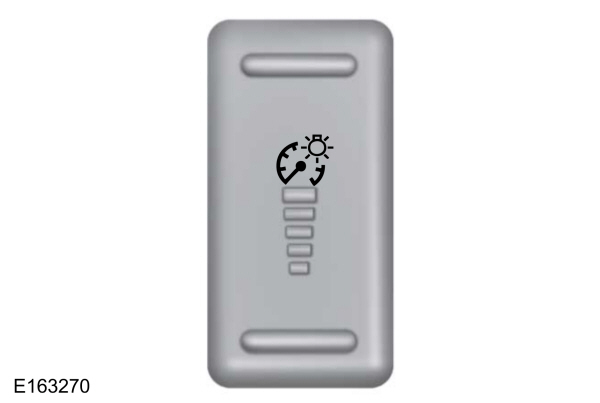

Instrument Lighting Dimmer

Adjust the brightness of the instrument panel and all applicable lit components in the vehicle during headlamp and parking lamp operation.

Tap the top or bottom of the control to brighten or dim all interior lit components incrementally.
Press and hold at the first position the top or bottom of the control until you reach the desired lighting level.
Press and hold the top of the control to the full on position to activate the “dome on” feature. This turns on the interior courtesy lights. The lights remain on until you press the bottom of the control.
