Engine Specifications
| Engine | 6.8L Engine |
|---|---|
| Displacement | 415 in³ (6,800 cm³) |
| Firing order | 1-6-5-10-2-7-3-8-4-9 |
| Ignition system | Coil on plug |
| Spark plug gap | 0.039 in (1 mm) - 0.043 in (1.1 mm) |
| Compression ratio | 9.2:1 |
Drivebelt Routing

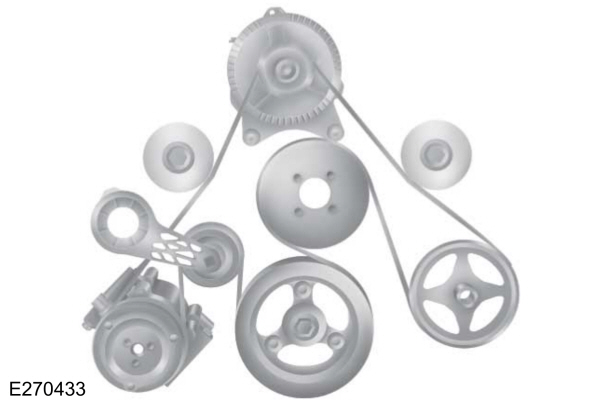

Engines with Air Conditioning

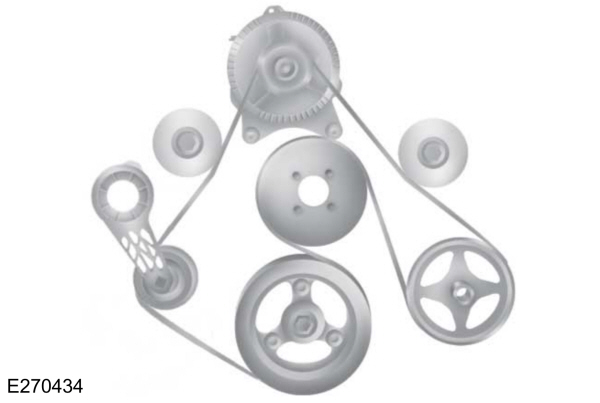

Engines without Air Conditioning
