Gauges

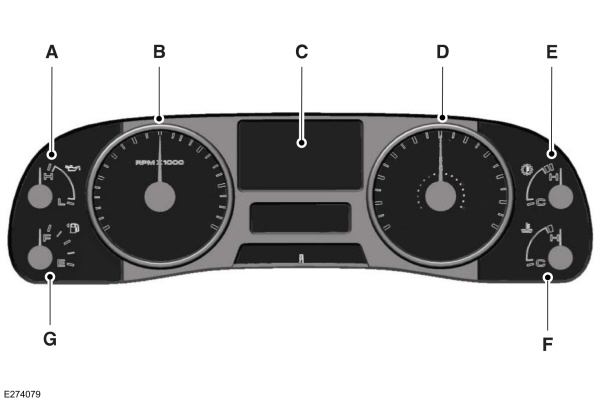

A Engine oil pressure gauge.B Tachometer.C Information display.D Speedometer.E Transmission fluid temperature gauge.F Engine coolant temperature gauge.G Fuel gauge. |
Engine Oil Pressure Gauge
Indicates engine oil pressure. At normal operating temperature, the level indicator is in the normal range. If the pressure gauge falls below the normal range, stop your vehicle, switch off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked by an authorized dealer.
Speedometer
Indicates vehicle speed. Vehicle speed is limited to either
65 mph (105 km/h) or
75 mph (120 km/h).
Transmission Fluid Temperature Gauge
Normal area
The transmission fluid is within the normal operating temperature (between H and C).
Yellow area
The transmission fluid is higher than normal operating temperature. This can be caused by special operation conditions (snowplowing, towing or off-road use).
To lower the transmission temperature into the normal range, alter the severity of your driving conditions. Operating the transmission for extended periods with the gauge in the higher than normal area may cause internal transmission damage. If the gauge continues to show high temperatures, see an authorized dealer.
Red area
The transmission fluid is overheating. Stop the vehicle to allow the temperature to return to normal range.
If the gauge is operating in the yellow or red area, stop the vehicle and verify the airflow is not restricted such as snow or debris blocking airflow through the grille. If the gauge continues to show high temperatures, see your authorized dealer.
Engine Coolant Temperature Gauge
WARNING:
Do not remove the coolant reservoir cap when the cooling system is hot. Wait 10 minutes for the cooling system to cool down. Cover the coolant reservoir cap with a thick cloth to prevent the possibility of scalding and slowly remove the cap. Failure to follow this instruction could result in personal injury. |
Indicates engine coolant temperature. At normal operating temperature, the level indicator is in the normal range. If the engine coolant temperature exceeds the normal range, stop your vehicle as soon as possible, switch off the engine and let the engine cool.
Fuel Gauge
The fuel gauge indicates about how much fuel is in the fuel tank.
The arrow adjacent to the fuel pump symbol indicates on which side of your vehicle the fuel filler door is located.
Note:
The fuel gauge may vary slightly when your vehicle is moving or on a slope.
Low Fuel Reminder
A low fuel level reminder displays and sounds when the distance to empty reaches
50 mi (80 km),
25 mi (40 km),
10 mi (20 km) and
mi (0 km).
Note:
The low fuel reminder can appear at different fuel gauge positions depending on fuel economy conditions. This variation is normal.
