General Information
WARNING:
Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving. |

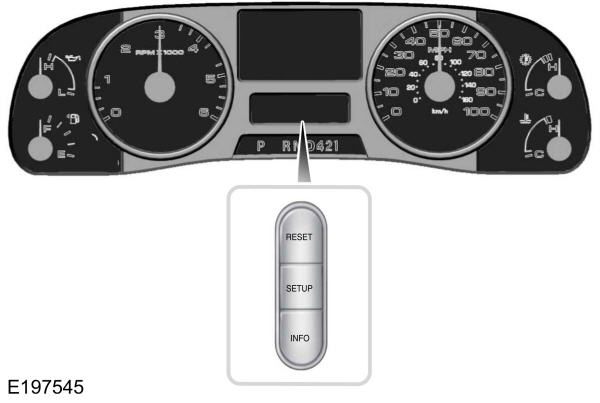

You can control various systems on your vehicle using the information display controls on the steering wheel. The information display shows the corresponding information.
Information Display Controls

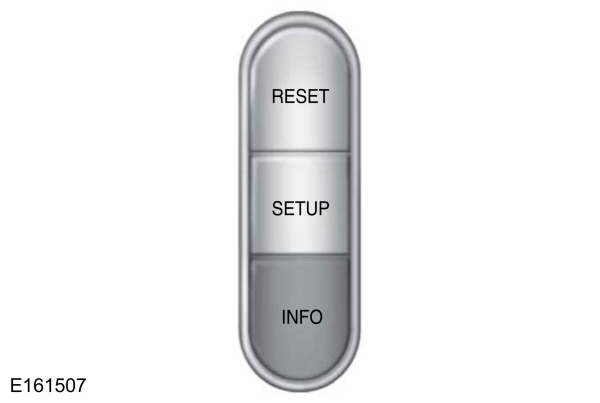

- Press the info button to scroll through trip, outside air temperature, engine hours and miles to empty.

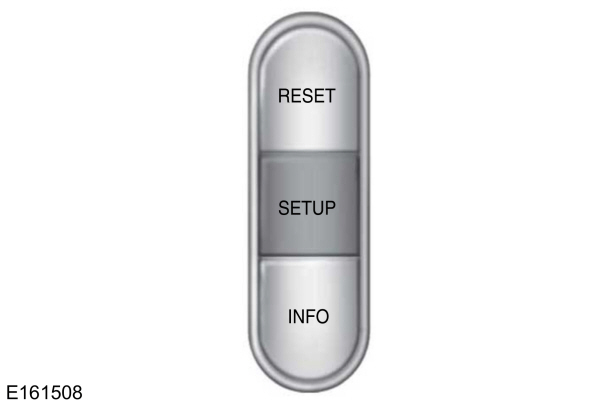

- Press the setup button to scroll through various vehicle feature settings.
- Press the reset button to choose settings, reset information and confirm messages.
Info
Press the INFO button repeatedly to cycle through the following features:
TRIP
Registers the distance of individual journeys. Press and release the INFO button until the TRIP appears in the display. Press and hold the RESET button to reset
XXX° (outside air temperature)
This displays the outside temperature.
MILES (km) TO E
This displays an estimate of approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel.
The DTE function will display a message in the information display when you have approximately
50 mi (80 km) to empty. Press RESET to clear this warning message. It will return at approximately
25 mi (40 km),
10 mi (16 km) and
mi (0 km) miles to empty.
DTE calculates using a running average fuel economy based on your recent driving history of
500 mi (800 km).
ENG HRS
Registers the accumulated time the engine has been running.
System check and vehicle feature customization
Press the SETUP button repeatedly to cycle the message center through the following features:
PRESS RESET FOR SYS CHECK
When this message appears, press the RESET button and the message center will begin to cycle through the following systems and provide a status of the item if needed.
Note:
Some systems show a message only if a condition is present
- ENGINE TEMP
- TRANS TEMP
- OIL PRESSURE
- BRAKE FLUID LEVEL
- FUEL LEVEL (if equipped)
UNITS
Displays the current units English or Metric.
Press the RESET button to change from English to Metric.
ENGLISH RESET FOR NEW
Allows you to choose which language the message center will display in. Selectable languages are English, Spanish, or French.
Press the RESET button to cycle the message center through English, Spanish and French language choices. Press and hold the RESET button for two seconds to set the language choice.
Note:
When you select a non-English language, a HOLD RESET FOR ENGLISH message displays when you return to the SETUP menu. Press and hold the RESET button to change back to English.
