Gauges

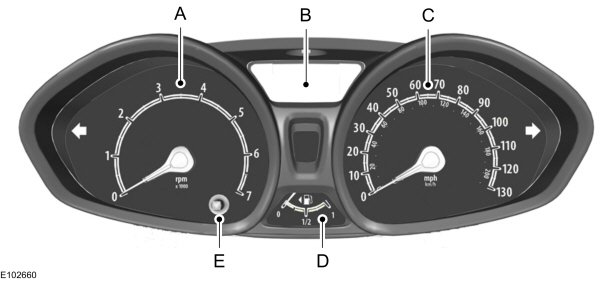

A Tachometer B Information display and engine coolant temperature gaugeC SpeedometerD Fuel gaugeE Tripmeter reset button |
Engine Coolant Temperature Gauge
Displays the temperature of the engine coolant. At normal operating temperature the indicator will remain in the center section.
Fuel Gauge
Switch the ignition on.The fuel gauge will indicate approximately how much fuel is left in the fuel tank.The fuel gauge may vary slightly when your vehicle is moving or on a gradient. The arrow adjacent to the fuel pump symbol indicates on which side of your vehicle the fuel filler door is located.
Low Fuel Reminder
Vehicles with Trip Computer
A low fuel level reminder displays and a tone sounds when the distance to empty reaches
120 km (75 mi) for MyKey and
80 km (50 mi) for all other keys.
Note:
The low fuel reminder can appear at different fuel gauge positions depending on fuel economy conditions. This variation is normal.
Vehicles without Trip Computer
A low fuel level reminder displays and a tone sounds when the fuel gauge needle is at 1/8th for MyKey and 1/16th for all other keys.
